Teltonika TRB501 – Industrial 5G Gateway

The Teltonika TRB501 is a compact, industrial-grade 5G gateway engineered for businesses and industries that demand reliability, speed, and seamless integration with mission-critical systems. Designed with a 3GPP Release 16 modem, a 2.5 Gbps Ethernet backhaul, and built-in support for SCADA and industrial protocols (Modbus, DNP3, DLMS), the TRB501 provides the connectivity backbone for next-generation utilities, automation, and critical infrastructure projects.

Its rugged aluminium housing, extended temperature tolerance, and low power consumption make it a perfect fit for harsh environments, remote deployments, and energy-conscious operations. Whether used in smart grids, industrial automation, mining, or healthcare, the TRB501 delivers secure, low-latency connectivity that keeps businesses online and in control.

Key Benefits

• Ultra-fast 5G connectivity – Release 16 modem with SA/NSA and carrier aggregation for peak performance.
• 2.5 Gbps Ethernet port – Supports high-capacity backhaul, ideal for heavy data streams and SCADA integration.
• Industrial protocols – Modbus, DNP3, and DLMS support for direct connection to SCADA, smart grid, and telemetry systems.
• Secure & reliable – Full VPN suite, firewall control, VLANs, and advanced routing ensure security and flexibility.
• Rugged & efficient – Operates from −40 °C to +75 °C, with a durable aluminium chassis and peak consumption under 6 W.
• Remote management – Fully compatible with Teltonika RMS for fleet-wide monitoring, configuration, and firmware updates.

Technical Specifications

• Processor: ARM Cortex-A7, 1.5 GHz
• Memory: 256 MB RAM, 512 MB Flash (200 MB user space)
• Cellular: 5G NR Sub-6 GHz (Release 16), LTE Cat 20 fallback, 3G support
• Ethernet: 1 × 2.5 Gbps RJ45 port
• SIM: 1 × Mini-SIM (2FF)
• I/O: 2 × configurable digital I/O
• VPN & Security: OpenVPN, IPsec, WireGuard, GRE, DMVPN, ZeroTier, firewall, VLAN, QoS
• Routing: BGP, OSPF, RIP, policy-based routing
• Enclosure: Aluminium, IP30
• Power Input: 9–30 V DC, <6 W peak

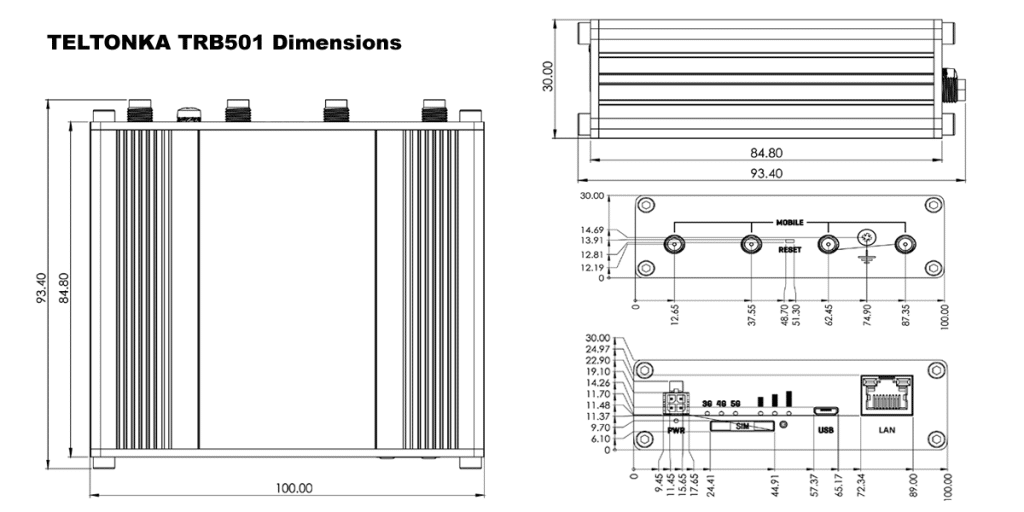

• Dimensions: 100 × 30 × 93.4 mm
• Weight: ~241 g
• Operating Temperature: −40 °C to +75 °C

Applications

• Smart Grids & Utilities – connect substations, smart meters, and renewable energy sites.
• Industrial Automation – monitor and control PLCs, production lines, and process equipment.
• Remote Machinery – enable low-latency robotics and remote operation of heavy equipment.
• Critical Infrastructure – ensure uptime in healthcare, energy, and transport networks.
• Harsh Environments – mining, oil, and chemical plants where reliability is critical.

Teltonika TRB501 FAQ

Does the TRB501 support eSIM?
No. The TRB501 uses a single Mini-SIM (2FF) slot for physical SIM cards. For eSIM capability, consider Teltonika models such as RUT241-eSIM, RUTM30 or RUTM54.

What SIM cards are recommended?
Industrial-grade roaming or multi-network IoT SIM cards are recommended for maximum uptime and coverage.

What makes the TRB501 different from the TRB500?
The TRB501 adds a 2.5 Gbps Ethernet port, a Release 16 5G modem, and native SCADA protocol support, making it better suited for utilities and industrial automation.

Is the TRB501 suitable for SCADA systems?
Yes. With Modbus, DNP3, and DLMS support, it integrates directly with SCADA and telemetry systems.

What is the operating range?
It operates continuously from −40 °C to +75 °C in demanding industrial environments.

Can the TRB501 be managed remotely?
Yes. It is fully compatible with Teltonika RMS for configuration, monitoring, and firmware management.

Antennas for the TRB501

The TRB501 is supplied with 4 x 5G paddle antennas, however, in many installations an alternative antenna may be required – at the Router Store we stock a wide range of 4×4 MiMo 5G Antennas including the Teltonika PR1KC647 roof/panel mount antennas.
