Panorama 4G Antennas
The 4G Antenna range from Panorama include high quality, high performance cellular antennas for connection to 4G routers include indoor and outdoor directional and omni directional 4G antennas. The majority of these antennas are also 5G compatible so you may see them listed in the 5G antenna section.
Panorama 4G Antenna
Showing all 12 results
-
4G Antennas, 5G Antennas, Omni-Directional 4G Antennas, Omni-Directional 5G Antennas, Panorama 4G Antenna, Panorama Antennas, Screw / Panel Mount 4G Antennas, Screw / Panel Mount 5G Antennas
Panorama LPP-7-38-3SP Low Profile 5G/4G/3G/2G PUCK Antenna – 3m RG174 with SMA Male 2dBi Peak Gain
4G Antennas, 5G Antennas, Omni-Directional 4G Antennas, Omni-Directional 5G Antennas, Panorama 4G Antenna, Panorama Antennas, Screw / Panel Mount 4G Antennas, Screw / Panel Mount 5G AntennasPanorama LPP-7-38-3SP Low Profile 5G/4G/3G/2G PUCK Antenna – 3m RG174 with SMA Male 2dBi Peak Gain
LPP-7-38-3SP – Product Features
- For installation without a ground plane
- Wideband 4G/5G LTE element
- 2.4 & 4.9-6 GHz WiFi/WiMAX element (Optional)
- Integrated GPS antenna (Optional)
- 2dBi Peak Gain
- LPP-7-38-3SP version is pre-terminated with 3m long flame retardant RG174 cable with SMA Male connector
SKU: PANORAMA-LPP-7-38-3SP-N -
4G Antennas, 4x4 MiMo 5G Antennas, 5G Antennas, Omni-Directional 5G Antennas, Panorama 4G Antenna, Panorama Antennas
Panorama WMM4-7-49-5SP 4×4 MiMo Wall / Mast Mount Antenna (4G/5G)
4G Antennas, 4x4 MiMo 5G Antennas, 5G Antennas, Omni-Directional 5G Antennas, Panorama 4G Antenna, Panorama AntennasPanorama WMM4-7-49-5SP 4×4 MiMo Wall / Mast Mount Antenna (4G/5G)
Panorama WMM4-7-49-5SP
- 4×4 MiMo 4G/5G – 698-960/1710-4900MHz
- Compact housing
- Wall or mast mounting
- Integrated low loss coaxial cable
This model (WMM4-7-49-5SP) is supplied pre-terminated with 4 x 5m long low loss cables with SMA Male connectors to screw directly to the 4 x antenna ports of your 5G router (most industrial style 5G routers have SMA connectors – if your router has the small puch-in TS9 connectors then you will need TS9 to SMA adapters)
SKU: WMM4-7-49-5SP -
4G Antennas, Panorama 4G Antenna, Panorama Antennas
Panorama DMM-7-38-2SP 4G Antenna with 2m cable, 2×2 MiMo with 2 x SMA Male
4G Antennas, Panorama 4G Antenna, Panorama AntennasPanorama DMM-7-38-2SP 4G Antenna with 2m cable, 2×2 MiMo with 2 x SMA Male
Panorama DMM-7-38-2SP
- Frequency Range: 698-960 MHz / 1710-2700 MHz / 3400-3800 MHz
- Peak Gain: 2-5 dBi (depending on frequency)
- Polarization: Vertical
- Radiation Pattern: Omni-directional
- Connector Type: SMA Male
- Cable Length: 2 meters
- Dimensions: 145 x 134 x 10 mm
- Mounting: Desk or window mount
- Operating Temperature: -40°C to +80°C
NOTE : This is the older 4G only version – We recommend for future proofing that you upgrade to the DMM-6-60-2SP which supports all UK 4G and 5G frequencies
SKU: DMM-7-38-2SP -
4G Antennas, 5G Antennas, Connector Mount 4G Antennas, Connector Mount 5G Antennas, Omni-Directional 4G Antennas, Omni-Directional 5G Antennas, Panorama 4G Antenna, Panorama Antennas
Panorama PWB-BC3G-38-RSMAP 4G/5G Paddle Antenna
4G Antennas, 5G Antennas, Connector Mount 4G Antennas, Connector Mount 5G Antennas, Omni-Directional 4G Antennas, Omni-Directional 5G Antennas, Panorama 4G Antenna, Panorama AntennasPanorama PWB-BC3G-38-RSMAP 4G/5G Paddle Antenna
Panorama Antennas PWB-BC3G-38-RSMAP 5G antenna for use with 4G and 5G routers. This paddle design 5G antenna provides a high quality solution for connecting directly to cellular terminals and routers. SMA male connection suits most router brands. 5dBi Peak Gain between 3400-3800MHz.
SKU: PANORAMA-PWB-BC3G-38-RSMAP-N -
2x2 MiMo 5G Antennas, 5G Antennas, Omni-Directional 5G Antennas, Panorama 4G Antenna, Panorama Antennas

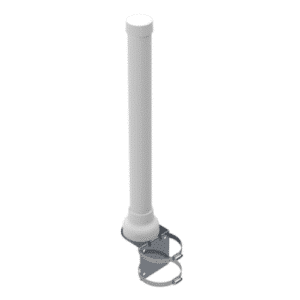

Panorama BSM-6-60-5SP 2×2 MIMO 5G/4G LTE Base Station Antenna 5dBi Peak Gain 2 x 5m cables
2x2 MiMo 5G Antennas, 5G Antennas, Omni-Directional 5G Antennas, Panorama 4G Antenna, Panorama AntennasPanorama BSM-6-60-5SP 2×2 MIMO 5G/4G LTE Base Station Antenna 5dBi Peak Gain 2 x 5m cables
The BSM-6-60 antenna is a MiMo Omni-directional broadband antenna range for 4G/5G devices. This antenna is the BSM-6-60-5SP version which is supplied with 2 x 5m long low loss cables with SMA Male connectors suitable for use with the majority of 4G and 5G routers.
It covers 617-960/1427-6000MHz and is suitable for external or internal installation. The mounting bracket enables simple wall mounting using the supplied screws and wall plugs and mast/rail mounting using the supplied clamps.
BSM-6-60-5SP Key Features
- 2×2 MiMo 4G/5G antenna solution
- Wall, rail, or mast mount
- Optional GPS/GNSS – 26dB LNA
- Integrated coaxial cables, 5m long with SMA Male
SKU: PANORAMA-BSM-6-60-5SP-N -
4G Antennas, 4G CCTV, 5G Antennas, 5G CCTV, Magnetic Mount 4G Antennas, Magnetic Mount 5G Antennas, Omni-Directional 5G Antennas, Panorama 4G Antenna, Panorama Antennas
LPBEM-6-60-2SP Low Profile Magnetic Mount 4G / 5G Antenna 8dBi Peak Gain – 2m cable
4G Antennas, 4G CCTV, 5G Antennas, 5G CCTV, Magnetic Mount 4G Antennas, Magnetic Mount 5G Antennas, Omni-Directional 5G Antennas, Panorama 4G Antenna, Panorama AntennasLPBEM-6-60-2SP Low Profile Magnetic Mount 4G / 5G Antenna 8dBi Peak Gain – 2m cable
Panorama LPBEM-6-60-2SP 5G Antenna
- Magnetic Mounted, Robust Build
- 8dBi Peak Gain
- Fitted with 2m cable (RG174) with SMA Male
SKU: PANORAMA-LPBEM-6-60-2SP-N -
4G Antennas, 4G CCTV, 5G Antennas, 5G CCTV, Magnetic Mount 4G Antennas, Magnetic Mount 5G Antennas, Omni-Directional 5G Antennas, Panorama 4G Antenna, Panorama Antennas
LPBEM-6-60-5SP Low Profile Magnetic Mount 4G / 5G Antenna 8dBi Peak Gain
4G Antennas, 4G CCTV, 5G Antennas, 5G CCTV, Magnetic Mount 4G Antennas, Magnetic Mount 5G Antennas, Omni-Directional 5G Antennas, Panorama 4G Antenna, Panorama AntennasLPBEM-6-60-5SP Low Profile Magnetic Mount 4G / 5G Antenna 8dBi Peak Gain
Panorama LPBEM-6-60-5SP 5G Antenna
- Magnetic Mounted, Robust Build
- 8dBi Peak Gain
- Fitted with 5m cable (RG174) with SMA Male
SKU: PANORAMA-LPBEM-6-60-5SP-N -
4G Antennas, 5G Antennas, Omni-Directional 4G Antennas, Omni-Directional 5G Antennas, Panorama 4G Antenna, Panorama Antennas, Screw / Panel Mount 4G Antennas, Screw / Panel Mount 5G Antennas
B4BE-6-60-5SP Bracket Mounted 4G / 5G Antenna 5dBi Peak Gain – 0.5m cable
4G Antennas, 5G Antennas, Omni-Directional 4G Antennas, Omni-Directional 5G Antennas, Panorama 4G Antenna, Panorama Antennas, Screw / Panel Mount 4G Antennas, Screw / Panel Mount 5G AntennasB4BE-6-60-5SP Bracket Mounted 4G / 5G Antenna 5dBi Peak Gain – 0.5m cable
Panorama B4BE-6-60-05SP is a bracket mounted* / hole mounted, high gain 4G / 5G antenna with 5dBi Peak Gain and pre-terminated with 0.5m long cable with SMA Male antenna connection.
Ideal for using in pairs with 4G and 5G routers for discreet wall mounting or hole mounted on a kiosk or similar.
This is the version pre-terminated with 0.5m long cable with SMA Male connector – if you need a shorter cable we stock this antenna with a longer 5m cable with SMA Male – B4BE-6-60-5SP
*Includes Wall Bracket
SKU: PANORAMA-B4BE-6-60-05SP-N -
4G Antennas, 5G Antennas, Omni-Directional 4G Antennas, Omni-Directional 5G Antennas, Panorama 4G Antenna, Panorama Antennas, Screw / Panel Mount 4G Antennas, Screw / Panel Mount 5G Antennas
B4BE-6-60-5SP Bracket Mounted 4G / 5G Antenna 5dBi Peak Gain – 5m cable
4G Antennas, 5G Antennas, Omni-Directional 4G Antennas, Omni-Directional 5G Antennas, Panorama 4G Antenna, Panorama Antennas, Screw / Panel Mount 4G Antennas, Screw / Panel Mount 5G AntennasB4BE-6-60-5SP Bracket Mounted 4G / 5G Antenna 5dBi Peak Gain – 5m cable
Panorama B4BE-6-60-5SP is a bracket mounted* / hole mounted, high gain 4G / 5G antenna with 5dBi Peak Gain and pre-terminated with 5m long cable with SMA Male antenna connection.
Ideal for using in pairs with 4G and 5G routers for discreet wall mounting or hole mounted on a kiosk or similar.
This is the version pre-terminated with 5m long cable with SMA Male connector – if you need a shorter cable we stock this antenna with 0.5m cable with SMA Male – B4BE-6-60-05SP
*Includes Wall Bracket
SKU: PANORAMA-B4BE-6-60-5SP-N -
2x2 MiMo 5G Antennas, 4G Antennas, 5G Antennas, Omni-Directional 4G Antennas, Panorama 4G Antenna, Panorama Antennas, Vehicle 4G Antennas, Vehicle 5G Antennas
Panorama SHK-7-27 2G/3G/4G/5G Shark Fin Vehicle Antenna
2x2 MiMo 5G Antennas, 4G Antennas, 5G Antennas, Omni-Directional 4G Antennas, Panorama 4G Antenna, Panorama Antennas, Vehicle 4G Antennas, Vehicle 5G AntennasPanorama SHK-7-27 2G/3G/4G/5G Shark Fin Vehicle Antenna
Panorama SHK-7-27
Panorama Shark Fin Vehicle 5G Antenna is a 2×2 MiMo 4G/5G roof mounted antenna designed to provide reliable, high performance 4G and 5G signal reception when used with a compatible 4G or 5G router for vehicles.
SKU: PANORAMA-SHK-7-27-N -
4G Antennas, 4x4 MiMo 5G Antennas, 5G Antennas, Omni-Directional 5G Antennas, Panorama 4G Antenna, Panorama Antennas, Vehicle 4G Antennas, Vehicle 5G Antennas

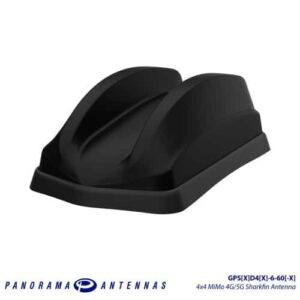

GPSD4-6-60 4G / 5G Shark Fin Antenna 4×4 MiMo
4G Antennas, 4x4 MiMo 5G Antennas, 5G Antennas, Omni-Directional 5G Antennas, Panorama 4G Antenna, Panorama Antennas, Vehicle 4G Antennas, Vehicle 5G AntennasGPSD4-6-60 4G / 5G Shark Fin Antenna 4×4 MiMo
GPSD4-6-60
Shark Fin Antenna for vehicle mounting providing convenient, high quality, great performance 4×4 MiMo vehicle 5G antenna solution suitable for all 4G and 5G connectivity with options for GPS and WiFi.
SKU: GPSD4-6-60 -
Panorama 4G Antenna, Panorama Antennas

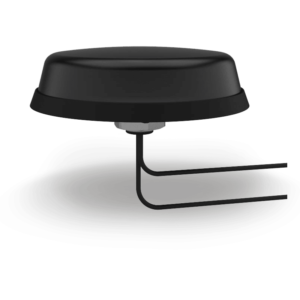

Panorama LPM2-7-27-2SP Low Profile Puck Antenna 2×2 MiMo
LPM2-7-27-2SP | Low Profile MiMo 4G Antenna
The LPM2-7-27 range has been designed to provide MiMo 4G/LTE, coverage in an ultra low profile package. The compact, robust, lowprofile, housing is weatherproof and contains two antenna elements with effective isolation and low correlation coefficient covering 698-960/1427-2700MHz.
SKU: LPM2-7-27-2SP
