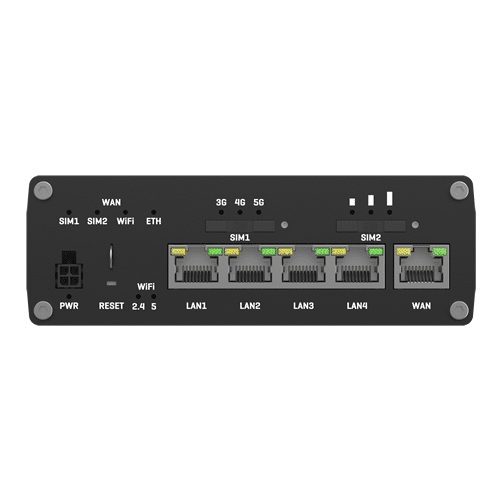

RUTX50 Ethernet Ports

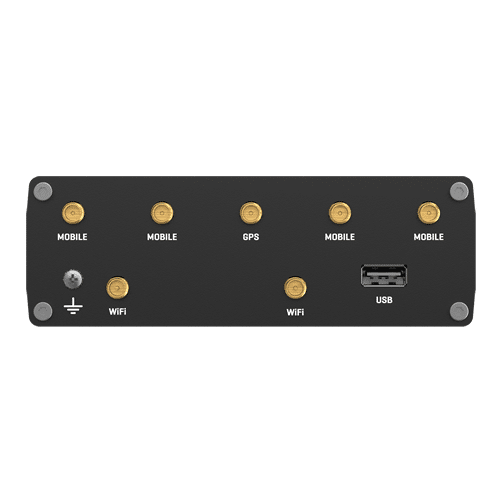

RUTX50 Antenna Connections
Teltonika RUTX50 5G
Teltonika RUTX50 5G Router Black
Teltonika RUTX50 5G
RUTX50 Ethernet Ports
RUTX50 Antenna Connections
, ,

Teltonika RUTX50 Industrial 5G Router

(2 customer reviews)

Teltonika RUTX50

The Teltonika RUTX50 is a high-performance industrial 5G router designed for demanding applications. Featuring dual-SIM support, 5 Gigabit Ethernet ports, and dual-band Wi-Fi, it offers blazing-fast 5G speeds up to 3.3 Gbps. With its rugged design, advanced security features, and compatibility with 4G/3G networks, the RUTX50 provides reliable, future-proof connectivity for industrial IoT, remote monitoring, and data-intensive scenarios

  • High speed Industrial 5G M2M/IoT Router
  • Embedded 5G modem with 4G LTE CAT20
  • Dual SIM Slots (SIM Failover)
  • 4 x Gigabit Ethernet Ports
  • 802.11AC Wave 2 WiFi5

Teltonika Diamond Partner

£359.00 Excl VAT

CALL US to discuss volume pricing 01937 534914
Do you need a Fixed IP SIM Card?

Request A Quote Or Project Pricing

Teltonika RUTX50 Industrial 5G + LTE CAT20 Industrial 5G Router

If you need reliable and secure 5G connectivity, then the RUTX50 Industrial 5G Router is one of the best options available.  Designed for cutting-edge M2M and IoT applications. This robust device offers unparalleled performance for remote access and monitoring in demanding business environments.

Key Features:

Blazing-Fast 5G Speeds: Experience ultra-high cellular speeds up to 3.3 Gbps, enabling real-time data transmission and seamless communication for your IoT ecosystem.

Dual SIM Functionality: Ensure uninterrupted connectivity with auto-failover and load balancing capabilities, critical for mission-critical operations.
Versatile Connectivity: Equipped with 5 Gigabit Ethernet ports and dual-band Wi-Fi 5, supporting up to 150 simultaneous connections for comprehensive network coverage.
Industrial-Grade Durability: Built to withstand harsh environments with its rugged aluminium housing and wide operating temperature range (-40°C to 75°C).
Advanced Security: Protect your sensitive data with multiple VPN protocols, firewall capabilities, and WPA3 encryption.
Future-Proof Technology: Backward compatible with 4G LTE (Cat 20) and 3G networks, ensuring long-term viability for your IoT infrastructure.
Remote Management: Easily monitor and configure your device fleet with Teltonika’s Remote Management System (RMS).
Flexible Integration: Multiple interfaces including USB, GPIO, and serial (RS232/RS485) for seamless integration with various industrial equipment and sensors.
Elevate your IoT and M2M solutions with the Teltonika RUTX50. Its combination of high-speed 5G connectivity, robust security features, and industrial-grade design makes it the ideal choice for businesses seeking reliable, future-proof remote access and monitoring capabilities.

Teltonika RUTX50 is compatible with the RutOS, which provides advanced security features and specialized industrial protocols for a wide range of professional application scenarios, and is compatible with our Remote Management System (RMS), for optimized remote management and monitoring capabilities of large fleets of devices.

RUTX50 Specification

MOBILE
Mobile module 5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4×4 MIMO), 900/600 Mbps UL (2×2); 4G (LTE) – LTE Cat 20 2.0Gbps DL, 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL
Status Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received, connected band, IMSI, ICCID.
SMS/Call SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, Call utilities
USSD Supports sending and reading Unstructured Supplementary Service Data messages
Black/White list Operator black/white list
Band management Band lock, Used band status display
APN Auto APN
Bridge mode Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Gateway assigns its mobile WAN IP address to another device on LAN
Multiple PDN Possibility to use different PDNs for multiple network access and services
WIRELESS
Wireless mode 802.11b/g/n/ac Wave 2 (WiFi 5) with data transmission rates of up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
WiFi security WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation
ESSID ESSID stealth mode
WiFi users Up to 150 simultaneous connections
Wireless Hotspot Captive portal (Hotspot), internal/external Radius server, built-in customizable landing page
Wireless mesh/roaming Wireless mesh (802.11s), fast roaming (802.11r)
ETHERNET
WAN 1 x WAN port (can be configured as LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN 4 x RJ45 port, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
NETWORK
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, PPPoE, SSH, DHCP, SNMP, MQTT, Wake on LAN (WOL)
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP)
Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forwards, traffic rules, custom rules
DHCP Static and dynamic IP allocation
DDNS Supported >25 service providers, others can be configured manually
SSHFS Possibility to mount remote file system via SSH protocol
SECURITY
Authentication Pre-shared key, digital certificates, X.509 certificates
Firewall Pre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI; NAT; NAT-T
Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port and tag-based VLAN separation
Mobile quota control Set up custom data limits for SIM card
WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter
VPN
OpenVPN Multiple clients and a server can run simultaneously, 12 encryption methods
OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
GRE GRE tunnel
IPsec IKEv1, IKEv2, supports up to 5 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)
SSTP SSTP client instance support
STUNNEL Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN Method of building scalable IPsec VPNs
PPTP, L2TP Client/Server services can run simultaneously, L2TPv3 support
WireGuard WireGuard VPN client and server support
ZeroTier ZeroTier VPN
MODBUS TCP SLAVE
ID filtering Respond to one ID in range [1;255] or any
Allow remote access Allow access through WAN
Custom registers MODBUS TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend MODBUS TCP slave functionality
MODBUS TCP MASTER
Supported functions 01, 02, 03, 04, 05, 06, 15, 16
Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
MQTT GATEWAY
Gateway Allows sending commands and receiving data from MODBUS Master through the MQTT broker
DNP3
Supported modes TCP Master, DNP3 Outstation
DATA TO SERVER
Protocols HTTP(S), MQTT, Azure MQTT, Kinesis
IoT PLATFORMS
Clouds of things Allows monitoring of: Device data, Mobile data, Network info, Availability
ThingWorx Allows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP
Azure IoT Hub Can send device IP, Number of bytes send/received/ 3G connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, Sim State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server
MONITORING & MANAGEMENT
WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
CALL Reboot, Status, Mobile data on/off, Output on/off
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP trap
JSON-RPC Management API over HTTP/HTTPS
MODBUS MODBUS TCP status/control
RMS Teltonika Remote Management System (Buy Teltonika RMS Credits)
SYSTEM CHARACTERISTICS
CPU Quad-core ARM Cortex A7, 717 MHz
RAM 256 MB (100 MB available for userspace)
FLASH storage 256 MB (80 MB available for userspace)
FIRMWARE / CONFIGURATION
WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA Update FW
RMS Update FW/configuration for multiple devices at once
Keep settings Update FW without losing current configuration
FIRMWARE CUSTOMIZATION
Operating system RutOS (OpenWrt based Linux OS)
Supported languages Busybox shell, Lua, C, C++
Development tools SDK package with build environment provided
LOCATION TRACKING
GNSS GPS, GLONASS, BeiDou, Galileo and QZSS
Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA NMEA 0183
Server software Supports server software: TAVL, RMS
Geofencing Multiple configurable geofence zones
USB
Data rate USB 2.0
Applications Samba share, USB-to-serial, Modbus gateway
External devices Possibility to connect external HDD, flash drive, additional modem, printer
Storage formats FAT, FAT32, NTFS
INPUT/OUTPUT
Input 1 x Digital Input, 0 – 6 V detected as logic low, 8 – 30 V detected as logic high
Output 1 x Digital Output, Open collector output, max output 30 V, 300 mA
Events SMS, Email, RMS
I/O juggler Allows setting certain I/O conditions to initiate event
POWER
Connector 4-pin industrial DC power socket
Input voltage range 9 – 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max
PoE (passive) Mode B, LAN1 Port, 9 – 50 VDC
Power consumption Idle: <4 W, Max: <18 W
PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)
Ethernet 5 x RJ45 ports, 10/100/1000 Mbps
I/Os 1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs 3 x connection status LEDs, 3 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1x Power LED, 2 x 2.4G and 5G WiFi LEDs
SIM 2 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
Power 1 x 4-pin DC power connector
Antennas 4 x SMA for Mobile, 2 x RP-SMA for WiFi, 1 x SMA for GNSS
USB 1 x USB A port for external devices
Reset Reboot/User default reset/Factory reset button
Other 1 x Grounding screw
PHYSICAL SPECIFICATION
Casing material Aluminum housing
Dimensions (W x H x D) 132 x 44.2 x 95.1 mm
Weight 533 g
Mounting options DIN rail (can be mounted on two sides), flat surface placement
RUTX50 OPERATING ENVIRONMENT
Operating temperature -40 °C to 75 °C
Operating humidity 10 % to 90 % non-condensing
Ingress Protection Rating IP30

RUTX50 STANDARD PACKAGE CONTAINS

  • RUTX50 5G Router
  • 18 W PSU
  • 4 x Mobile antennas (swivel, SMA male)
  • 2 x WiFi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
  • 1 x GNSS antenna (adhesive, SMA male, 3 m cable)
  • Ethernet cable (1.5 m)
  • SIM Adapter kit
  • QSG (Quick Start Guide) / RMS Flyer
  • Packaging box

STANDARD ORDER CODES

Product code HS code HTS code Package contains
RUTX50 000000 851762 8517.62.00 Standard package

For more information on all available packaging options – please contact us directly.

AVAILABLE VERSIONS

Product code Region (operator) Frequency
RUTX50 0***** Europe1, the Middle East, Africa, Oceania, Brazil
  • 5G NR NSA: n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78
  • 5G NR SA: n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78
  • 4G (LTE-FDD): B1, B3, B5, B7, B8, B20, B28
  • 4G (LTE-TDD): B38, B40, B41, B42, B43
  • 3G: B1, B5, B8

The price and lead-times for region (operator) specific versions may vary. For more information please contact us.

1 – Regional availability – excluding Russia & Belarus.
