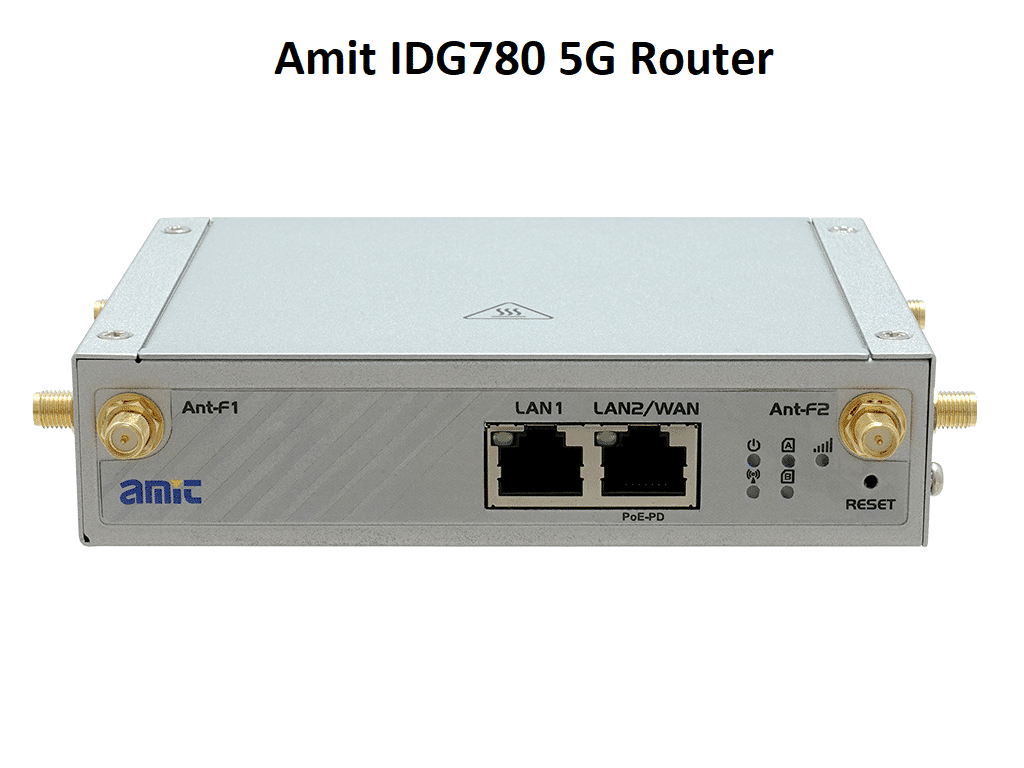

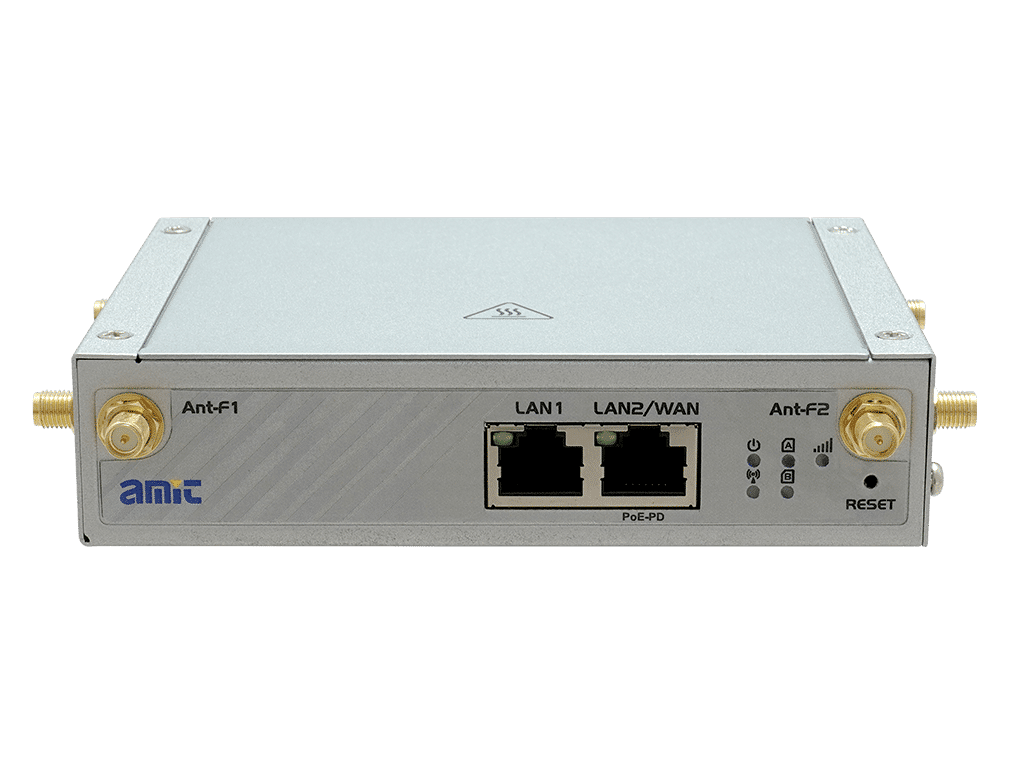

Amit IDG780 Industrial 5G Router

The IDG780 Industrial M2M IoT 5G Router has various interfaces include 5G-NR Cellular, Giga-Ethernet and WiFi uplink to provide internet connectivity. It provides the capability of WAN extender and can handle different networking interfaces to have a robust connection for end devices. Alongside DC 9-36V power in, it also has a PoE-PD input on configurable WAN port to make user deploying  network topology more flexible. The IDG780 routers Industrial design allows it to be deployed in a wide range of environmentst. 5G-NR cellular helps the device to replace original Giga-level fixed line and make it can deploy everywhere.  The Amit IDG780 M2M router provides a reliable, secure and convenient solution for the provision of high speed 5G mobile broadband Internet connectivity for many remote monitoring and management applications.

Key Features

• Dual SIM 5G/LTE
• 1 x RJ45 (cfg) Ethernet -WAN
• 1(2) x GE Ethernet-LAN
• 1 x Ethernet (PoE-PD) on WAN port
• 1 x 2.4G WiFi
• 1 x Micro-SD
• Metal Housing & DIN Rail
• TB 9~36V, -30°C ~ 60°C

Amit IDG780 Technical Specification

Device Interface

• LTE Module: 1*5G/LTE, 2*SIM(3FF)
• Ethernet : 1(2)*RJ45 GE
• WiFi: 1*2×2 2,4G 802.11 b/g/n
• Storage: 1*Micro-SD

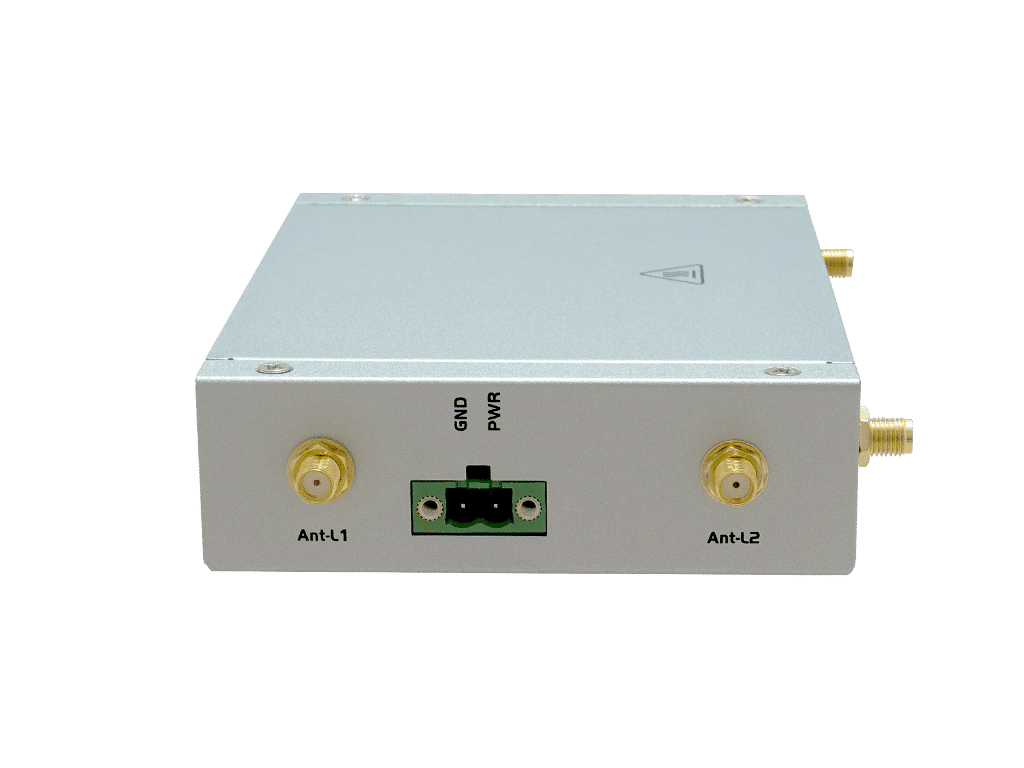

• Power Input : 1* DC 9V ~ 36V (Terminal Block) or PoE-PD

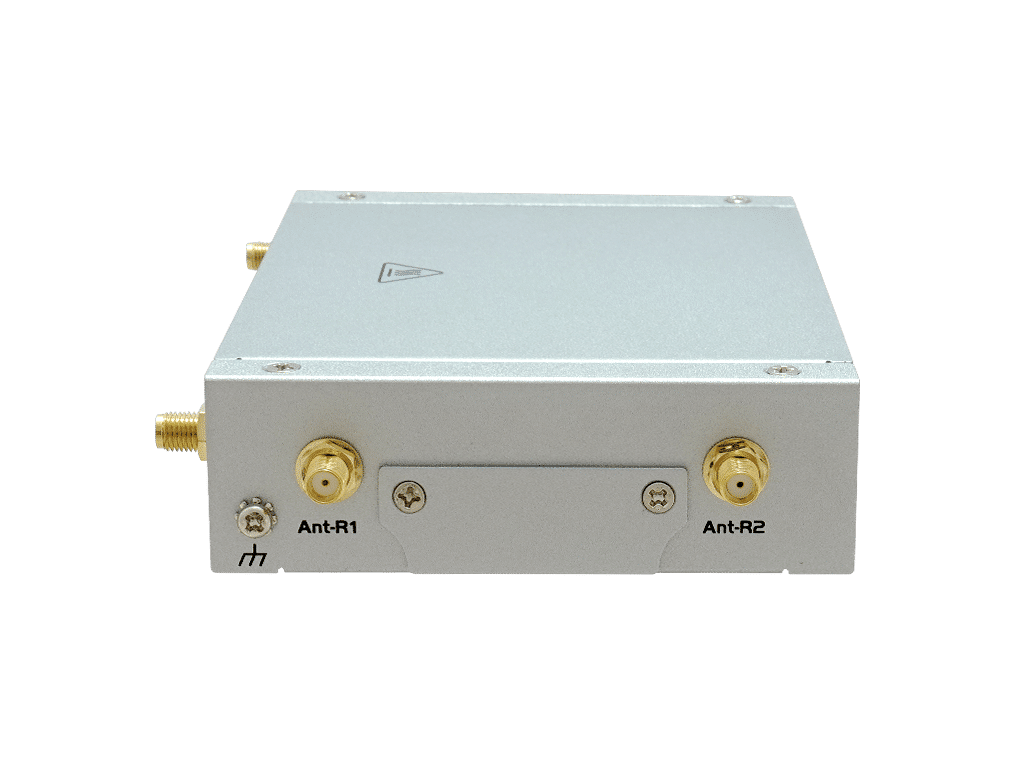

• Antenna Con.: 4*SMA (F)-5G/LTE, 2*SMA(RP-F)-WiFi

WAN & Uplink

• WAN: 1*Cellular & Config. Ether-WAN, 1* config. 11n WiFi;  Failover
• Cellular: 5G/LTE, IP Pass-through, IPv4/6
• Ether-WAN: Dynamic IP, Static IP, PPPoE , PPTP, L2TP
• Network Monitor: ICMP/DNS Query

WiFi

• Standard: 802.11 Industry Compliance
• Mode: AP Router, WDS, WDS Hybrid Modes
• Functions: Multi-SSID, WMM
• Security: WEP, WPA2,WPA3

Protocol

• LAN & VLAN: DHCP Server/Relay , Port/Tag based VLAN
• IPv6: Dual Stack, Static IPv6, DHCPv6, PPPoEv6
• Port Forward: NAT  1-1, 1-many,  DMZ, Virtual Server & Computer, VPN Pass-through
• Routing: Static, Dynamic – RIP1/RIP2

Object

• Scheduling: Time Schedule List
• Grouping: Host Grouping List
• Ext. Server: Email, Syslog, RADIUS, SCEP, FTP, DDNS, IGMP
• Certificate: My Certificate, Trusted Certificate, Issue Certificate

Security

• VPN Tunneling: IPSec, OpenVPN, PPTP, L2TP, GRE
• Scenario: Site/Host , Client
• VPN Capability: DMVPN , Full Tunnel
• Firewall*: SPI Firewall with Stealth Mode, IPS
• Access Control*: Packet Filter, URL Blocking, MAC Filter

Administration

• Configuration: Web UI, CLI, Command Script
• Management: SNMPv3 Std. & AMIT MIB , TR-069
• System: Upgrade, Backup & Restore, Reboot & Reset, SysLog
• Diagnostic: Packet Analyzer, Diagnostic Tools

Service

• Cellular Toolkit: Data Usage, SMS, SIM PIN, Network Scan
• SMS Management: WAN Connection control and notify by SMS
• Network Service: Dynamic DNS ,Time Sync
• Scheduling :  System Reboot , Function On / Off

Environment

• OP/Store Temp.:       -30°C ~ 60°C ;  -40°C ~ 85°C
• Humidity:        10%~95% (non-condensing)
• Enclosure:       Metal, Bracket
• Dimension:     131x100x30mm (w/o mounting kit), 167x100x39mm (with mounting kit)

Certificate – CE

• Standards & Regulation
• EMI: EN 55032: 2015 AC: 2016 Class B, EN61000-3/-6
• EMS: EN 55024, IEC 61000, EN61000-6
• Radio: EN 301 489, EN 300 328
• Safety: EN 60950-1, EN 62368-1

Package Accessory

• 1*Device
• 4*Cellular Antenna (3dBi), 2*WiFi  Antenna
• 1*Power Adapter DC 12V/2.5A
• 1*2 Pins Terminal Block
• 1*DIN Rail Kit, 1*Screw Bag
• 1*RJ45 Cable
• 4*Rubber feet
