Fullband FB5GD11 Directional 5G Antenna

FB5GD11 – Directional YAGI Antenna

Fullband 5G Directional YAGI Antenna – 11 dBi Peak Gain

Supports all 3G, 4G and 5G Cellular mobile network frequencies.

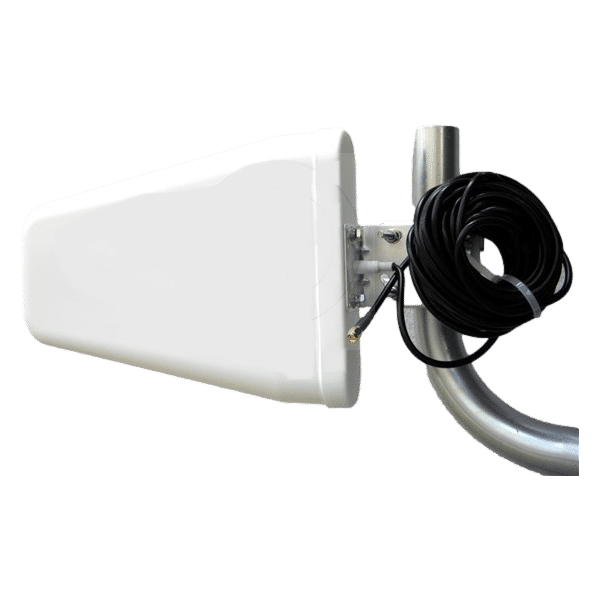

Supplied pre-terminated with 10m cable with SMA male connector.

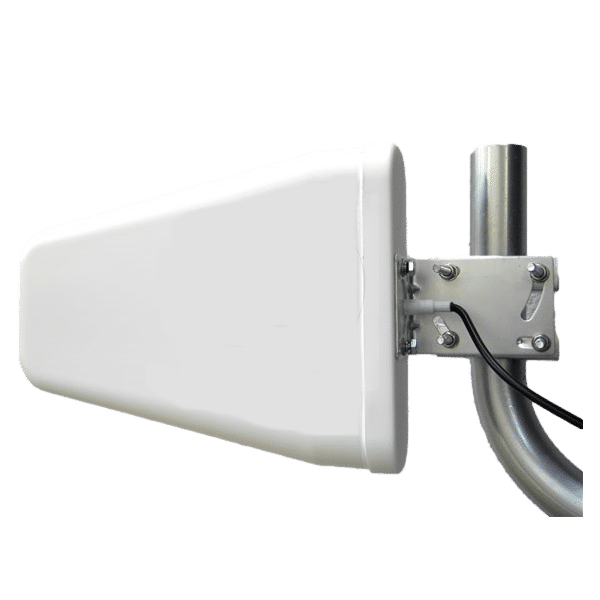

Pole mounted – supplied with pole mount kit (excludes pole)

For 4G and 5G routers we recommend a minimum of 2 x directional antennas.

These antennas need to be directed at the intended basestation for peak network performance.

FB5GD11 – Specification

Frequency 698-960 1650-2690 2690-3800 3800-6000 MHz
Polarization Vertical, Linear
Horizontal Beam Width 90 deg
Vertical Beam Width 50 deg
Gain 5.5~8.5dBi 9.1~11dBi 7.6~8.8dBi 6.6~8.1dBi
VSWR <1.5
F/B >16dB
Max Power 50W
Impedance 50Ω
Mechanical Specification
Radome ABS, UV Protection
Lightning Protection Direct Ground
Connector SMA m
Weight 1.2kg
Size 295×210x65mm
Mount Pole Diameter 35-50mm
Wind Loading (Frontal) 180km/h
OperatingTemperature Range -40 to +70Degrees
Storage Temperature -50 to +75Degrees

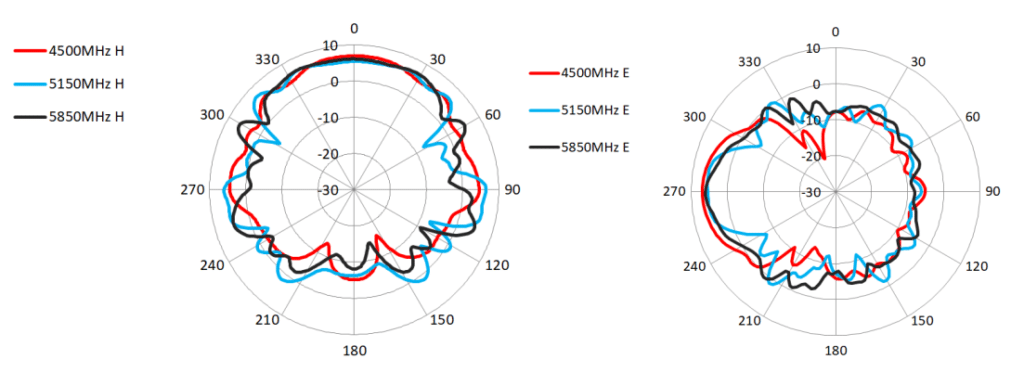

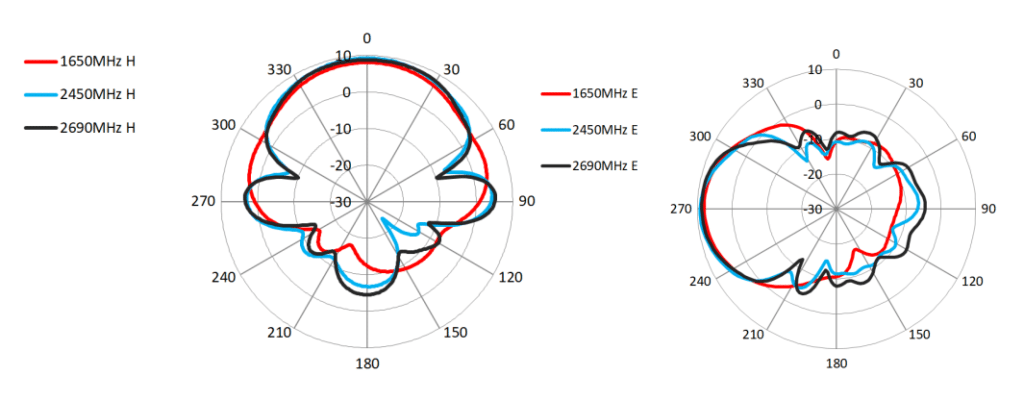

FB5GD11 Radio Patterns
