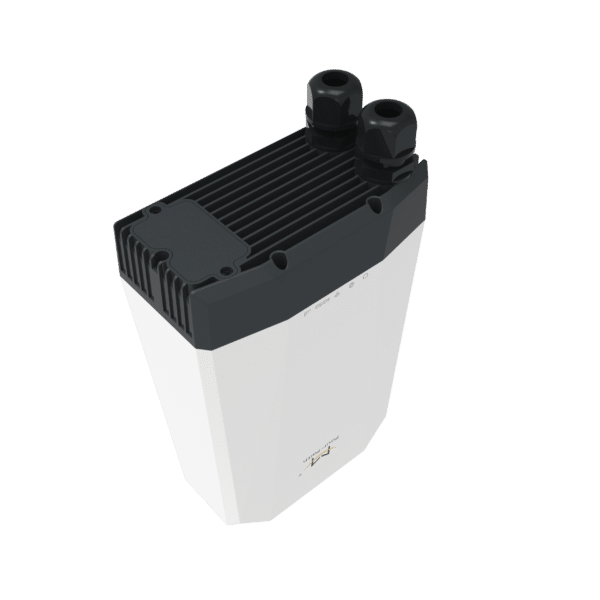

Four-Faith FNB600 Outdoor 5G Router


FNB600 is the high speed, Outdoor 5G Router, IP68 rated with the antennas, SIM and modem installed outdoors where you have the best 4G or 5G signal you can get the optimum high speed mobile broadband connection and just run a single (up to 50m) Ethernet Cable to your indoor router or firewall WAN port without suffering from signal loss normally associated with installing a 5G router indoors and an outdoor 5G antenna.

Box Contents :

1 x FNB600 Router
1 x POE Injector with UK Plug
1 x Mounting Bracket
1 x Jubilee Clip
1 x RJ45 Ethernet Cable (2m long)

PDFFNB600 Datasheet

PDF FNB600 Quick Start Guide

STOCK DUE FRIDAY 7TH JUNE 2024

£274.00 Excl VAT

CALL US to discuss volume pricing 01937 534914
Do you need a Fixed IP SIM Card?

Four-Faith 5G ODU FNB600

● Four-Faith 5G ODU FNB600 is a 5G outdoor unit /ODU. It supports 5G NR (SA&NSA), TDD-LTE, and FDD-LTE, and it can convert cellular networks to Ethernet.

● Equipped with a high-speed 2.5G LAN port, PoE power supply, ABS+metal shell, IP68 waterproof and dust-proof, the FNB600 can keep its stable operation even in outdoor harsh environments that always suffer rain and dust erosion.

High gain antenna, and strong signal acquisition

● The FNB600 has multiple built-in antennas to better penetrate and acquire signals, and it can convert 5G signals to Ethernet networks in a more efficient and timely way.

IP68 waterproof & dust-proof,  and well heat dissipation metal base

● The FNB600 5G ODU adopts a unique design to improve its heat dissipation efficiency and to ensure high-speed and stable operation for 24 hours x 7 days.

● With an IP68 waterproof and dustproof protection level, the FNB600 can keep its stable operation even in harsh outdoor environments that suffer rain and dust erosion.

High-speed 5G network

● Thanks to the customized high-gain antenna and the leading chip solution, the FNB600’s real test network speed can easily break 500Mbps, and the speed can reach 900Mbps in the private network and laboratory environment.

● The FNB600 5G ODU supports 5G, SA/NSA, Sub6G, mmWave, and LTE networks. The wide network compatibility of the FNB600 enhances the adaptability of network coverage in different regions and the stability of network connections.

PoE power supply makes it more convenient for routine operation and maintenance

● With a 2.5G ethernet port, the FNB600 ODU supports the PoE power supply, which makes it more convenient for routine operation and maintenance

User-friendly operation interface

● Based on years of experience in industrial routing research and development, Four-Faith’s F-F OS router operating system was developed to meet users’ multiple demands. It has not only a simple and easy-to-use user interface but also contains several patent-level self-maintenance mechanisms and security daemon processes, to ensure that the system provides 7×24h stable operation ability.

● At the same time, the system has a strong expansion capacity, providing VPN, children online protection, QoS, TR069 management platform access, frequency lock, network lock, and other functions, to meet the various needs of users at the C and B ends.

Highly cost-effective, Far exceeding the industry peers

● The FNB600 has two standard SIM card slots that can support two different operators at the same time, and ensure that the equipment will not stop its operation suddenly due to network package exhaustion or operator network failure.

● The FNB600 is supplied with a POE Injector for normal POE operation but can also be powered using a 12VDC power supply (not included) when it is inconvenient to use PoE power. A WIFI access point is quickly configured by installation and maintenance personnel.

Multi-scenario application, and improving the last kilometer broadband coverage

● Four-Faith’s FNB600 5G ODU achieves full coverage of 5G signal (home, enterprise, and industry), enabling all indoor devices to operate in the 5G high-speed wireless network environment, bringing convenience to users’ lives and work.

FNB600 Unboxing

FNB600 Web Interface / Configuration Guide (Configure APN and change Ethernet Settings etc.)

FNB600 Outdoor 5G Router Specification

Product Specification

Cellular Specification
Items Contents
Frequency Band 5G NR NSA & SA:
n1/n2/n3/n5/n7/n8/n12/n14/n20/n25/n28/n30/n38/n40/n41/n48/n66/n71/n77/n78/n79
LTE-FDD:
B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B20/B25/B26/B28/B29/B30/B32/B66/B71
LTE-TDD:
B38/B40/B41/B42/B43/B48
LAA:
B46
WCDMA:
B1/B2/B4/B5/B8
Remarks: Different modules support different network standards
MIMO 5G NR:
DL 4 × 4 MIMO: n1/n2/n3/n7/n25/n30/n38/n40/n41/n48/n66/n77/n78/n79
UL 2 × 2 MIMO: n41/n77/n78/n79
LTE:
DL 4 × 4 MIMO: B1/B2/B3/B4/B7/B25/B30/B32/B38/B40/B41/B42/B43/B48/B66
Theoretical Maximum Bandwidth 5G Sub-6 SA:DL: 4.67 Gbps,UL: 1.25 Gbps
5G Sub-6 NSA:DL: 4.47 Gbps,UL: 730 Mbps
LTE:DL: 1.6 Gbps,UL: 211 Mbps
Interfaces
Items Contents
Ethernet (LAN) 1 x 2.5G Ethernet (RJ45), auto MDI/MDIX
Indicator Power, Internet, WIFI, 5G/4G, Signal
SIM Card 2 x Nano-SIM interface (1 Main & 1 Backup)
USB Type C 2.0
Reset Button Through this button, the parameter configuration can be restored to the factory value
Hardware
Items Contents
CPU Cortex-A55@2.0GHz, Quad-core
DDR3 1GB(8Gbit)
Flash 1GB(8Gbit)
WIFI Specification
Items Contents
WIFI Protocol IEEE802.11 a/b/g/n
Frequency 2.4GHz (For Configuration Use Only)
Power Supply
Items Contents
Standard Power Supply POE: 802.11af / DC: 12V 1.5A
Physical Properties
Items Contents
Shell ABS Material Cover with Metal Base, IP68*(Device only, test without ethernet cable & power cable. Loose ethernet cables may affect waterproof capacity.)
Dimensions 150x100x240mm
Weight ≦1kg
Operating Temperature -20~+60ºC
Storage Temperature -40~+85ºC
Humidity 95% (No-condensing)

Order Information

Models Description
FNB600-NA North of America Version
Bandwidth: 5G Sub-6: n2/5/7/12/14/25/30/41/48/66/71/77/78
LTE FDD: B2/4/5/7/12/13/14/17/25/26/29/30/66/71
LTE TDD: B41/48
LAA: B46
WCDMA: B2/4/5
FNB600-EAU European Version
Bandwidth: 5G Sub-6: n1/3/5/7/8/20/28/38/40/41/71/77/78/79                                                               LTE FDD: B1/3/5/7/8/20/28/32/71                                                                                 LTE TDD: B38/40/41/42/43
WCDMA: B1/5/8

Box Contents :

1 x FNB600 Router
1 x POE Injector with UK Plug
1 x Mounting Bracket
1 x Jubilee Clip
1 x RJ45 Ethernet Cable (2m long)
