Fullband FB4GPUCK-2 4G 2×2 MIMO Screw / Panel Mount Puck Antenna 4dBi Peak Gain 2.5m cable SMA Male
The Fullband FB4GPUCK-2 2×2 MIMO antenna is a mini 4G screw/panel mount antenna supplied with 2x 2.5m cable with SMA male connector. This compact 4G puck antenna is weatherproof and suitable for a wide range of cabinet mounted installations.
Fullband-FB4GPUCK-2-Antenna-Datasheet
Ref: FB4GPUCK-2
£22.00 Excl VAT
Fullband FB4GPUCK-2 4G Puck Screw Mount Antenna
The Fullband 4G Puck Antenna is a tough and durable 2G/3G/4G Wideband Mobile Broadband / Cellular puck antenna with 4dBi gain.

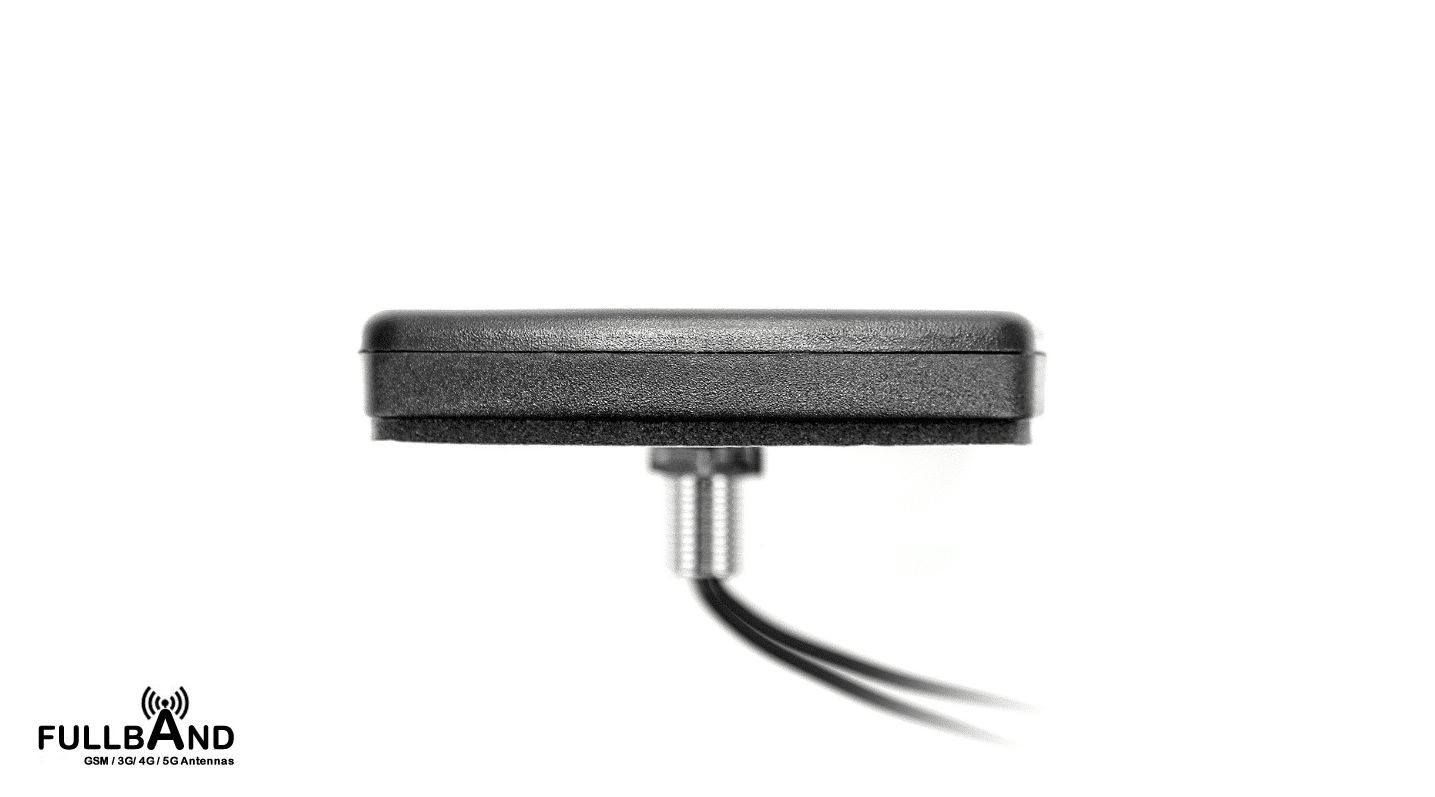

The antenna is a screw-mount antenna. The cables exit is on the underside of the antenna and once mounted is totally enclosed and secure and the antenna has a self adhesive foam backing to provide a waterproof seal. The antenna is secured in place by a nut that is tightened from underneath.
The Fullband FB4GPUCK-2 is ideal for metering, telemetry and telematics applications where a discrete antenna is required, but performance cannot be compromised and is ideal for use with a wide range of 4G Routers.
Key Technical Features
Omni-Directional 4G LTE-698MHz
698MHz – 2700MHz (698-960, 1710-2170, 2500-2700 MHz)
Peak Gain 4dBi
IP67 rated
Screw Mount
Linear Polarisation
Connector Type: SMA Male
Cable Length: 2.50m
Dimensions: 80 x 74 x 14.7mm
Electrical and Antenna Characteristics
Polarisation: Linear
Frequency: 698-2700 MHz
Peak Gain: 4.4dBi
Power Handling: 25W
Impedance: 50W
Radiation Pattern: Omni-Directional
Max Input Power (W): 35
Connector Type: SMA-Male
Cable Length: 2.5m
Cable Type: LL100
Standards: 4G/3G/2G
Environmental and Mechanical Specifications
Dimensions (mm): 80 x 74 x 14.7mm
Radome: ABS
Ground plane independent
Operating Temp (°C): -40 to +85
Storage Temp (°C): -40 to +85
Mounting Type: Screw 19mm Thread
Compliance: RoHS
