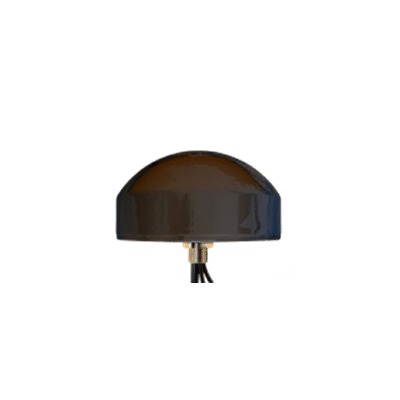

MIMOPUCK4X4-1M
, , , , , , , ,

Fullband MIMOPUCK4X4-5G Antenna (LTE/5G) 4x1m Cables SMA Male

The Fullband MIMOPUCK4X4-5G is a high-performance IP67 waterproof omnidirectional antenna designed for 4×4 MIMO LTE/5G applications in transportation, telematics, and industrial IoT. With robust construction, versatile mounting, and low-loss 1m cables, it ensures reliable connectivity in harsh environments.

Key Features:

  • 4×4 MIMO LTE/5G – Covers 617-6000MHz for high-speed data transmission.
  • IP67 Waterproof & Rugged – Ideal for transportation, telematics, and industrial use.
  • Omnidirectional & Ground-Plane Independent – Works efficiently on metal or plastic surfaces.
  • Versatile Mounting – Suitable for roof, wall, or pole installation.
  • Low-Loss 1m Cables – Includes four SMA male connectors for strong signal integrity.
  • Customisable Options – Available with different cable lengths and connector type – contact for details – standard model is 1m long cables.

£48.00 Excl VAT

CALL US to discuss volume pricing 01937 534914
Do you need a Fixed IP SIM Card?

Request A Quote Or Project Pricing

Fullband MIMOPUCK4X4-5G Antenna (LTE/5G) – 4x1m Cables SMA Male (MIMOPUCK4X4-5G-1M)

The Fullband MIMOPUCK4X4-5G is a rugged, high-performance omnidirectional M2M antenna designed for demanding applications in telematics, transportation, and remote monitoring. Built to IP67 waterproof standards, this heavy-duty antenna delivers exceptional reliability in extreme environments, making it ideal for use in commercial vehicle telematics, smart meter systems, and industrial equipment monitoring.

Key Features:

  • High-Efficiency Design: Optimized for 617-6000MHz LTE/5G bands, ensuring superior signal performance across global cellular networks.
  • Multi-Band Coverage: Equipped with four antenna elements, supporting 4×4 MIMO LTE/5G for enhanced data throughput and improved connectivity.
  • Versatile Mounting Options: Can be permanently mounted on a vehicle roof, metal panel, pole, or wall, making it suitable for a wide range of industrial and commercial applications.
  • Robust Construction: Designed to meet or exceed industry-standard environmental ruggedization specifications, ensuring reliable operation in harsh conditions.
  • Ground-Plane Independence: Capable of radiating efficiently on any surface, including metal and plastic, without degradation in performance.
  • Low-Loss Cables: Includes four 1-meter low-loss cables with SMA male connectors, providing high-quality signal transmission while allowing customization for specific installation needs.

This antenna is an ideal solution for buses, trains, commercial transport, and industrial IoT deployments, where robust, high-performance connectivity is required. Customized cable lengths and connector options are available upon request.

Specification

Model: FULLBAND-MIMOPUCK4X4-5G-1M-BLACK
Frequency Range: 617/960/1710/2700/3300/5900/6000MHz
V.S.W.R: < 3.0
Polarization: Linear
Gain: 3/5 dBi
Impedance: 50Ω
Connector: SMA Male x4
Cable: RG174 1m x4
Mounting Screw: M12X1.0, 14mm long
Radome Material: ABS
Operating Temperature: -40°C to +85°C
Relative Humidity: Up to 95%
Antenna Dimensions: Ø95mm × 50mm
Ingress Protection: IP65 (excluding cable outlet)
Weight: 175g
