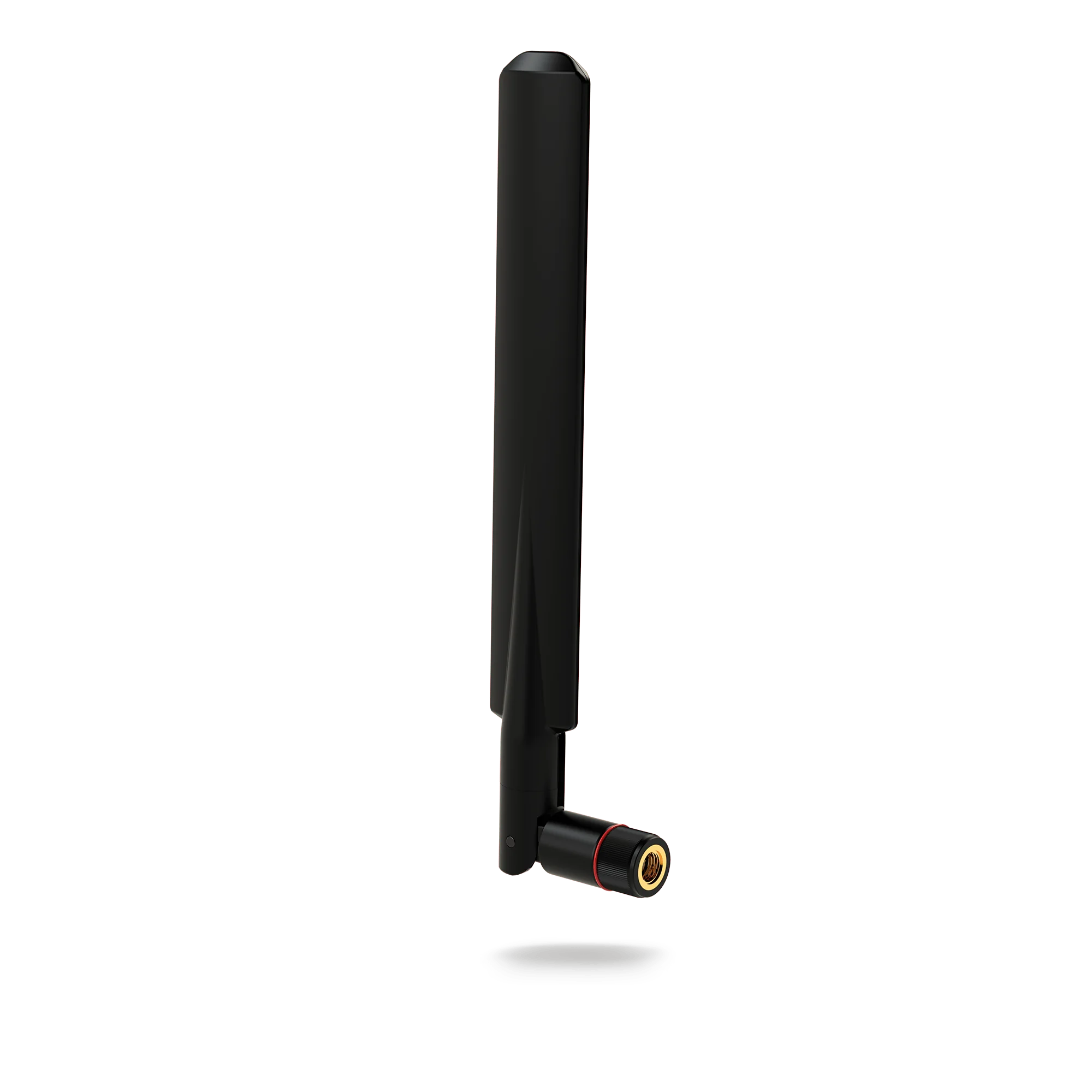

Panorama PWB-24-58-RSMARV 2.4/5.0GHz WiFi Paddle Antenna
Panorama Antennas PWB-24-58-RSMARV WiFi antenna for use with routers and terminals. This paddle design WiFi antenna provides a high quality solution for connecting directly to cellular terminals and routers. SMA Reverse Polarity plug connection suits most router brands.
£11.70 Excl VAT
The PWB-24-58-RSMARV antenna from Panorama is a ground plane independent antenna covering 2.4 / 5.0 GHz.
Designed for terminals and routers the PWB-24-58-RSMARV offers an articulated SMA connector for flexible positioning and a sleek profile for low visual impact.
SMA Reverse Polarity.
| Electrical Data | |
| Frequencies | 2.396-2.485 / 4.9-6.0GHz |
| Typical VSWR | <2.5:1 |
| Peak Gain (dBi) | 2.4GHz – 3dBi / 5GHz – 5dBi |
| Max Input Power (W) | 10 |
| Pattern | Omni-directional |
| Mechanical Data | |
| Available Colours | Black |
| Length (mm) | 163 (6.4”) |
| Width (mm) | 22 (0.8”) |
| Height (mm) | 7 (0.27”) |
| Operating Temperature | -30 / + 70°C |
| Mounting Data | |
| Mounting Type | Articulated Hinge |
| Mounting Method | Reverse Polarity SMA Plug |
The Panorama PWB-24-58-RSMARV WiFi paddle antenna is ideal for use with 4G and 5G routers and devices that need an elbow-jointed paddle antenna for their WiFi connection.
