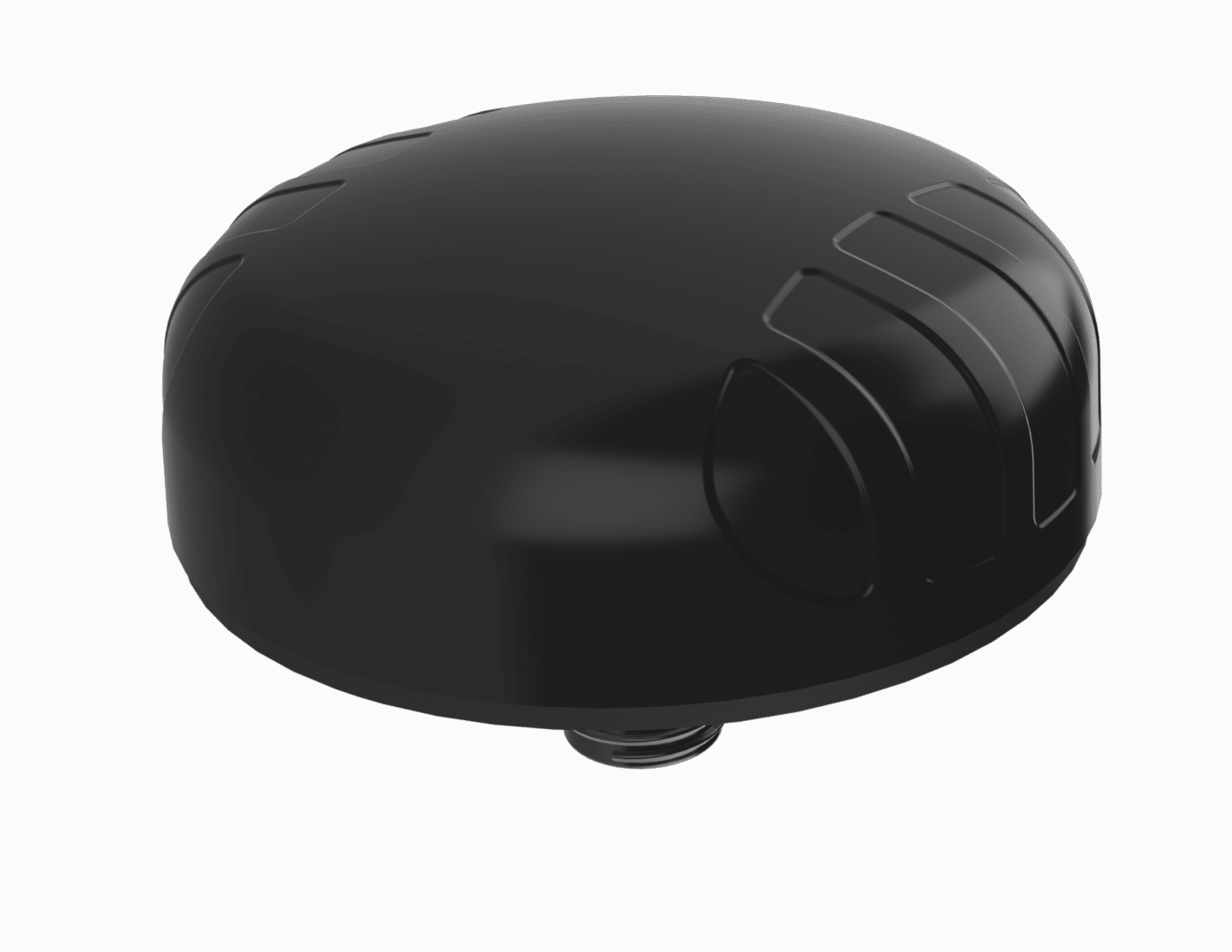

Poynting PUCK-5 Antenna (PUCK-0005) 2 x Cell, 2 x WiFi and GPS
Poynting PUCK-5
Vehicle 4G Antenna with 2 x 4G, 2 x WiFi and GPS antenna inside a single, roof or cabinet mounted PUCK style antenna.
£74.00 Excl VAT
PUCK-0005 – Poynting Outdoor Vehicle ‘PUCK’ Roof Mount Antenna
5-IN-1 High Performance, small size antenna; 2×2 MIMO LTE: 698 MHz – 3800 MHz, 2×2 MIMO Wi-Fi: Dual band 2.4 – 2.5 & 5-6 GHz, GPS/GLONASS: 1575.42/1600 MHz
- Black
- 2G/3G/4G/LTE antenna (5G Ready, includes 3.2GHz to 3.8GHz)
- 2 x MiMo LTE, 2 x MiMo Wi-Fi
- High Performance GPS / GLONASS
- Small & Low-Profile (Ø 100mm x h 36mm)
- 5 x 2m cables, SMA & ReSMA connectors
- Waterproof & Dustproof (complies with IP69K)
- Highly Ruggedised (complies with IK10)
- Fire Resistant (certified with ECE-R 118.02)
- Easy installation; multi implementation options (as standard)
- UV Stable Enclosure
- Wideband – covers wide frequency band
- Ground plane independent – performs consistently with and without a ground plane.
