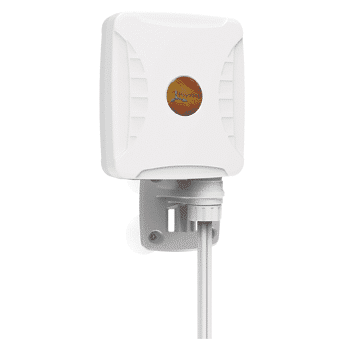

Poynting XPOL-1-5G Omni 4×4 MIMO 4G/5G Antenna


The Poynting XPOL-1-5G V2 Omni 2×2 MIMO 4G and 5G Outdoor Antenna is Poynting’s second-generation of the very popular Cross Polarised (XPOL) 2×2 MIMO antenna with peak 3dBi gain.

  • Exceptional performance over the main 4G/5G bands
  • High gain for the antenna size
  • Wideband 2×2 or 4×4 MIMO 4G/5G antenna
  • Backwards compatible 2G/3G/4G/LTE/5G antenna
  • Weather, dust and vandal resistant enclosure (IP 65)

A-XPOL-0001-V2-41 – CLICK HERE to download datasheet PDF

£100.00 Excl VAT

CALL US to discuss volume pricing 01937 534914
Do you need a Fixed IP SIM Card?

The Poynting XPOL-1-5G V2 Omni 4×4 MIMO 4G and 5G Outdoor Antenna is Poynting’s second-generation of the very popular Cross Polarised (XPOL) 4×4 MIMO antenna with peak 3dBi gain.

(Part : A-XPOL-0001-V2-41)

This antenna covers all UK 2G, 3G, 4G and 5G frequencies and performs exceptionally well in the following frequency bands: 698 – 960 MHz, 1700 –2700 MHz & 3400 – 3800 MHz, with a peak gain of 3dBi across the frequency bands of operation.

This is the 4×4 MIMO Omni-directional version with 4 x 5 meter cables, for the 2×2 MIMO Omni-directional version click here.

Specs

  • Omni Directional 4G LTE and 5G Antenna
  • Includes 3400 to 3800MHz 5G Frequency bands
  • 698 – 3800 MHz
  • X-Polarised 4×4 Antenna
  • Antenna gain of 3 dBi

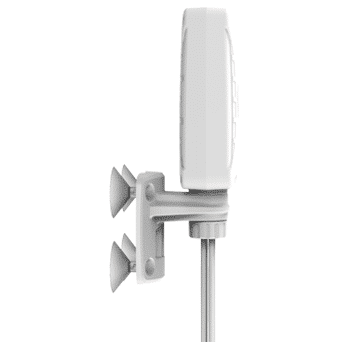

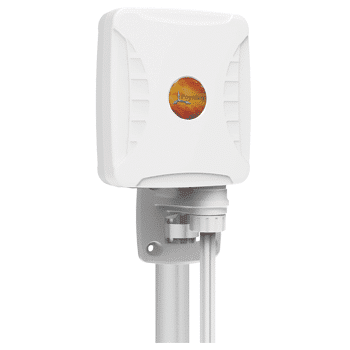

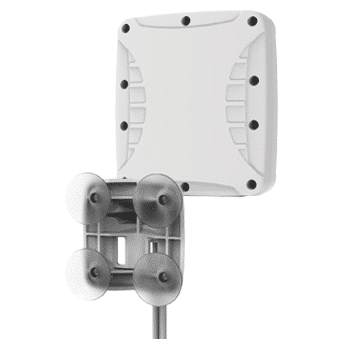

  • Wall, pole or window mountable
  • Lightweight and Rugged
  • High pattern consistency across bands for 4G/5G carrier aggregation
  • IP65 enclosure
  • 4 x 5m HDF195 low loss cables
  • Dimensions: 247mm x 157mm x 88mm

Poynting XPOL-1-5G Antenna Key Features

Specs

  • Omni Directional 4G LTE and 5G Antenna
  • Includes 3400 to 3800MHz 5G Frequency bands
  • 698 – 3800 MHz
  • X-Polarised 2×2 Antenna
  • Antenna gain of 3 dBi
  • Wall, pole or window mountable
  • Lightweight and Rugged
  • High pattern consistency across bands for 4G/5G carrier aggregation
  • IP65 enclosure
  • 2 x 5m HDF195 low loss cables
  • Dimensions: 247mm x 157mm x 88mm

The XPOL-1-5G Antenna is Poynting’s second generation “V2” of this very popular Cross Polarised (XPOL), cellular band, 2×2 MIMO antenna. The addition of a 4X4 MIMO derivative is also available for user specific needs. The antenna has been completely redesigned form the previous generation with an all new enclosure and antenna design. The antenna now includes the newer 3400 – 3800 MHz bands as well as the in demand lower 617 MHz band, which were not previously covered by our V1 and is suitable for 2G, 3G, 4G & 5G. This antenna performs exceptionally well in the following frequency bands: 617 – 960 MHz, 1700 – 2170 MHz, 2300 – 2700 MHz & 3400 – 3800 MHz, with a peak gain of 4 dBi across the frequency bands of operation.

The radiation patterns of the XPOL-1-5G Antenna are omni-directional and exceptionally well controlled, further adding to the performance of the antenna. This makes the antenna perfect for most application areas, such as urban, rural, agricultural and commercial, to achieve the best possible coverage over a large area. The robust mechanical enclosure design makes the antenna weather, dust and vandal resistant and gives it an IP65 rating, suitable for harsh environments.

Product Options
SKU A-XPOL-0001-V2-21 A-XPOL-0001-V2-41
COAX Cable Type HDF-195 HDF-195
COAX Cable Length 5m 5m
Color White White

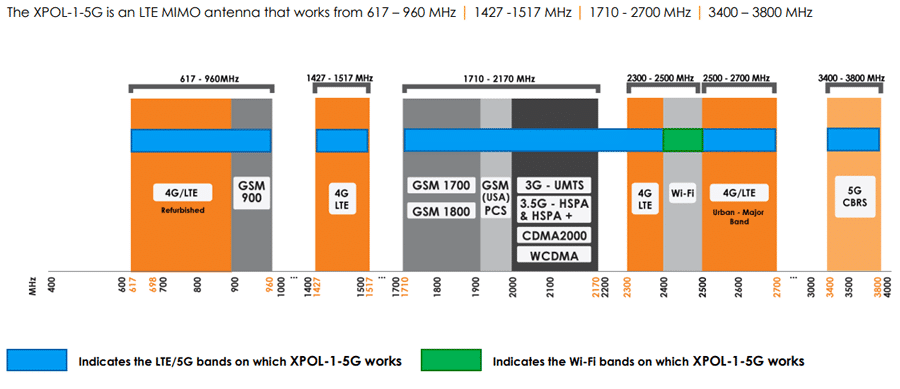

XPOL-1-5G Antenna Frequency Bands Supported

Poynting XPOL-1-5G Dimensions
