Proroute H685f-W-POE Compact 5G Router (Supports POE Power Input 48V)

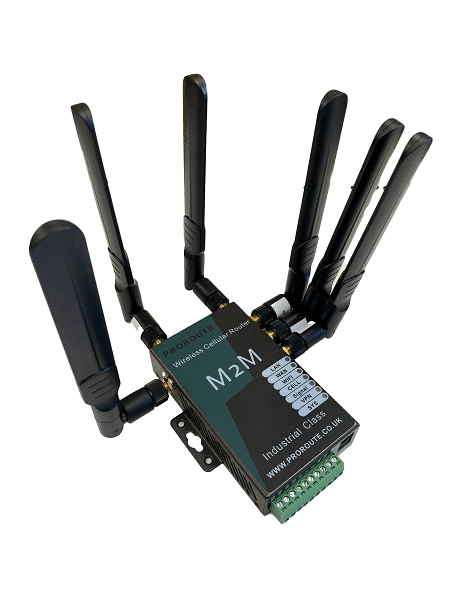

Proroute H685F-W-POE Compact 5G Router

This version of the popular 5G router supports power input using a standard POE switch (802.3af) supporting 48VDC input.  This provides a simple solution for installations with a single POE switch providing power for all connected devices.

NB : This router does not provide POE output

IMPORTANT : the non-POE version of the H685 should not be powered using a connection straight from a POE switch.

The Proroute H685 is a reliable, industrial grade compact 4G router with embedded high speed 5G module for high speed mobile broadband data transfer speeds.

Many M2M applications require a small form factor 4G/5G Router to provide connectivity to the internet and the Proroute H685 5G Router is the ideal solution. The common way to use the router is with a 4G or 5G Fixed IP SIM Card to provide the H685 router with a mobile internet connection with a fixed, public IP address for easy and reliable remote access to the router and connected devices using port forwarding.

Of course, the H685 5G Router can be used with a normal SIM Card but in the UK most standard SIM cards will use CGNAT (Carrier Grade NAT) which means when the router connects to the mobile network it will receive a private IP address on the mobile network providers network so that you cannot remotely connect to the router, nor can you use Dynamic DNS because your mobile provider has not provided a public IP address for your connection. So if you just need an internet connection and do not need remote access over the Internet then you can just use a standard SIM card in the H685 45 router.

Technical Specification

4G/5G LTE Modem

5G (SA and NSA)
4G LTE (FDD/TDD)
3G UMTS WCDMA (HSUPA/HSDPA/HSPA/HSPA /DC-HSPA )

Cellular Frequency 5G Sub-6G:
n1/n2/n3/n5/n7/n8/n12/n20/n28/n41/n66/n71/n77/n78/n79

4G FDD LTE:
Band 1 – 2100Mhz
Band 2 – 1900Mhz
Band 3 -1800Mhz
Band 4 – AWS(1700/2100Mhz)
Band 5 – 850Mhz
Band 7 – 2600MHz
Band 8 – 900Mhz
Band 9 – 1700Mhz
Band 12 – 700Mhz
Band 13 – 700Mhz
Band 14 – 700Mhz
Band 17 – 700Mhz
Band 20 – 800Mhz
Band 25 – 1900Mhz G Block
Band 26 – 850Mhz
Band 28 – 700Mhz
Band 30 – 2300Mhz
Band 32 – 1500Mhz (SDL)
Band 71 – 600Mhz
And other more FDD band

4G TDD LTE (TD-LTE):
Band 48 – 3600Mhz (CBRS)
Band 46 – 5200Mhz
Band 43 – 3700Mhz
Band 42 – 3500Mhz (CBRS)
Band 41 – 2500/2600Mhz
Band 40 – 2300Mhz
Band 39 – 1900Mhz
Band 38 – 2600Mhz
And other more TDD band

WCDMA: B1/B2/B3/B4/B5/B8/B9/B19

UMTS/HSPA/HSUPA/HSPA/HSPA /DC-HSPA (WCDMA/FDD):
2100MHz(B1)/1900MHz (B2)/1800MHz (B3)/ 1700MHz /AWS (B4)/850MHz (B5)/900MHz (B8)/800MHz (B6)/1800MHz (B9)/850MHz (B19)

Bandwidth Downlink data: 5G/NR sub-6: 2Gbps-10Gbps, LTE 2.4Gbps
Uplink data: 5G/NR sub-6:2.5Gbps, LTE 450Mbps

Notes: the bandwidth is peak value. Real value depends on carrier network support.

Wi-Fi
WiFi 802.11b/g/n

SMS/Voice control
SMS/Voice features to control the router, checks status, reboot or notify of alarm incidents

Protocol Support
TCP, UDP, SMTP, POP, ICMP, FTP, PPP, PPPoE, DHCP, DDNS, DNS, SNMP, NAT, DMZ, ALG

VPN
VPN, IPSec, PPTP (client)

Security
Security 64/128-bit WEP (Wired Equivalent Privacy)
WPA & WPA2 (Wi-Fi Protected Access)

Advanced Firewall Features
Network Address Translation (NAT)
Stateful Packet Inspection (SPI)
VPN Pass-through
Media Access Control
CSMA/CA with ACK Certifications
RADIUS Client Interface
Dynamic Route Feature (BGP, OSPF)

LAN
1X 10/100/1000 LAN port (RJ45 interface)

WAN
1 x 10/100 WAN Port (RJ45) – can be converted to second LAN port in web configuration

Antenna
2 X SMA antenna connector for Wi-Fi
4 X SMA antenna connector for Cellular – MAIN / AUX

LED Indicators
LAN, WAN, WIFI, CELL, Signal, VPN, SYS – Activity

Configuration Interface
Web/Telnet, Local RJ45 and WiFi

UIM/SIM Card Slot
The H685 5G Router supports 1.8V/3V UIM/SIM cards (standard size SIM – inserted in the base of the router underneath a screw cover)

Power
Power supply DC7V-30V, typical DC9V 1A
Power consumption:
Idle: 15mA@9VDC
Max: 250mA@9VDC
Average:105mA@9VDC

This compact 4G router supports POE Power Input via LAN port 1 only – supports 48V 802.3af so can be powered directly from POE network switch.

Software
Device Management
WEB interface (Internet Explorer v6 or Later; Mozilla Firefox v1.5 or Later, or other Java-enabled Browsers, Chrome, Opera, Safari, IE6)
SNMP
SYSLOG
Minimum System requirements computer with:
Windows 7, Vista, Windows XP SP2, Windows 2000 SP4, or Mac OS® X (v10.4/v10.3), Linux
Internet Explorer 6 or Mozilla Firefox
Network Interface Card / WiFi

Physical
Operating Temperature
Storage: -20°C to 50°C
Working: -20°C to 50°C
Humidity: 95% Maximum (Non-condensing)

Dimensions
Item (L x B x H): 72mm x 55mm x 23mm
Packaging (L x B x H): 260mm x 190mm x 65mm (10.3″ x 7.5″ x 2.6″)
Weight Item: 400g
Packaging: 800g total weight including product

Package Contents:
H685f-w-p1 5G Router
CAT5 Ethernet Cable
DC9V 1A UK Mains Power Adapter
4 x Cellular Antennas (Elbow Joint Stick)
2 x WiFi Antenna (Elbow Joint Stick)

Quick start guide

The Proroute H685 5G Router has been one of our best selling, compact, industrial 4G routers since its launch in 2014.  With tens of thousands of units installed in kiosks, CCTV and energy monitoring applications across the UK and Europe it continues to provide reliable, secure and robust LTE 4G Internet communications for our customers. For customers that like the compact form and reliability of the H685 4G router but need a faster Internet connection then good news!  The Proroute H685 5G Router is now available from stock for next working day delivery.
