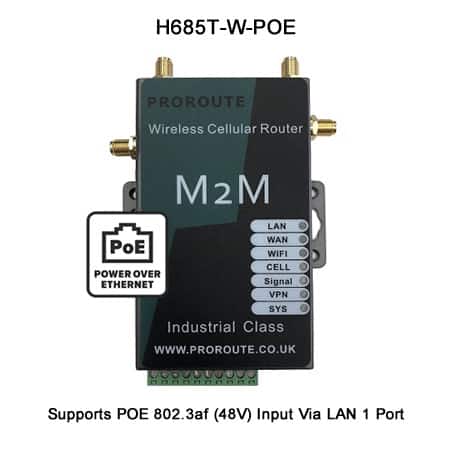

Proroute H685T-W-POE Compact 4G Router (Supports POE Power Input)


The Proroute H685T-W-POE 4G Router provides a reliable, industrial 4G router solution with embedded high speed LTE 4G module for high speed mobile broadband data transfer speeds.  This compact router provides 2 x Ethernet Ports and built-in WiFi as standard with firewall and VPN to meet most M2M remote monitoring and management applications.

This version supports 802.3af POE switch input (48V) so can connect directly to a POE Network Switch.

Ref : H685T-W-POE-N 4G Router (H685t-w-p1)

£145.00 Excl VAT

Quantity based pricing table

Min Max Unit Price
5 9 £139.00
10 And more. £134.00

CALL US to discuss volume pricing 01937 534914
Do you need a Fixed IP SIM Card?

£198.00 for 3 item(s)

Proroute H685T-W-POE Compact 4G Router

This version of the popular 4G router supports power input using a standard POE switch (802.3af) supporting 48VDC input.  This provides a simple solution for installations with a single POE switch providing power for all connected devices.

NB : This router does not provide POE output

IMPORTANT : the non-POE version of the H685 should not be powered using a connection straight from a POE switch.

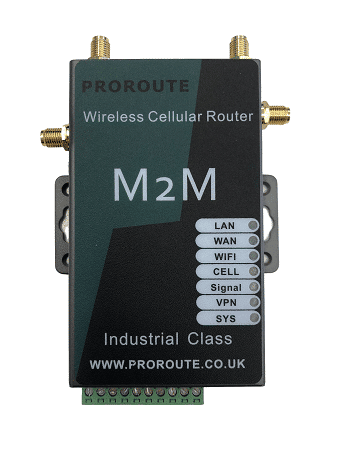

The Proroute H685 is a reliable, industrial grade compact 4G router with embedded high speed LTE 4G module for high speed mobile broadband data transfer speeds.

Many M2M applications require a small form factor 3G/4G Router to provide connectivity to the internet and the Proroute H685 4G Router is the ideal solution. The common way to use the router is with a 3G or 4G Fixed IP SIM Card to provide the H685 router with a mobile internet connection with a fixed, public IP address for easy and reliable remote access to the router and connected devices using port forwarding.

Of course, the H685 4G Router can be used with a normal 4G SIM Card but in the UK most standard SIM cards will use CGNAT (Carrier Grade NAT) which means when the router connects to the mobile network it will receive a private IP address on the mobile network providers network so that you cannot remotely connect to the router, nor can you use Dynamic DNS because your mobile provider has not provided a public IP address for your connection. So if you just need an internet connection and do not need remote access over the Internet then you can just use a standard SIM card in the H685 4G router.

Technical Specification

3G/4G LTE Modem

Interface – 4G LTE CAT4 (Upto 100Mbps) / DC-HSPA (Upto 42Mbps) / HSPA (Upto 21Mbps) / EDGE / GPRS / GSM
Peak Download Rate – 100 Mbps
Peak Upload Rate – 50 Mbps
Frequency Bands – LTE (800/900/1800/2100/2600 Mhz), WCDMA / 3G / HSPA (900/2100 mhz), EDGE/GPRS/GSM (900/1800/1900)
SIM Interface – 1.8V or 3V
Antenna Diversity – YES
MIMO – YES

Wi-Fi
WiFi 802.11b/g/n

SMS/Voice control
SMS/Voice features to control the router, checks status, reboot or notify of alarm incidents

Protocol Support
TCP, UDP, SMTP, POP, ICMP, FTP, PPP, PPPoE, DHCP, DDNS, DNS, SNMP, NAT, DMZ, ALG

VPN
VPN, IPSec, PPTP (client)

Security
Security 64/128-bit WEP (Wired Equivalent Privacy)
WPA & WPA2 (Wi-Fi Protected Access)

Advanced Firewall Features
Network Address Translation (NAT)
Stateful Packet Inspection (SPI)
VPN Pass-through
Media Access Control
CSMA/CA with ACK Certifications
RADIUS Client Interface
Dynamic Route Feature (BGP, OSPF)

LAN
1X 10/100M LAN port (RJ45 interface)

WAN
1 x 10/100 WAN Port (RJ45) – can be converted to second LAN port in web configuration

Antenna
1 X SMA/Fantenna connector for Wi-Fi
2 X SMA/F antenna connector for Cellular – MAIN / AUX

LED Indicators
LAN, WAN, WIFI, CELL, Signal, VPN, SYS – Activity

Configuration Interface
Web/Telnet, Local RJ45 and WiFi

UIM/SIM Card Slot
The H685 4G Router supports 1.8V/3V UIM/SIM cards (standard size SIM – inserted in the base of the router underneath a screw cover)

Power
Power supply DC7V-30V, typical DC9V 1A
Power consumption:
Idle: 15mA@9VDC
Max: 250mA@9VDC
Average:105mA@9VDC

This compact 4G router supports POE Power Input via LAN port 1 only – supports 48V 802.3af so can be powered directly from POE network switch.

Software
Device Management
WEB interface (Internet Explorer v6 or Later; Mozilla Firefox v1.5 or Later, or other Java-enabled Browsers, Chrome, Opera, Safari, IE6)
SNMP
SYSLOG
Minimum System requirements computer with:
Windows 7, Vista, Windows XP SP2, Windows 2000 SP4, or Mac OS® X (v10.4/v10.3), Linux
Internet Explorer 6 or Mozilla Firefox
Network Interface Card / WiFi

Physical
Operating Temperature
Storage: 72°F to 153°F (-40°C to 90°C)
Working: 36°F to 126°F (-30°C to 80°C)
Humidity: 95% Maximum (Non-condensing)

Dimensions
Item (L x B x H): 72mm x 55mm x 23mm
Packaging (L x B x H): 260mm x 190mm x 65mm (10.3″ x 7.5″ x 2.6″)
Weight Item: 400g
Packaging: 800g total weight including product

Package Contents:
H685t-w-p1 4G Router
CAT5 Ethernet Cable
DC9V 1A UK Mains Power Adapter

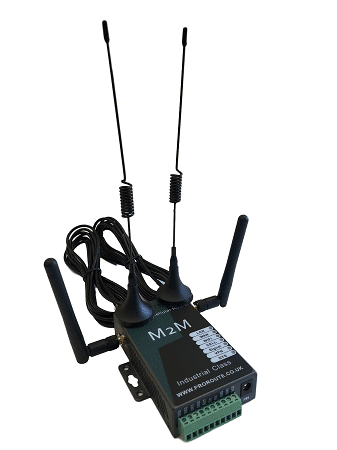

2 x Cellular Antennas (Mag Mount)
2 x WiFi Antenna (Mag Mount)
4 x Elbow Joint Stick Antennas for Cell / WiFi
Quick start guide

The Proroute H685 4G Router has been one of our best selling, compact, industrial 4G routers since its launch in 2014.  With tens of thousands of units installed in kiosks, CCTV and energy monitoring applications across the UK and Europe it continues to provide reliable, secure and robust LTE 4G Internet communications for our customers. For customers that like the compact form and reliability of the H685 4G router but need a faster Internet connection then good news!  The Proroute H685 5G Router is now available from stock for next working day delivery.
