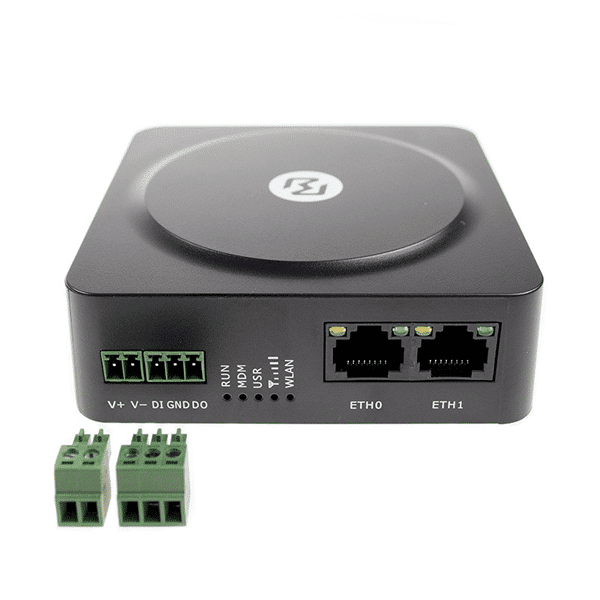

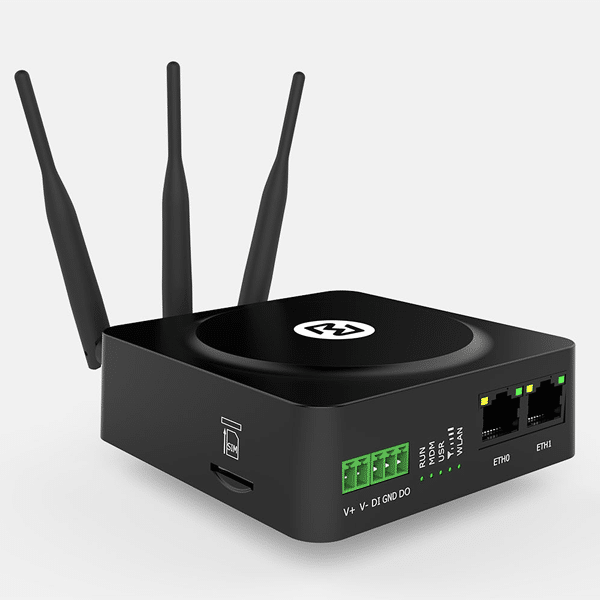

Robustel R1510 4G Router

Robustel’s R1510 4G router is a Dual Ethernet port (LAN + WAN) 3G/4G router with advanced software functions at a very competitive price point.

The R1510 router has many unique software innovations including, but not limited to:

RobustVPN – innovative use of Open VPN tunneling to provide a fixed IP address on ANY SIM Card.
RCMS – Robustel’s Cloud management platform – essential for managing an estate of routers – Basic version FREE.
Data Guard – critical ‘failsafe’ that stops unexpected data overusage within seconds of a threshold being breached.
Smart Reboot – essential backup solution for when your roaming SIM card doesn’t roam!

R1510 KEY FEATURES

Highly stable 2G/3G/4G cellular connections
Ethernet, Wifi and 4G internet connection options with auto-failover
Free cloud management platform –RCMS
Fully programmable Linux environment with excellent SDK Documentation
‘Smart Reboot’for enhanced roaming SIM management
RobustVPN provides fixed IP address on ANY SIM card
Full SMS control for diagnosis and recovery from data network problems
Very small footprint for space-constrained applications
Wall-mount and DIN-rail mounting options available
R1510 4G ROUTER SPECIFICATION
Cellular Interface

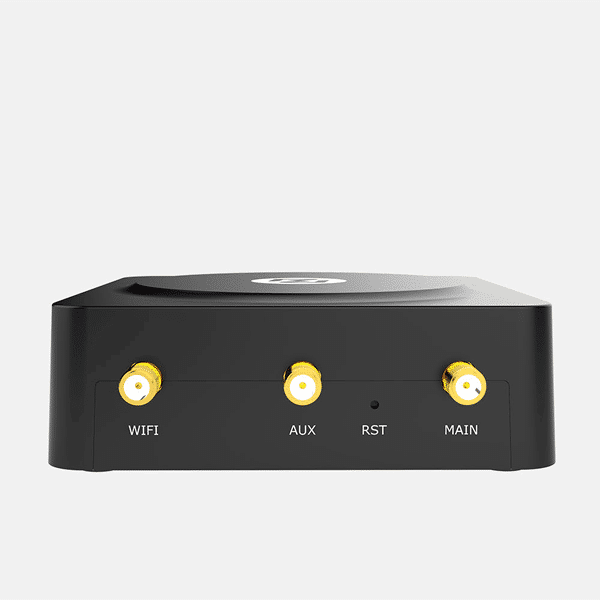

Number of antennas 2 external antenna (MAIN + AUX)
Connector SMA-K
SIM 1 (3 V & 1.8 V) Standard SIM or eSIM

Ethernet Interface
Number of ports 2 x 10/100 Mbps, 2 x LAN or 1 x LAN + 1 x WAN
Magnet isolation protection 1.5 KV

WiFi Interface
Number of antennas 1 external antenna
Connector RP-SMA-K (external antenna)
Standards 802.11b/g/n, supports AP and Client modes
Frequency bands 2.4 GHz
Security WEP, WPA, WPA2
Encryption 64/128 AES, TKIP
Data speed 2*2 MIMO, 300 Mbps
RF output power (+/-1 dBm)

802.11b 19 dBm
802.11g 19 dBm
802.11n (20 MHz) 18 dBm
802.11n (40 MHz) 17 dBm
Receiving sensitivity (+/-1 dBm)

802.11b -93 dBm
802.11g -90 dBm
802.11n (20 MHz) -88 dBm
802.11n (40 MHz) -85 dBm

DI/DO
Type 1 x DI (wet contact) + 1 x DO (wet contact)
Connector 3-pin 3.5 mm female socket
Absolute maximum VDC 30V DC (DI/DO)

Absolute maximum ADC 20mA

Others
Reset button 1 x RST
LED indicators

1 x RUN, 1 x MDM, 1 x USR, 1 x RSSI, 1 x WiFi
Built-in Watchdog, Timer

Software (Basic features of RobustOS)
Network protocols

PPPoE, DHCP , NAT, DNS, NTP, SMTP, Telnet, VLAN,VLAN, VLAN, SSH2, DDNS, etc.
VPN tunnel IPsec, OpenVPN, GRE
Firewall DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
Management Web, CLI, SMS

App Center (Available Apps for RobustOS)
Apps* L2TP, PPTP, DMVPN, VRRP, QoS, WLAN Multi AP, SNMP
*Request on demand. For more Apps please visit www.robustel.com.

Power Supply and Consumption
Connector 2-pin 3.5 mm female socket
Input voltage 9 to 36V DC
Power consumption Idle: 100 mA@12 V
Data link: 500 mA (peak) @12 V

Physical Characteristics
Ingress protection IP30
Housing & Weight Plastic, 150 g
Dimensions 91.5 x 91.5 x 30.8mm
Installations Desktop, wall mounting and 35 mm DIN rail mounting

Approvals
Regulatory: CE, Telec, RCM
Environmental: RoHS 2.0, WEEE
EMI EN 55032: 2012/AC: 2013 (CE & RE) Class A
EMS

IEC 61000-4-2 (ESD) Contact Level 2;
IEC 61000-4-3 (RS) Level 2
IEC 61000-4-4 (EFT) Level 2
IEC 61000-4-5 (Surge) Level 2
IEC 61000-4-6 (CS) Level 2
(* :In progress)
