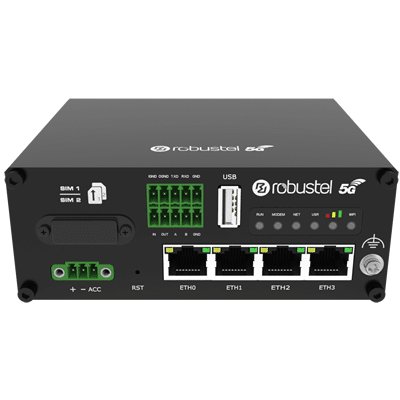

Robustel R5020 5G Industrial Cellular Router


The R5020 is Robustel’s first 5G-capable router supporting global 5G, 4G and 3G bands. The R5020 uses a high performance CPU platform and the RobustOS operating system. The R5020 is compatible with the latest release of 3GPP and is targeted at in-vehicle applications, digital signage, CCTV, Broadband failover and primary Broadband cellular networks.

£495.00 Excl VAT

CALL US to discuss volume pricing 01937 534914
Do you need a Fixed IP SIM Card?

Robustel R5020 5G IoT Industrial Cellular Router

The R5020 is Robustel’s first 5G-capable IoT/M2M router supporting global 5G, 4G and 3G bands. The R5020 uses a high performance CPU platform and the RobustOS operating system to delivery reliable 5G connectivity. The R5020 5G router is compatible with the latest release of 3GPP and is targeted at in-vehicle applications, digital signage, Broadband failover, CCTV and primary Broadband cellular networks.

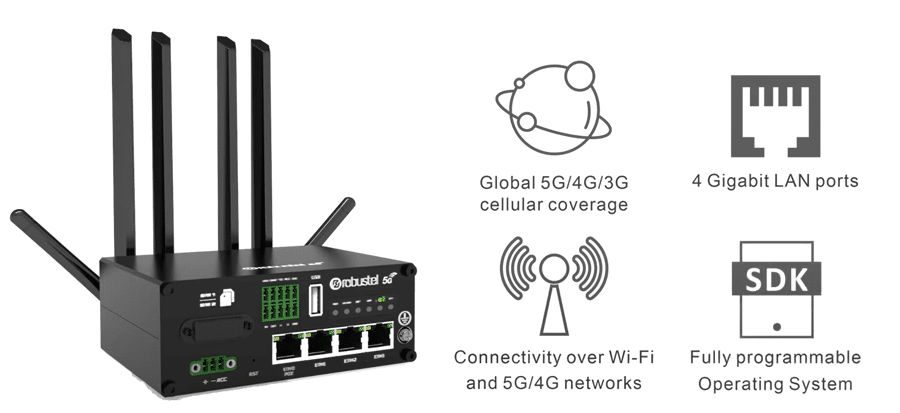

Robustel R5020 5G Key Features

  • Global 5G/4G/3G cellular connections
  • Supports Ethernet, Wifi and 4G/5G internet with auto-failover
  • Very cost-effective industrial 5G router solution
  • Fully programmable Operating System with well documented SDK
  • Multiple VPN options available including DMVPN & IPSEC
  • GNSS, ignition sense & E-mark make R5020 ideal for vehicles
  • Free cloud management platform – RCMS
  • Robust metal enclosure with small footprint – DIN-rail wall mount options

Technical Specification

Cellular Interface
Number of antennas 4 (ANT0 ANT1 ANT2 ANT3)
Connector SMA-K
SIM 2 (3 V & 1.8 V) Standard SIM;
GNSS
Number of antennas 2 (ANT1 ANT2, Multiplexing cellular antenna interface)
Connector SMA-K
GNSS technology GPS/GLONASS/BeiDou (Compass)/Galileo
Horizontal position accuracy < 2m



Ethernet Interface
Number of ports 4 x 10/100/1000 Mbps, 4 LAN by default, can be configured as 1 WAN 3 LAN

Support 802.3at PD feature on ETH0 (optional)

Magnet isolation protection 1 KV

WiFi Interface
Number of antennas 2 (WiFi1 WiFi2)
Connector RP-SMA-K
Standards 802.11b/g/n/ac 2*2 MIMO, supports AP and
Client modes
Frequency bands 2.412 – 2.472 GHz (2.4 GHz ISM band)
5.15 – 5.825 GHz (5 GHz ISM band)
Security WPA, WPA2, WEP
Encryption AES, TKIP, WEP64
Data speed 5G: Up to 867Mbps

2.4G: Up to 300Mbps

Serial Interface
Number of ports 1 x RS232 1 x RS485
Connector 2 x 5-pin 3.5 mm female socket
ESD protection ±8 KV
Baud rate 300bps to 115200bps
Signal definition RS-232: TXD, RXD, GND

RS-485: Data (A), Data- (B), Ground (GND)

DI/DO
Type 1x DI 1 x DO, wet contact
Connector 2 x 5-pin 3.5 mm female socket
Isolation 3.75KV DC (opto-isolator)
Absolute maximum VDC “V ” 30V DC (DI), 30V DC (DO)
Absolute maximum ADC 100 mA
Signal definition IN, OUT, IGND, OGND



Others
Reset button 1 x Tactile Switch
Expansion 1 x USB2.0 Host; 5V/500mA
LED indicators 1 x RUN, 1 x Modem, 1 x USR, 1 x RSSI, 1 x NET, 1 x WIFI
Watchdog Built-in
Software (Basic features of RobustOS)
Network protocols



PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, SMTP, Telnet, SSH2, DDNS, etc.
VPN tunnel IPsec, OpenVPN, GRE
Firewall DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
Management Web, CLI, SMS
Serial port Transparent, TCP Client/Server, UDP, Modbus RTU to TCP
Others Smart Reboot, Data Guard, Smart Roaming, etc.
SDK
Supported programming languages C, C , Linux Shell scripts
Flash available for SDK 5MB
RAM available for SDK 256MB
App Center (Available Apps for RobustOS)
Apps* L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Dynamic Route, Captive Portal, Modbus Master, TR069
*Request on demand. For more Apps please visit www.robustel.com.
Power Supply and Consumption
Connector 3-pin 3.5 mm female socket with lock
Input voltage 9 to 36V DC (without Ignition sensing) ;
10 to 30V DC (with Ignition sensing)
Power consumption Idle: 500 mA@12 V

Data link: 1.2 A (peak) @12 V

R5020 5G Router – Physical Characteristics
Ingress protection IP30
Housing & Weight Aluminum, 500 g
Dimension 125 x 100 x 48 mm
Installations Desktop, wall mounting and DIN rail mounting
Operating Temperature -25 to 70 °C
Storage Temperature -40 to 85 °C
Relative Humidity 5 to 95% RH
Approvals
Regulatory CE, RCM*, CCC*
Application E-Mark*
Environmental RoHS2.0*, WEEE*
*in progress

R5020-5G-A09GL-A [Non-POE] – Stocked as standard
R5020-5G-A09GL-B [POE] – special order

We also stock the Robustel R5020 Lite which is a compact version of the R5020.
