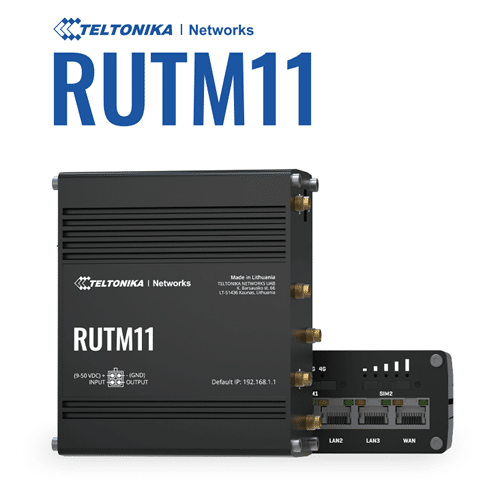

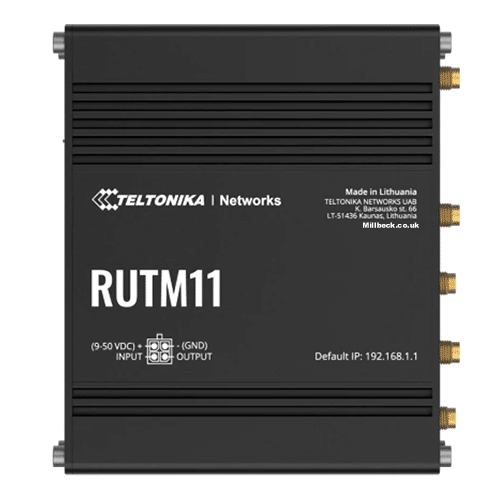

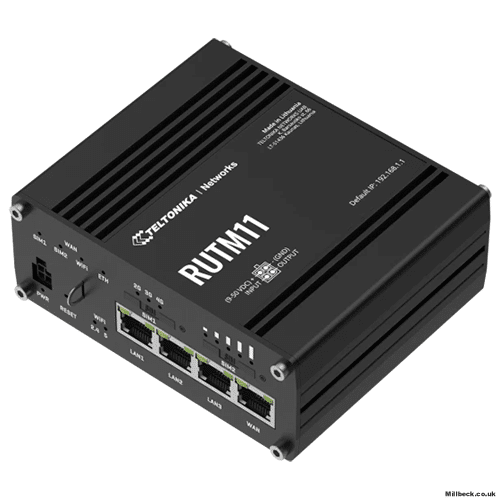

Teltonika RUTM11 CAT6 LTE 4G Router with WiFi5 and GNSS
Teltonika RUTM11
Powerful 4G LTE industrial router with dual SIM, five Gigabit Ethernet ports, robust security, and versatile connectivity for advanced IoT and enterprise networking solutions.
- 4G LTE (Cat 6) with speeds of up to 300Mbps
- WiFi 5, Dual-band WiFi with mesh and fast-roaming functionalities
- Dual SIM – 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V, external SIM holders
- GNSS – Location services and time synchronisation for precise data reading (GPS)

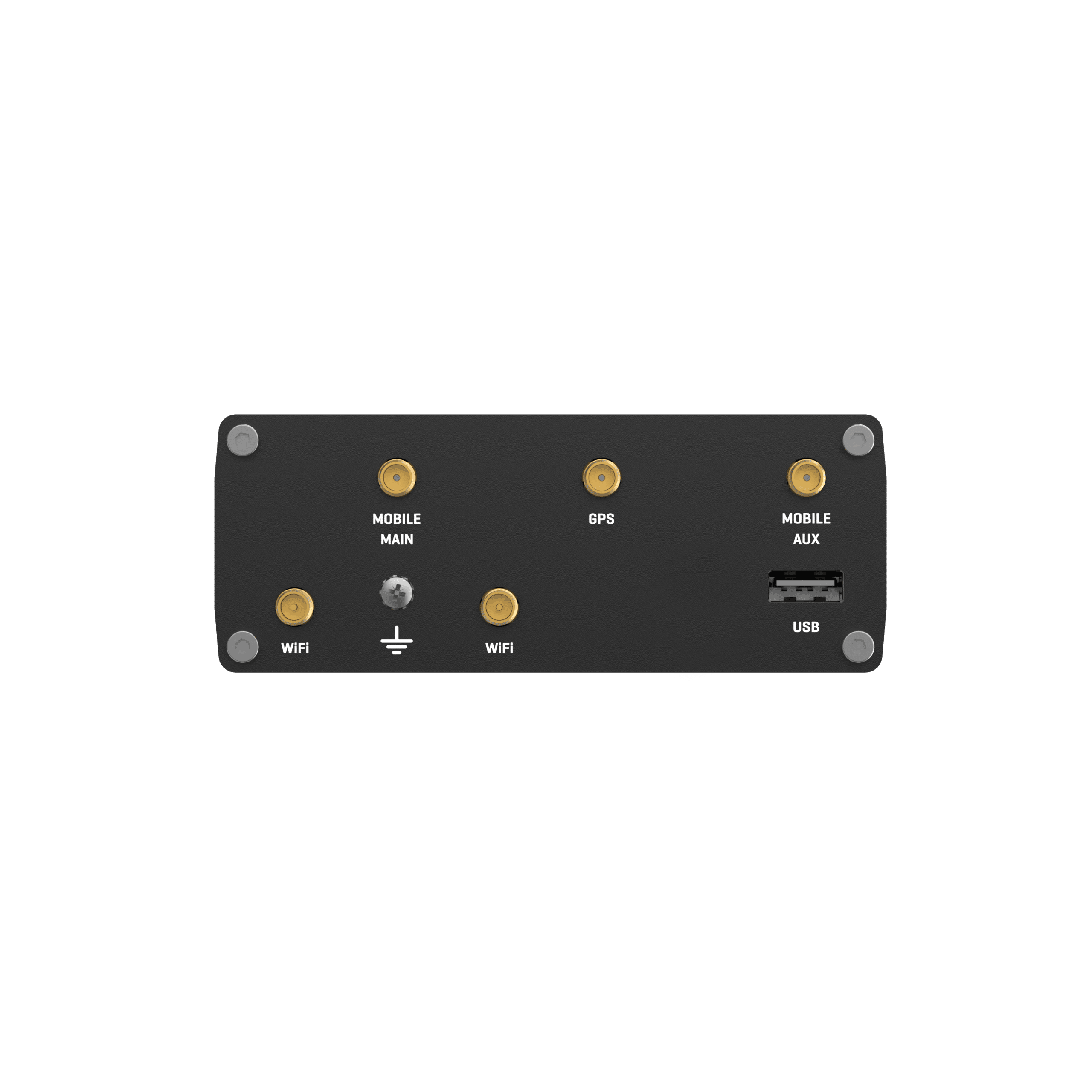

- Antennas: 2 x SMA for Mobile, 2 x RP-SMA for WiFi, 1 x SMA for GNSS (GPS)
- Ethernet – 4 x RJ45 ports, 10/100/1000 Mbps
- 4 x Gigabit RJ45 ports, USB, and up to 128 tag/port-based VLANs
- Compatible with Teltonika Remote Management System (Teltonika RMS)
- Replacement for the Teltonika RUTX11
£199.00 Excl VAT
RUTM11
Teltonika RUTM11, a powerhouse cellular router designed for demanding industrial applications. This robust device offers unparalleled connectivity, security, and reliability for your mission-critical operations.
RUTM11 Key Features:
- Lightning-Fast LTE Cat 6 Speeds: Experience download speeds up to 300 Mbps, ensuring seamless data transfer for your most demanding applications.
- Dual-SIM Reliability: Never lose connection with automatic failover between two SIM cards, supporting multiple carriers for maximum uptime.
- Versatile Connectivity: Equipped with 4 Gigabit Ethernet ports, dual-band Wi-Fi, and Bluetooth LE for flexible integration into any network environment.
- Industrial-Grade Durability: Housed in a rugged aluminium casing, the RUTM11 operates flawlessly in extreme temperatures from -40°C to 75°C.
- Advanced Security Suite: Protect your data with OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, SSTP, and built-in DDOS prevention.
- Precise Positioning: Integrated GPS/GNSS module for location tracking and geofencing capabilities.
- Remote Management: Easy configuration and monitoring through Teltonika’s Remote Management System (Teltonika RMS).
- Flexible I/O Options: Features digital input/output, RS232, RS485, and USB interfaces for seamless integration with industrial sensors and equipment.
Perfect for applications in transportation, energy, manufacturing, and smart city infrastructure, the RUTM11 ensures your critical systems stay connected and secure. With its robust feature set, industrial certifications, and European manufacturing quality, this router is the cornerstone of reliable industrial networking.
Upgrade your industrial connectivity today with the Teltonika RUTM11 – where performance meets reliability.
RUTM11 Technical Specification
| Category | Detailed Specifications |
|---|---|
| Cellular Connectivity | - 4G LTE Cat 6 (300 Mbps DL / 50 Mbps UL) - 3G up to 42 Mbps DL / 5.76 Mbps UL - 2G up to 237 kbps - Dual SIM with auto-switch - Multiple PDN support - Band lock and management - LTE Bands: FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28 - TDD Bands: B38/B39/B40/B41 - 3G Bands: B1/B2/B4/B5/B6/B8/B19 - 2G Bands: B2/B3/B5/B8 |
| Wi-Fi | - IEEE 802.11b/g/n/ac Wave 2 (Wi-Fi 5) - 2.4 GHz and 5 GHz dual-band - 2x2 MU-MIMO - Up to 867 Mbps data rates - Up to 150 simultaneous connections - AP and STA modes - Wireless mesh (802.11s) - Fast roaming (802.11r) - Security: WPA2-Enterprise, WPA3-SAE, WPA3-EAP, OWE |

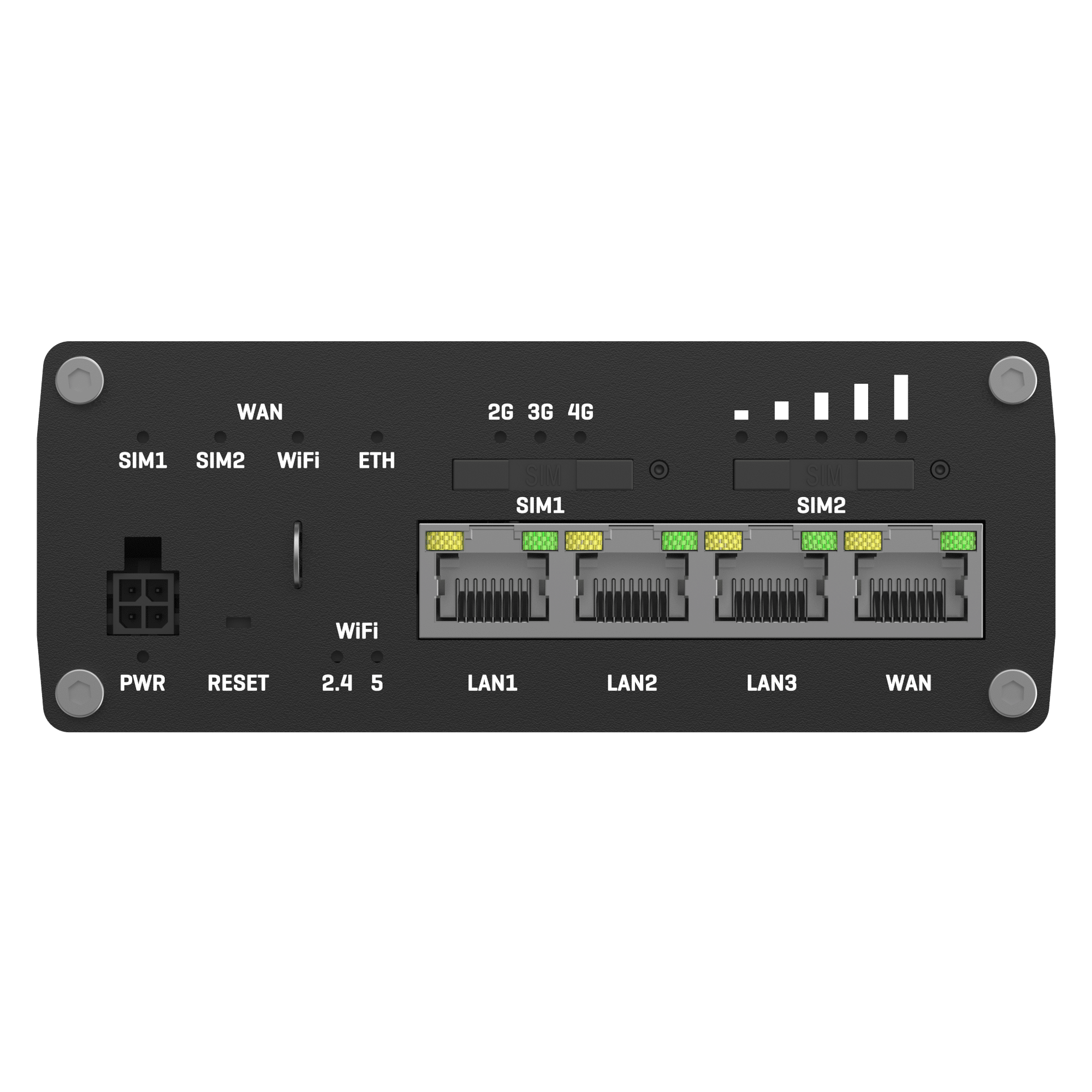

| Ethernet Interfaces | - 1x WAN port (10/100/1000 Mbps) - 3x LAN ports (10/100/1000 Mbps) - Auto MDI/MDIX crossover |
| Hardware Specifications | - CPU: MediaTek Dual-core, 880 MHz, MIPS1004Kc - RAM: 256 MB DDR3 - Storage: 16 MB NOR + 256 MB NAND flash - 1x USB 2.0 port - 1x Digital Input - 1x Digital Output - 2x SIM card slots - Reset button - 6x LED indicators |
| GNSS/GPS | - Multi-constellation support - GPS, GLONASS, BeiDou, Galileo, QZSS - Internal GNSS antenna |
| Routing & Networking | - IPv4 and IPv6 support - Static and dynamic routing - Protocols: BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP - VLAN support - Quality of Service (QoS) - Dynamic DNS - Load balancing and failover - Hotspot with captive portal |
| VPN Technologies | - OpenVPN - IPsec - WireGuard - PPTP - L2TP - GRE - DMVPN - ZeroTier - Stunnel - Tinc - Tailscale - Up to 30 simultaneous OpenVPN instances |
| Security Features | - Stateful firewall - DMZ - Port forwarding - MAC filtering - Inbound/outbound traffic control - VPN passthrough - HTTPS access - SSH access - Attack prevention (DDOS, port scan) |
| Industrial Protocols | - Modbus TCP/RTU Gateway - MQTT - DNP3 Outstation - IEC 60870-5-104 |
| Remote Management | - Web UI (HTTP/HTTPS) - SSH - CLI - SMS control - SNMP v1/v2c/v3 - TR-069 - Teltonika RMS - Firmware Over The Air (FOTA) |
| Power | - Input: 9-50 VDC - PoE (passive) on LAN1 - 2-pin power connector - Power consumption: Idle < 3.9W, Max < 12.3W |
| Physical Characteristics | - Dimensions: 115 x 44.2 x 95.1 mm - Weight: 460g - Material: Anodized aluminum - Mounting: DIN rail, wall, flat surface - Operating temperature: -40°C to 75°C - Storage temperature: -45°C to 80°C - Humidity: 10-90% non-condensing - IP Rating: IP30 |
| Certifications | - CE - FCC - UKCA - RoHS - WEEE - E-Mark - Carrier certifications: AT&T, Verizon, T-Mobile, Rogers - PTCRB - GCF |
Roaming IoT SIM Cards With Fixed, Public IP Address
Our roaming IoT SIM cards provide multi-network SIM connectivity on O2, EE and Vodafone networks (3 mobile available as an uplift). Once connected they will have a fixed, public IP address so the 4G router being used can be communicated to directly from the Internet and port forwarding and VPN services can be easily configured in the router. If you do not need remote access to your router, but still want the advantage of a multi-network SIM card for enhanced connectivity then we also offer multi-network SIM’s with a dynamic IP address.| Inclusive Data | Monthly Rental | More Details |
|---|---|---|
| 1GB | £12.00 | Click Here |
| 2GB | £14.50 | Click Here |
| 5GB | £22.00 | Click Here |
| 10GB | £30.00 | Click Here |
Roaming SIM's with Dynamic IP Address
Our dynamic IP multi-network SIM cards provide the reliability you need for your mission-critical connectivity by providing roaming between O2, Vodafone and EE networks. (3 mobile available for an extra charge). These SIM cards will provide a reliable 4G internet service with built-in failover to alternative networks. These dynamic IP SIM cards cannot be used for remote access because they do not have a public fixed IP address.| Inclusive Data | Monthly Rental | More Details |
|---|---|---|
| 1GB | £5.00 | Click Here |
| 2GB | £8.00 | Click Here |
| 5GB | £18.50 | Click Here |
| 10GB | £25.00 | Click Here |
