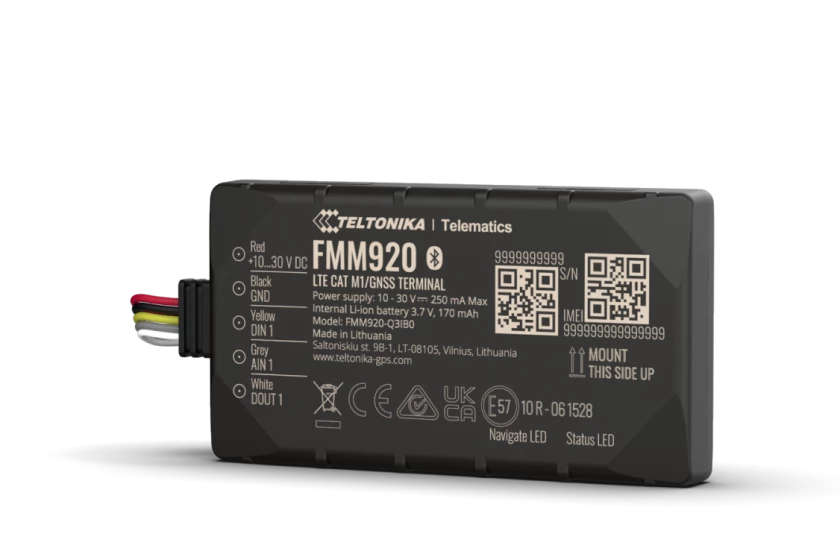

Teltonika FMM920
Teltonika FMM920 is a small and smart tracker with Bluetooth connectivity, internal High Gain GNSS and GSM antennas and an integrated backup battery. The 4G Cat M1 technology offers much higher bandwidth, lower latency and improved spectrum efficiency.
The model is compact, reliable, accurate and enduring. All the interfaces it has are more than enough for basic tracking. Digital Input can be used for ignition, door or alarm button status monitoring, while vehicle remote immobilizing may be achieved by using the Digital Output of the device. At the same time, Analog Input extends device usage scenarios with temperature, humidity, liquid level monitoring and many more.
Key Features
- 4G LTE Cat M1 connectivity for improved bandwidth and lower latency
- Compact and durable design with internal high-gain GNSS and GSM antennas
- Integrated backup battery for continuous operation
- Bluetooth connectivity for easy configuration and diagnostics
- Green driving, overspeeding, and excessive idling detection
- Jamming detection and remote vehicle immobilization
- GNSS fuel counter, unplug detection, and towing detection
- Crash detection, geofencing, and various sleep modes
- Easy integration into fleet management and tracking applications
£79.00 Excl VAT
Teltonika FMM920 is a small and smart tracker with Bluetooth connectivity, internal High Gain GNSS and GSM antennas and an integrated backup battery. The 4G Cat M1 technology offers much higher bandwidth, lower latency and improved spectrum efficiency.
The model is compact, reliable, accurate and enduring. All the interfaces it has are more than enough for basic tracking. Digital Input can be used for ignition, door or alarm button status monitoring, while vehicle remote immobilizing may be achieved by using the Digital Output of the device. At the same time, Analog Input extends device usage scenarios with temperature, humidity, liquid level monitoring and many more.
All of that brings unquestionable value to numerous market segments and societies, countries’ budgets and the global economy overall. It can be perfectly adapted to any fleet, to any transportation. The far-reaching experience of the FMM920 predecessor shows that it is a perfect choice for basic track & trace and fleet management.
| MODULE | |
| Name | FMM920-Q3IB0: Quectel BG95-M3 with Teltonika TM2500 |
| Technology | LTE Cat M1/NB-IoT/GSM/GPRS/GNSS/BLUETOOTH |
| GNSS | |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS |
| Receiver | 33 channel |
| Tracking sensitivity | -165 dBM |
| Accuracy | < 3 m |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
| CELLULAR | |
| Technology | LTE Cat M1/NB-IoT/GSM |
| 2G bands | BG95-M3: B2/B3/B5/B8 |
| 4G bands | Cat M1: B1/B2/B3/B4/B5/B8/ B12/B13/B18/B19/ B20/B25/B26/B27/ B28/B66/B85 Cat NB2: B1/B2/B3/B4/B5/B8/ B12/B13/B18/B19/ B20/B25/B28/B66/ B71/B85 |
| Data transfer | BG95: LTE: Max. 588Kbps (DL)/Max.1119Kbps (UL) GPRS: Max. 107Kbps (DL)/Max. 85.6Kbps (UL |
| Data support | SMS (text/data) |
| POWER | |
| Input voltage range | 10 – 30 V DC with overvoltage protection |
| Back-up battery | 170 mAh Li-Ion battery (0.63 Wh) |
| Power consumption | At 12V < 2 mA (Ultra Deep Sleep) At 12V < 3 mA (Deep Sleep) At 12V < 8 mA (Online Sleep) At 12V < 12 mA (GPS Sleep) At 12V < 28 mA (nominal) |
| BLUETOOTH | |
| Specification | 4.0 + LE |
| Supported peripherals | Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support |
| INTERFACE | |
| Digital Inputs | 1 |
| Digital Outputs | 1 |
| Analog Inputs | 1 |
| GNSS antenna | Internal High Gain |
| Cellular antenna | Internal High Gain |
| USB | 2.0 Micro-USB |
| LED indication | 2 status LED lights |
| SIM | Micro-SIM |
| Memory | 128MB internal flash memory |
| PHYSICAL SPECIFICATION | |
| Dimensions | 79 x 43 x 12 mm (L x W x H) |
| Weight | 54 g |
| OPERATING ENVIRONMENT | |
| Operating temperature (with battery) | -20 °C to +40 °C |
| Operating temperature (without battery) | -40 °C to +85 °C |
| Storage temperature (without battery) | -40 °C to +85 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP54 |
| Battery charge temperature | 0 °C to +45 °C |
| Battery discharge temperature | -20 °C to +60 °C |
| Battery storage temperature | -20 °C to +35 °C for 1 month -20 °C to +30 °C for 6 months |
| FEATURES | |
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and firmware update | FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration) |
| SMS | Configuration, Events, DOUT control, Debug |
| GPRS commands | Configuration, DOUT control, Debug |
| Time Synchronization | GPS, NITZ, NTP |
| Fuel monitoring | LLS (Analog), OBDII dongle |
| Ignition detection | Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (OBDII dongle) |
| CERTIFICATION & APPROVALS | |
| Regulatory | FMM920-Q3IB0: CE/RED, E-Mark, PTCRB (in progress), FCC, RCM, RoHS, REACH |
Teltonika FMM920 Overview
The Teltonika FMM920 is a compact and intelligent 4G LTE Cat M1 GPS tracker designed for vehicle tracking and fleet management. It features Bluetooth connectivity, internal high-gain GNSS and GSM antennas, and an integrated backup battery.
The FMM920 offers a range of advanced features, including green driving, over speeding detection, jamming detection, GNSS fuel counter, remote vehicle immobilization, excessive idling detection, unplug detection, towing detection, crash detection, geofencing, and various sleep modes.
The device’s 4G Cat M1 technology provides higher bandwidth, lower latency, and improved spectrum efficiency compared to previous cellular generations. It can be easily integrated into various fleet management and tracking applications, making it suitable for a wide range of market segments.
With its compact size, reliability, accuracy, and durability, the Teltonika FMM920 is a popular choice for basic track and trace, as well as advanced fleet management solutions.
We can offer multi network SIM cards with low usage data plans ideal for use with Teltonika GPS Trackers. Contact us for details.
