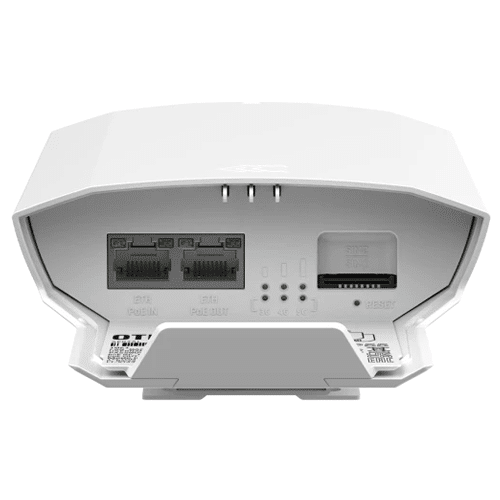

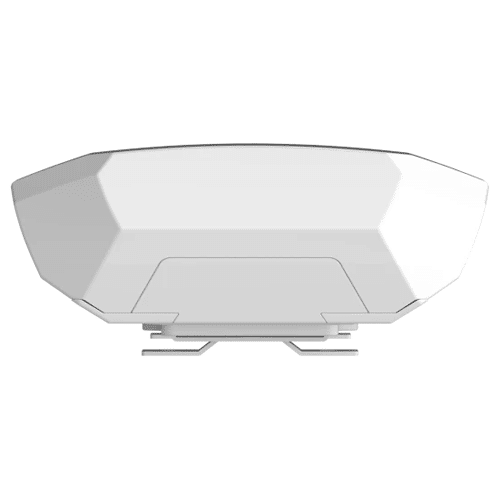

Teltonika OTD500 Weatherproof 5G Router (POE IN / POE OUT)
The Teltonika OTD500 is a robust outdoor 5G router designed for mission-critical connectivity in challenging environments. Featuring advanced 5G technology, dual SIM support, and IP55 weatherproof construction, this router delivers high-speed internet access for industrial, remote, and mobile applications.
Key Features:
- Advanced 5G Connectivity: Ultra-fast download speeds up to 3.4 Gbps with support for both SA and NSA modes.
- Rugged Outdoor Design: IP55 weatherproof rating and operational range from -40°C to +55°C for harsh environments.
- Dual SIM Redundancy: Two Mini SIM card slots with automatic network switching for uninterrupted connectivity.
- Versatile Networking: Equipped with 2x Gigabit Ethernet ports and Power over Ethernet (PoE) support.
- Low Power, High Performance: Energy-efficient design with idle consumption <2.5W and maximum <9W, ideal for remote deployments.
£325.00 Excl VAT
OTD500
The Teltonika OTD500 is a rugged outdoor 5G router engineered for uncompromising connectivity in the most demanding environments. Housed in an IP55-rated enclosure, this router stands up to harsh weather conditions, making it the ideal choice for outdoor applications such as remote monitoring, IoT deployments, and mission-critical internet solutions.Leveraging cutting-edge 5G technology, the OTD500 supports both standalone (SA) and non-standalone (NSA) modes, delivering blazing-fast download speeds of up to 3.4 Gbps and upload speeds reaching 900 Mbps. The router’s dual SIM card slots, coupled with eSIM capability, provide exceptional network flexibility and redundancy, ensuring uninterrupted service even in areas with challenging signal conditions.
Key Features
- High-Speed 5G Connectivity: Supports 5G Sub-6GHz with up to 3.4 Gbps download and 900 Mbps upload speeds
- Dual SIM + eSIM: Two physical SIM slots and eSIM support with automatic switching for enhanced reliability
- Power over Ethernet (PoE): Simplifies installation with both PoE-in and PoE-out support
- Robust Design: IP55-rated housing for outdoor deployment in extreme conditions
- Versatile Networking: Features two Gigabit Ethernet ports for flexible connectivity options
- Wide Operating Temperature: Functions effectively from -40°C to +55°C
Technical Specifications
Mobile Connectivity:
- 5G Sub-6GHz SA/NSA with 4×4 MIMO
- 4G LTE Cat 19 support
- 3G fallback capability
Network Interfaces:
- 2 x RJ45 Gigabit Ethernet ports (10/100/1000 Mbps)
- PoE-in: 802.3af/at (42.5 – 57 VDC, max 23W)
- PoE-out: 802.3af (42.5 – 57 VDC, max 15W)
SIM Support:
- 2 x Mini SIM slots (2FF)
- eSIM with up to 7 profiles
Antenna:
- 4 x internal antennas
- Frequency range: 617-960/1695-2690/3300-4200/4200-5000MHz
- Gain: <4.9 dBi, omnidirectional
Hardware:
- CPU: MediaTek, Dual-Core, 880 MHz, MIPS1004Kc
- RAM: 256 MB DDR3
- Storage: 16 MB serial NOR flash, 256 MB serial NAND flash
- TPM 2.0 for enhanced security
Physical:
- Dimensions: 110 x 49.30 x 235 mm (W x H x D)
- Weight: 385 g
- Casing: Plastic (PC+ASA)
Power Consumption:
- Idle: <2.5 W
- Max: <9 W
- PoE Max: <24 W
Environmental:
- Operating temperature: -40°C to 55°C
- IP55 ingress protection rating
Management:
- RutOS (OpenWrt based Linux OS)
- Remote Management System (RMS) compatible
- Web-based interface
The Teltonika OTD500 combines industrial-grade durability with state-of-the-art 5G performance, making it the go-to solution for businesses requiring reliable, high-speed connectivity in challenging outdoor environments.
