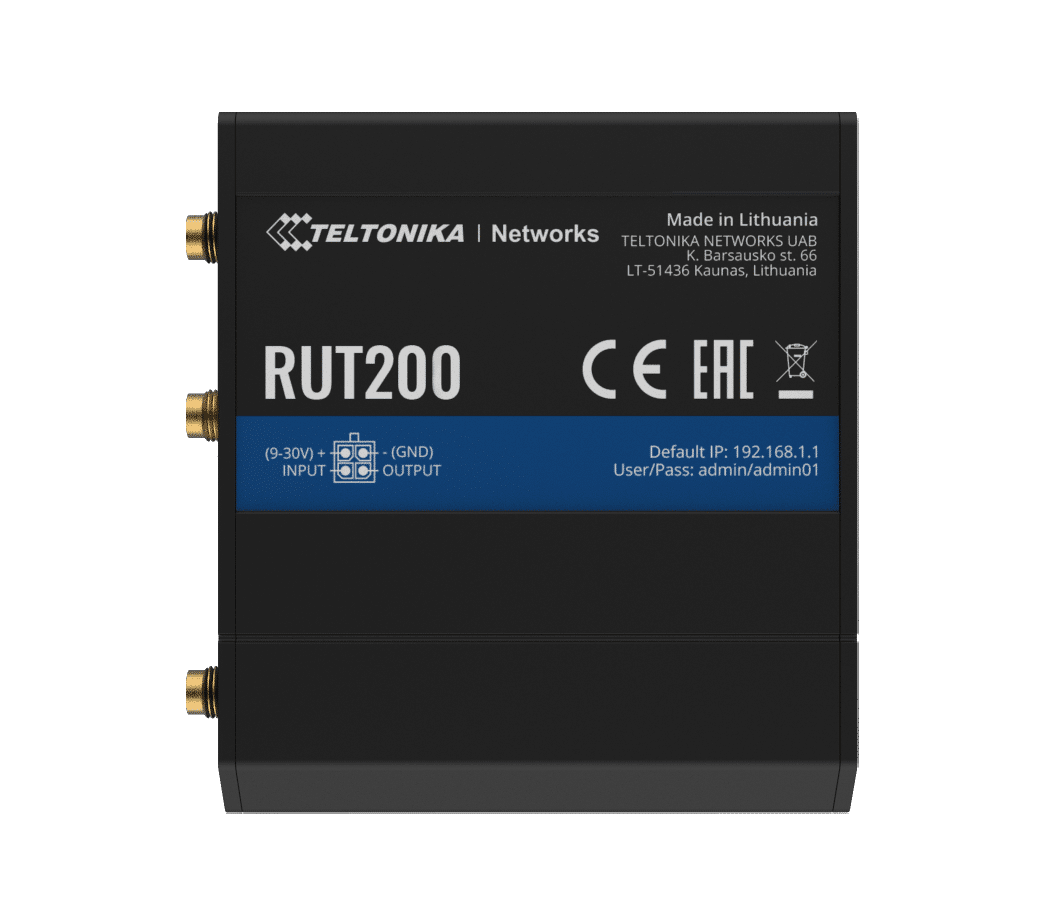

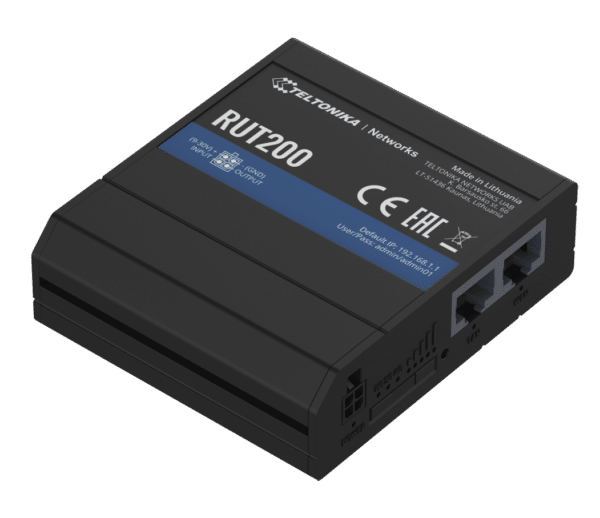

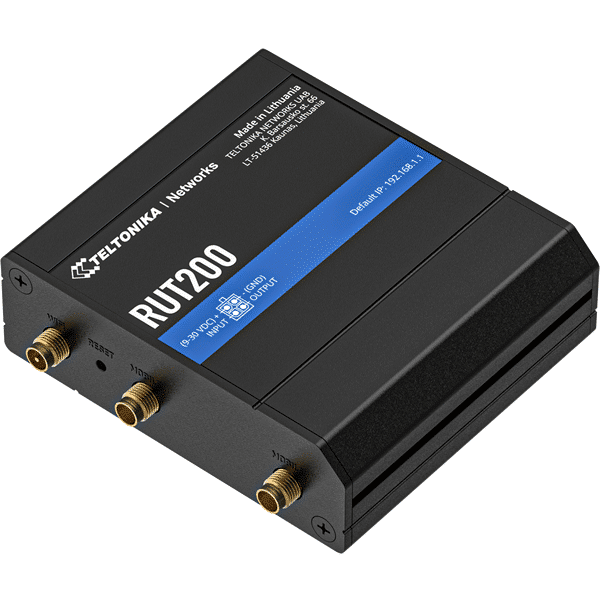

Teltonika RUT200 Industrial Cellular Router LTE 4G


Teltonika RUT200Compact LTE 4G Router

  • Embedded 4G modem
    • 4G (LTE-FDD): B1, B3, B5, B7, B8, B20, B28
    • 4G (LTE-TDD): B38, B40, B41
    • 3G: B1, B5, B8
    • 2G: B3, B8
  • 2 x Ethernet Ports
  • 802.11n WiFi

PDFTeltonika RUT200 Flyer

PDFTeltonika RUT200 Datasheet

BUY TELTONIKA RMS CREDITS

Teltonika Discounted Price



£86.00 Excl VAT

Do you need a Fixed IP SIM Card?

CALL US to discuss volume or project pricing 01937 534914

Teltonika RUT200 4G LTE Router.

Teltonika RUT200 is the entry level, low cost, compact M2M 4G router that provides basic 4G modem connectivity with 2 x Ethernet Ports and WiFi.

Simple to configure and use, the RUT240 provides a useful solution for remote access and monitoring.

If you need extra Ethernet ports then the RUT901 provides 4 x Ethernet LAN ports and if you need serial interface or GPS then the RUT906 will provide an excellent option.

In the Box

  • 1 x RUT200 Compact LTE 4G Router
  • 1 x UK Mains PSU
  • 2 x Elbow Joint Cell Antennas
  • 1 x Elbow Joint WiFi Antenna

RUT200 Compact 4G Router Specification

MOBILE

Mobile module 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
Status Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
Black/White list Operator black/white list
Band management Band lock, Used band status display
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Router assigns its mobile WAN IP address to another device on LAN
Multiple PDN (optional) Possibility to use different PDNs for multiple network access and services (not available in standard FW)

WIRELESS
Wireless mode IEEE 802.11b/g/n, Access Point (AP), Station (STA)
WiFi security WPA2-Enterprise – PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
SSID SSID stealth mode and access control based on MAC address
WiFi users Up to 50 simultaneous connections
Wireless Hotspot Captive portal (Hotspot), internal/external Radius server, built in customizable landing page

ETHERNET
WAN 1 x WAN port (can be configured to LAN) 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
LAN 1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

NETWORK
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, RIPng, OSPF6)
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake On Lan (WOL)
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules
DHCP Static and dynamic IP allocation, DHCP Relay, Relayd
QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supported >25 service providers, others can be configured manually
Network backup VRRP, Mobile, Wired and WiFi WAN options, each of which can be used as backup, using automatic Failover
Load balancing Balance your internet traffic over multiple WAN connections
SSHFS (optional) Possibility to mount remote file system via SSH protocol (not available in standard FW)

SECURITY
Authentication Pre-shared key, digital certificates, X.509 certificates
Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port and tag based VLAN separation
Mobile quota control Set up custom data limits for the SIM card
WEB filter Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter

VPN

OpenVPN Multiple clients and server can be running simultaneously, 12 encryption methods
OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
IPsec IKEv1, IKEv2, supports up to 4 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)
GRE GRE tunnel
PPTP, L2TP Client/Server services can run simultaneously
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the programs’ code
SSTP SSTP client instance support
ZeroTier VPN
WireGuard WireGuard VPN client and server support

MODBUS

MODBUS TCP SLAVE
ID filtering Respond to one ID in range [1;255] or any
Allow Remote Access Allow access through WAN
Custom registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality
MODBUS TCP MASTER
Supported functions 01, 02, 03, 04, 05, 06, 15, 16
Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)
MODBUS DATA TO SERVER
Protocol HTTP(S), MQTT, Azure MQTT
MQTT GATEWAY
MQTT gateway Allows sending commands and receiving data from MODBUS Master through MQTT broker
MONITORING & MANAGEMENT
WEB UI HTTP/HTTPS, status, configuration, FW update, CLI ,troubleshoot, event log, system log, kernel log
FOTA Firmware update from sever, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call Reboot, Status, WiFi on/off, Mobile data on/off, Output on/off
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP trap
JSON-RPC Management API over HTTP/HTTPS
MODBUS MODBUS TCP status/control
RMS Teltonika Remote Management System (RMS)

IoT PLATFORMS
Cloud of Things Allows monitoring of: Device data, Mobile data, Network info, Availability
ThingWorx Allows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP
Azure IoT Hub Can send device IP, Number of bytes send/received/ 3G connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, Sim State, PIN state, GSM signal, WCDMA RSCP WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server

SYSTEM CHARACTERISTICS
CPU Mediatek MIPS 24Kc 580 MHz
RAM 128 MB, DDR2
FLASH storage 16 MB, SPI Flash
FIRMWARE / CONFIGURATION
WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup, restore point
FOTA Update FW/configuration from server
Teltonika RMS Update FW/configuration for multiple devices
Keep settings Update FW without losing current configuration
FIRMWARE CUSTOMIZATION
Operating system RutOS (OpenWrt based Linux OS)
Supported languages Busybox shell, Lua, C, C++
Development tools SDK package with built environment provided

INPUT/OUTPUT
Input 1 x Digital input, 0 – 5 V detected as logic low, 8 – 30 V detected as logic high
Output 1 x Digital open collector output, max output 30 V, 300 mA
Events SMS, EMAIL, RMS

POWER
Connector 4 pin industrial DC power socket
Input voltage range 9 – 30 VDC, reverse polarity protection, surge protection >33 VDC 10us max
PoE (passive) Passive PoE over spare pairs (available from HW revision 0007 and batch number 0010). Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt
Power consumption < 6.5 W Max
PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)
Ethernet 2 x RJ45 ports, 10/100 Mbps
I/O’s 1 x Digital Input, 1 x Digital Output on 4 pin power connector
Status LEDs 3 x Connection type status LEDs, 5 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED
SIM 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V, external SIM holder
Power 1 x 4 pin DC connector
Antennas 2 x SMA for LTE, 1 x RP-SMA for WiFi antenna connectors
Reset Reboot/Factory reset button
PHYSICAL SPECIFICATION
Casing material Aluminium housing with DIN rail mounting option, plastic panels
Dimensions (W x H x D) 83 x 25 x 74 mm
Weight 125 g
Mounting options Bottom and sideways DIN rail mounting slots

OPERATING ENVIRONMENT
Operating temperature -40 °C to 75 °C
Operating humidity 10% to 90% non-condensing
Ingress Protection Rating IP30
REGULATORY & TYPE APPROVALS
Regulatory CB

SAFETY
Standards IEC 62368-1:2018 (CB Scheme)

In the Box

  • 1 x RUT200 Compact LTE 4G Router
  • 1 x UK Mains PSU
  • 2 x Elbow Joint Cell Antennas
  • 1 x Elbow Joint WiFi Antenna

RUT200 Overview

Equipped with 4G LTE, Wi-Fi, and two Ethernet ports, the RUT200 is perfect to quickly set up primary and backup connectivity with remote management capabilities.

Due to its compact size, industrial design, and I/O port, this model is very suitable in manufacturing, automation, transportation, and other industrial application scenarios that require mission-critical connectivity in rigorous conditions.

Key Hardware Features

  • Mobile 4G/LTE (Cat 4), 3G, 2G
  • CPU Mediatek MIPS 24Kc 580MHz
  • Storage 16 MB Flash
  • Memory 128 MBytes RAM
  • Powering option 4 pin power socket, 9-30 VDC
  • SIM 1 x External SIM holder (2FF)
  • Antenna connectors 2 x SMA for mobile, 1 x RP-SMA for WiFi
  • Ethernet 2 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN), 1 x LAN
  • WiFi IEEE 802.11b/g/n, Access point (AP), Station (STA)
  • Inputs/Outputs On 4 pin socket: 1 x Digital input, 1 x Digital open collector output
  • Status LEDs 3 x Connection type, 5 x Signal strength, 2 x Ethernet, 1 x Power
  • Operating temperature -40 °C to 75 °C
  • Housing Aluminium housing with DIN rail mounting option, plastic panels
  • Dimensions (W x H x D) 83 x 25 x 74 mm
  • Weight 131 g

CLICK HERE to view all Teltonika Router Datasheets

RUT200 Flyer

RUT200 Datasheet



Below is a quick video guide showing a basic configuration for the RUT200 router (with RUTOS 7.05).  It shows initial login, changing the admin password (required), configuring the APN, Port Forwarding (assuming the use of a fixed IP SIM Card), enabling remote admin and ping reboot.

AVAILABLE VERSIONS



We also stock Teltonika Network Switches and Access Points so whether you need to extend the WiFi of the RUT200 or add extra managed or unmanaged ports or even add a POE switch then please contact us for information and pricing.

Our most popular POE switches are the TSW200 unmanaged POE switch and the TSW202 Managed POE switch.  If you need a WiFi Access Point then the TAP200 works seamlessly with the RUT200 and if you need a faster 5G router then the RUTX50 is the ideal choice for reliable and secure 5G Internet.
