RUT260
Teltonika RUT260

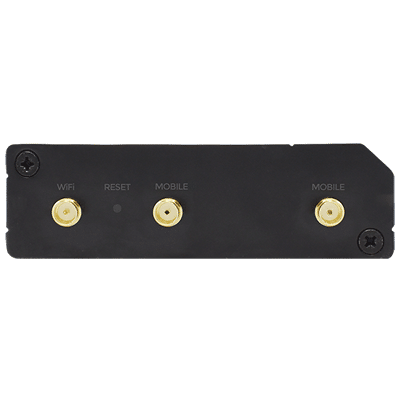

RUT260 antenna ports
RUT260
Teltonika RUT260
RUT260 antenna ports
, ,

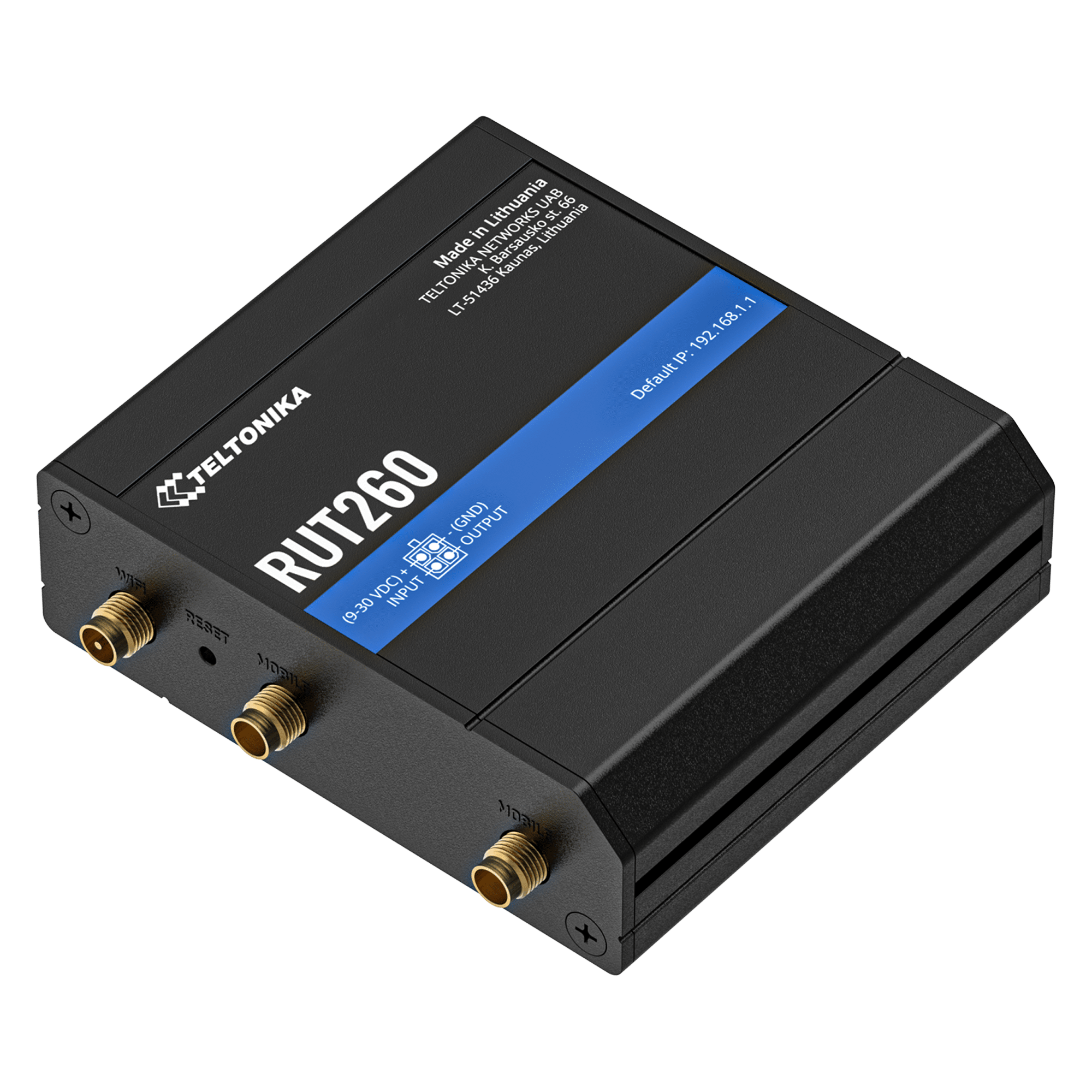

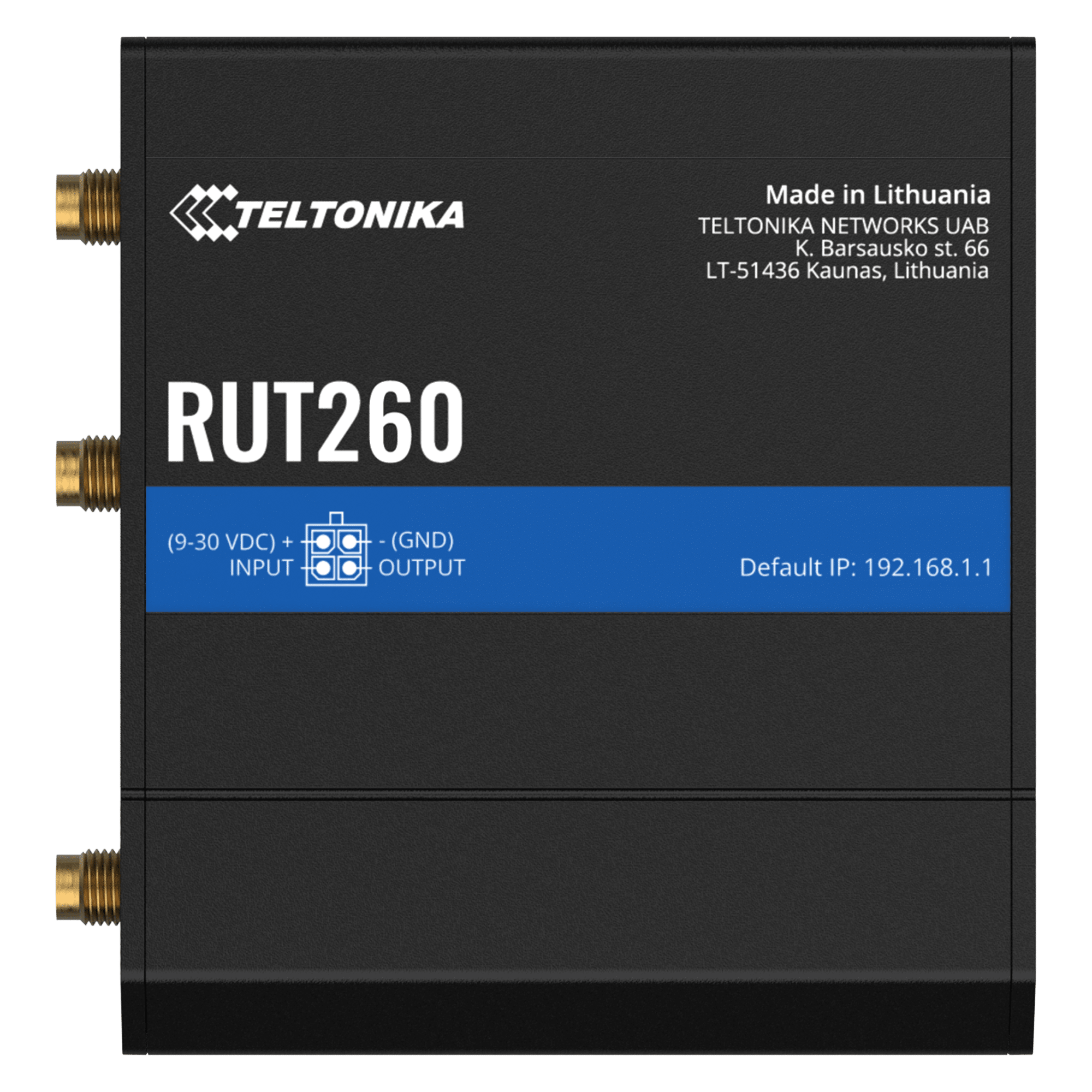

Teltonika RUT260 Compact CAT6 LTE 4G Router

RUT260 Key Highlights
  • LTE CAT 6: Cellular speeds of up to 300Mbps with carrier aggregation
  • WAN FAILOVER: Automatically switches to an available backup connection
  • 2 x 10/100 Mbps Ethernet ports, Digital I/Os
  • Small in size and easy to install

£122.00 Excl VAT

CALL US to discuss volume pricing 01937 534914
Do you need a Fixed IP SIM Card?

Request A Quote Or Project Pricing

Compact and Reliable Connectivity for Industrial Applications

The Teltonika RUT260 is a high-performance LTE CAT 6 cellular router designed for seamless WAN failover and robust connectivity. Combining the best features of the RUT240 and RUT360, this compact device is ideal for IoT, industrial, and M2M applications. With speeds of up to 300 Mbps, advanced security features, and support for multiple industrial protocols, the RUT260 is the perfect choice for reliable and fast networking solutions.

Key Features

  • LTE CAT 6 Connectivity: Achieves cellular speeds of up to 300 Mbps with carrier aggregation.
  • WAN Failover: Ensures uninterrupted connectivity by automatically switching to a backup connection.
  • Advanced Security: Supports WPA3-EAP, WPA2-Enterprise, and other encryption standards for secure wireless communication.
  • Compact Design: Lightweight and small form factor for easy installation in space-constrained environments.
  • Industrial Protocol Support: Compatible with MQTT, SNMP, Modbus, and more for IoT applications.

Technical Specifications

Mobile Connectivity

  • LTE CAT 6 Speeds: Up to 300 Mbps download / 50 Mbps upload.
  • 3G Speeds: Up to 42 Mbps download / 5.76 Mbps upload.
  • Status Monitoring: Signal strength (RSSI, SINR), data sent/received, network type, operator state.
  • SMS Features: SMS scheduling, SMS-to-email functionality, auto-reply options.

Wireless Features

  • Wireless Mode: IEEE 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA).
  • Wi-Fi Security: WPA3-EAP, WPA2-PSK, WPA2-Enterprise PEAP, AES encryption.
  • Connections: Supports up to 50 simultaneous Wi-Fi users.
  • QR Code Generator: Simplifies network access for users by scanning a QR code.

Ethernet Ports

  • WAN Port: 1 x WAN port (10/100 Mbps).
  • LAN Port: 1 x LAN port (10/100 Mbps).

Network Features

  • Routing Protocols: Static routing, Dynamic routing (BGP, OSPF v2), Policy-based routing.
  • Network Backup Options: VRRP failover support with multiple WAN connections.
  • Firewall Protection: Advanced firewall rules for traffic management and attack prevention.

Physical Design & Power Options

  • Dimensions: Compact size – 83 x 25 x 74 mm.
  • Weight: Lightweight at only 130 g.
  • Power Supply Options: Passive PoE or DC power input (9–30 V).

Why Choose Teltonika RUT260?

The Teltonika RUT260 is an excellent choice for industrial-grade connectivity in IoT environments. Its compact design makes it easy to install while offering advanced features like LTE CAT 6 speeds, WAN failover capabilities, and support for multiple industrial protocols. Whether you’re managing remote devices or ensuring reliable internet access in challenging environments, the RUT260 delivers unmatched performance and reliability.



We also stock the Teltonika RUT361 CAT6 LTE 4G Router.

SKU: TELTONIKA-RUT260-N Categories: , , Tags: , , , Brand:

Teltonika RUT260 Technical Specification Table

Feature Category Feature Specification
Mobile Module 4G LTE Cat 6 Up to 300 Mbps DL / 50 Mbps UL; 3G up to 42 Mbps DL / 5.76 Mbps UL
3GPP Release Release 12
Status IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD Supports sending and reading Unstructured Supplementary Service Data messages
Black/White list Operator black/white list (by country or separate operators)
Multiple PDN Possibility to use different PDNs for multiple network access and services
Band management Band lock, Used band status display
SIM PIN code management SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Router assigns its mobile WAN IP address to another device on LAN
Wireless Wireless mode 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
Wi-Fi security WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
SSID/ESSID ESSID stealth mode
Wi-Fi users Up to 50 simultaneous connections
Wireless Connectivity Features Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k)
Wireless MAC filter Allowlist, blocklist
Wireless QR code generator Once scanned, a user will automatically enter your network without needing to input login information
TravelMate Forward Wi-Fi hotspot landing page to a subsequent connected device
Ethernet WAN 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX
Ethernet 1 x ETH port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Network Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules, TTL target customisation
Firewall status page View all your Firewall statistics, rules, and rule counters
Ports management View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
Network topology Visual representation of your network, showing which devices are connected to which other devices
Hotspot Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
DHCP Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
QoS / SQM Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supported >25 service providers, others can be configured manually
DNS over HTTPS DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
Network backup VRRP, Wired options, each of which can be used as an automatic Failover, Wi-Fi WAN, Mobile
Load balancing Balance Internet traffic over multiple WAN connections
SSHFS Possibility to mount remote file system via SSH protocol
Traffic Management Real-time monitoring, wireless signal charts, traffic usage history
Security Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port and tag-based VLAN separation
Mobile quota control Mobile data limit, customizable period, start time, warning limit, phone number
WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Access control Flexible access control of SSH, Web interface, CLI and Telnet
SSL certificate generation Let's Encrypt and SCEP certificate generation methods
802.1x Port-based network access control server
VPN OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN Encryption DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
IPsec XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GRE GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
SSTP SSTP client instance support
ZeroTier ZeroTier VPN client support
WireGuard WireGuard VPN client and server support
Tinc Tinc offers encryption, authentication and compression in it's tunnels. Client and server support. Supported modes: Client, Server. Supported connection types: TCP
MODBUS MODBUS TCP Custom Registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality. Supported data formats: 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
Protocol HTTP(S), MQTT, Azure MQTT
Data to server Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature
Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Server through MQTT broker. Supported modes: Station, Outstation. Supported connection: TCP
DLMS Support DLMS - standard protocol for utility meter data exchange. Supported modes: Client. Supported connection types: TCP, COSEM: Allows to scan meter COSEM objects for automatic detection and configuration
API Teltonika Networks Web API Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data.
Monitoring & Management WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPC Management API over HTTP/HTTPS
RMS Teltonika Remote Management System (RMS)
ThingWorx Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions
Azure IoT Hub Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
AWS IoT Core Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality
System Characteristics CPU Mediatek, 580 MHz, MIPS 24KEc
RAM 128 MB, DDR2
FLASH storage 16 MB, SPI Flash
Firmware WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup, restore point
FOTA Update FW
RMS Update FW/configuration for multiple devices at once
Keep settings Update FW without losing current configuration
Factory settings reset A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration
Operating system RutOS (OpenWrt based Linux OS)
Supported languages Busybox shell, Lua, C, C++, and Python, Java in Package manager
Development tools SDK package with build environment provided
GPL customization You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
Package Manager The Package Manager is a service used to install additional software on the device
I/O Input 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
Output 1 x Digital Output, Open collector output, max output 30 V, 300 mA
Events Email, RMS, SMS; I/O juggler: Allows to set certain I/O conditions to initiate event
Power Connector 4-pin industrial DC power socket
Input voltage range 9 - 30 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive) Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Power consumption Idle: < 2 W, Max: < 6.5 W
Physical Interfaces Ethernet 2 x RJ45 ports, 10/100 Mbps
I/O’s 1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs 2 x Connection type status, 5 x Mobile connection strength, 1 x LAN status, 1 x WAN status, 1 x Power
SIM 1 x SIM slot (Mini SIM - 2FF), 1.8 V/3 V, external SIM holder, eSIM (Optional - different hardware required; contact your sales manager)
Power 1 x 4-pin power connector
Antennas 2 x SMA for LTE, 1 x RP-SMA for Wi-Fi
Reset Reboot/User default reset/Factory reset button
Physical Properties Casing material Aluminum housing, plastic panels
Dimensions (W x H x D) 83 x 25 x 74 mm
Weight 130 g
Mounting options DIN rail, wall mount, flat surface (all require additional kit)
Environmental Operating temperature -40 °C to 75 °C
Operating humidity 10% to 90% non-condensing
Ingress Protection Rating IP30
Regulatory Regulatory CE/RED, UKCA, UCRF, RCM, EAC, WEEE, RCM, R118
RUT260 Box Contents
  • Router RUT260
  • 9 W PSU
  • 2x Mobile antennas (swivel, SMA male)
  • 1x Wi-Fi antenna (swivel, RP-SMA male)
  • Ethernet cable (1.5 m)
  • SIM Adapter kit
  • QSG (Quick Start Guide)
  • Packaging box
