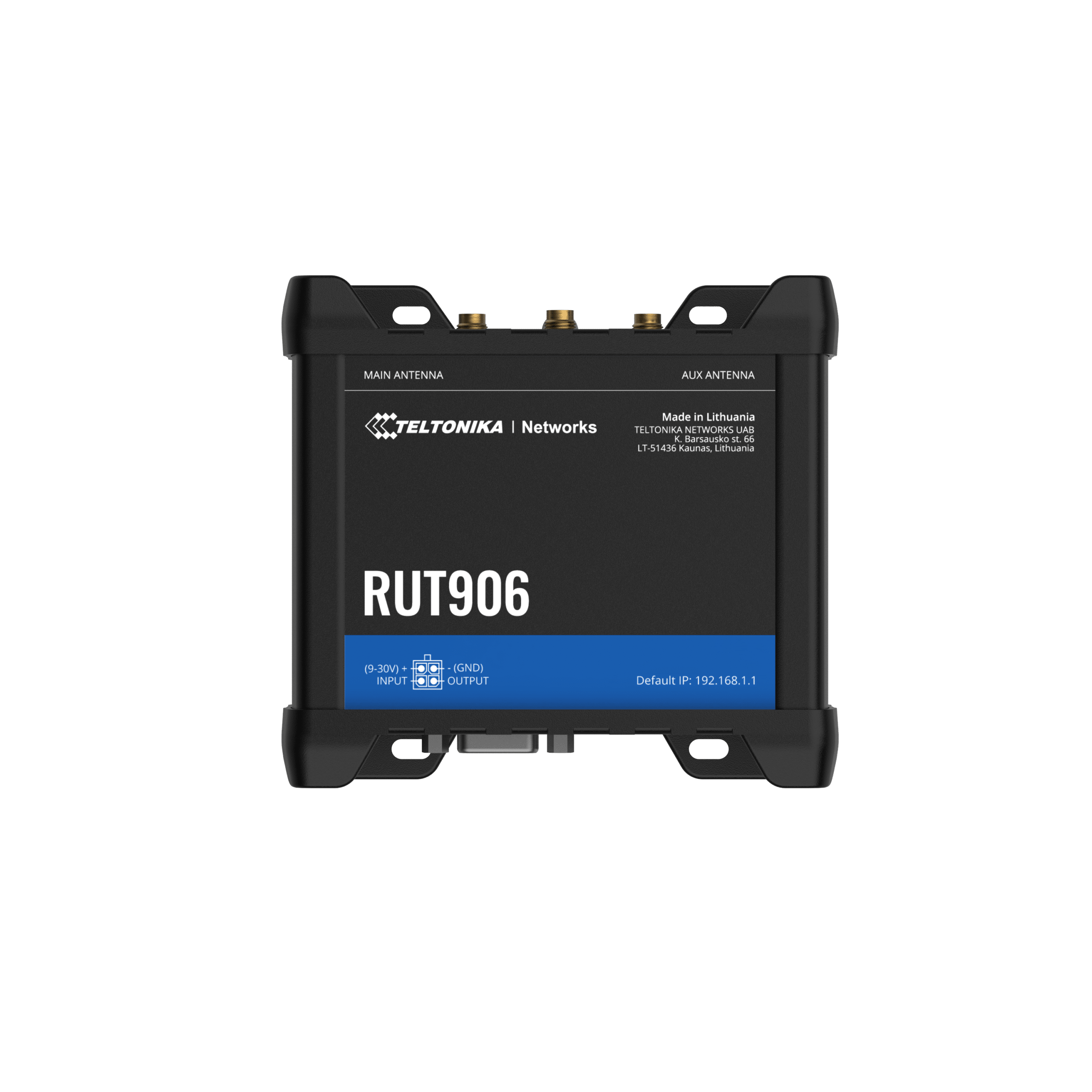

Teltonika RUT906 4G LTE Industrial Router

Teltonika RUT906 4G LTE Router

The Teltonika RUT906 4G router is ideal for industrial IoT applications, offering robust connectivity with dual SIM auto-failover, GNSS, and multiple Ethernet ports, ensuring continuous network availability and high performance. Its compatibility with various industrial protocols and the Teltonika Remote Management System (RMS) makes it a versatile and reliable choice for managing complex IoT environments.

Teltonika RUT906 Key Features

LTE up to 100 Mbps DL and 50 Mbps UL
DC-HSPA+ up to 42 Mbps DL and 5.76 Mbps UL
Multiple LTE FDD bands
Quadband UMTS and GSM
IEEE 802.11 b/g/n WiFi with 2×2 MIMO up to 300 Mbps IEEE 802.3 and IEEE 802.3u standards
Four Ethernet Ports (3 x LAN, 1 x WAN)
TELTONIKA RMS | RUT906 Datasheet

Teltonika Diamond Partner

£137.00 Excl VAT

CALL US to discuss volume pricing 01937 534914
Do you need a Fixed IP SIM Card?

Request A Quote Or Project Pricing

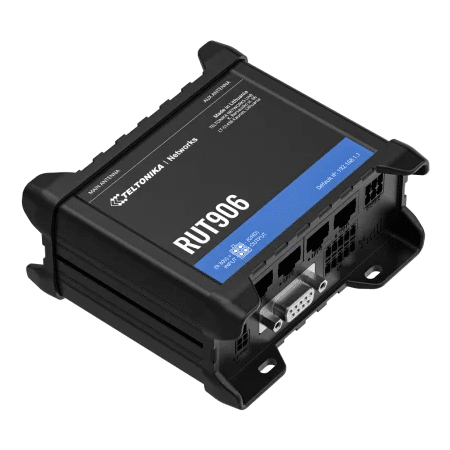

Teltonika RUT906 4G LTE Router

The Teltonika RUT906 is a robust 4G LTE industrial router designed for M2M / IoT applications where you need more than just reliable 4G Internet and LAN interfaces. It supports RS232 and RS485 serial interfaces, MQTT, BACnet, and multiple I/Os, ensuring versatile connectivity. Equipped with GNSS for precise location tracking, it features Dual SIM, auto-failover, and backup WAN for uninterrupted data flow.

The RUT906 offers reliable performance with a Mediatek 580 MHz CPU, 128 MB RAM, and 16 MB Flash storage. Ideal for industrial environments, it supports various protocols like HTTP(S), MQTT, and Azure IoT Hub, making it a comprehensive solution for modern IoT systems.

Teltonika RUT906 The Best Selling IOT 4G Router

Teltonika RUT906 Key Features

  • LTE up to 100 Mbps DL and 50 Mbps UL
  • DC-HSPA+ up to 42 Mbps DL and 5.76 Mbps UL
  • Multiple LTE FDD bands
  • Quadband UMTS and GSM
  • IEEE 802.11 b/g/n WiFi with 2×2 MIMO up to 300 Mbps IEEE 802.3 and IEEE 802.3u standards
  • Four Ethernet Ports (3 x LAN, 1 x WAN)

Teltonika RUT906 Overview

The Teltonika RUT906 is an industrial-grade 4G LTE cellular router designed for IoT and M2M applications. It offers robust connectivity options and failsafe features:

Connectivity

  • 4G LTE Cat 4: Up pto 150 Mbps download and 50 Mbps upload speeds
  • Dual SIM: Automatic failover between two SIM cards for redundancy
  • Wired Ports: 1 WAN port and 3 LAN ports (10/100 Mbps Ethernet)
  • Wi-Fi: Dual-band 2.4/5GHz 802.11 b/g/n with 2×2 MIMO (up to 300 Mbps)
  • Serial Interfaces: RS-232 and RS-485 for legacy equipment
  • GNSS: GPS/GLONASS/BeiDou/Galileo for location tracking

Supported Protocols

  • MQTT, BACnet, OPC UA, DNP3 for industrial protocols
  • IPv4, IPv6, TCP, UDP for networking
  • SMS, USSD for mobile communication

Failsafe Features

  • Backup WAN port for internet redundancy
  • Auto-failover between mobile and wired WAN connections
  • Dual SIM auto-switching based on signal, data limits, etc.

Security

  • Firewall, access control, port forwarding
  • VPN support (IPsec, OpenVPN, L2TP, PPTP)
  • Authentication via pre-shared keys, digital certificates

Management

  • Web UI, CLI, SMS control
  • Remote management via Teltonika RMS
  • Firmware over-the-air (FOTA) updates
  • Configuration profiles and backups

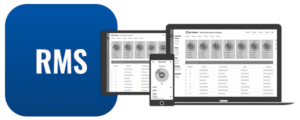

Teltonika RMS



The RUT906 is ideal for industrial automation, remote monitoring, transportation/fleet management, and smart city applications requiring reliable cellular connectivity with redundancy

Below is a quick video guide showing a basic configuration for the RUT906 router (with RUTOS 7.05).  It shows initial login, changing the admin password (required), configuring the APN, Port Forwarding (assuming the use of a fixed IP SIM Card), enabling remote admin and ping reboot.



If you do not require GPS or some of the advanced Digital I/O features of the Teltonika RUT906 4G Router then we also stock the Teltonika RUT901.

Compare Teltonika Routers

SKU: TELTONIKA-RUT906-N Categories: , , , Tags: , , , , , , , , , , , , , , , , , , , ,
Specification
MOBILE
Mobile module 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
SIM switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD Supports sending and reading Unstructured Supplementary Service Data messages
Black/White list Operator black/white list
Band management Band lock, Used band status display
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Router assigns its mobile WAN IP address to another device on LAN
WIRELESS
Wireless mode IEEE 802.11b/g/n, Access Point (AP), Station (STA)
WiFi security WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation
SSID/ESSID ESSID stealth mode
WiFi users Up to 100 simultaneous connections
Wireless Hotspot Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes
Wireless Connectivity Features Fast roaming (802.11r), Relayd
ETHERNET
WAN 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
LAN 3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
NETWORK
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules
DHCP Static and dynamic IP allocation, DHCP Relay
QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supported >25 service providers, others can be configured manually
Network backup WiFi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
Load balancing Balance Internet traffic over multiple WAN connections
SSHFS Possibility to mount remote file system via SSH protocol
SECURITY
Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block
Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port and tag-based VLAN separation
Mobile quota control Mobile data limit, customizable period, start time, warning limit, phone number
WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter
VPN
OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN Encryption DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
IPsec IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GRE GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN Method of building scalable IPsec VPNs
SSTP SSTP client instance support
ZeroTier RUT906 supports ZeroTier VPN client support
WireGuard WireGuard VPN client and server support
Tinc Tinc offers encryption, authentication and compression in its tunnels. Client and server support
BACNET
Supported connection types RS485, TCP
Supported modes Router
OPC UA
Supported modes Client, Server (planned)
Supported connection types TCP
DNP3
Supported modes TCP Station, Outstation
Supported connection types RS232, RS485, TCP, USB
MODBUS
Supported modes Server, Client
Supported connection types RS232, RS485, TCP, USB
Custom registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality
Supported data formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
DATA TO SERVER
Protocol HTTP(S), MQTT, Azure MQTT, Kinesis
MODBUS MQTT GATEWAY
Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Master through MQTT broker
MONITORING & MANAGEMENT
WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, WiFi on/off
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP Trap
JSON-RPC Management API over HTTP/HTTPS
MODBUS MODBUS TCP status/control
RMS Teltonika Remote Management System (Teltonika RMS Credits)
IOT PLATFORMS
Cloud of Things Allows monitoring of: Device data, Mobile data, Network info, Availability
ThingWorx Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength
Azure IoT Hub Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type
SYSTEM CHARACTERISTICS
CPU Mediatek, 580 MHz, MIPS 24Kc
RAM 128 MB, DDR2
FLASH storage 16 MB, SPI Flash
FIRMWARE / CONFIGURATION
WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA Update FW
RMS Update FW/configuration for multiple devices at once
Keep settings Update FW without losing current configuration
FIRMWARE CUSTOMIZATION
Operating system RutOS (OpenWrt based Linux OS)
Supported languages Busybox shell, Lua, C, C++, and Python, Java in Package manager
Development tools SDK package with build environment provided
LOCATION TRACKING
GNSS GPS, GLONASS, BeiDou, Galileo and QZSS
Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA NMEA 0183
NTRIP NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
Server software Supported server software TAVL, RMS
Geofencing Configurable multiple geofence zones
SERIAL
RS232 DB9 connector, RS232 (with RTS, CTS flow control), 300 to 115200 baud rate
RS485 RS485 Full Duplex (4 wires) and Half-Duplex (2 wires), 300-230400 baud rate
Serial functions Console, Serial over IP, Modem
USB
Data rate USB 2.0
Applications Samba share, USB-to-serial
External devices Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
Storage formats FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4
INPUT / OUTPUT
Input 1 x digital dry input (0 - 3 V), 1 x digital galvanically isolated input (0 - 30 V), 1 x analog input (0 - 24 V), 1 x Digital non-isolated input (on 4-pin power connector, 0 - 5 V detected as logic low, 8 - 30 V detected as logic high)
Output 1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30 V, 300 mA, on 4-pin power connector)
Events Email, RMS, SMS
I/O juggler Allows to set certain I/O conditions to initiate event
POWER
Connector 4-pin industrial DC power socket
Input voltage range 9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max
PoE (passive) Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 - 30 VDC
Power consumption < 2 W idle, < 7 W Max
PHYSICAL INTERFACES
Ethernet 4 x RJ45 ports, 10/100 Mbps
I/O's 2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector
Status LEDs 1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional)
Power 1 x 4-pin power connector
Input/output 1 x 10-pin industrial socket for inputs/outputs

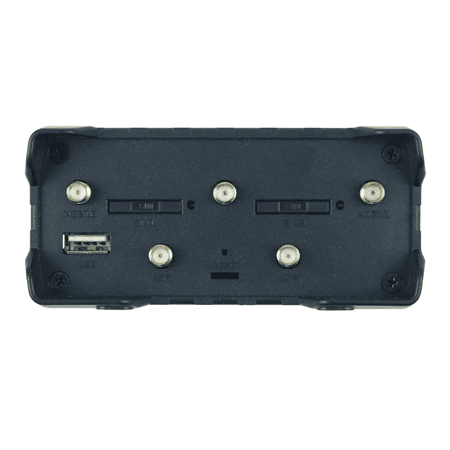

Antennas 2 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x SMA for GNSS
USB 1 x USB A port for external devices
RS232 1 x DB9 socket
RS485 1 x 6-pin industrial socket
Reset Reboot/User default reset/Factory reset button
PHYSICAL SPECIFICATION
Casing material Aluminium housing, plastic panels
Dimensions (W x H x D) 109.5 x 50 x 100 mm
Weight 295 g
Mounting options DIN rail (can be mounted on two sides), flat surface placement
OPERATING ENVIRONMENT
Operating temperature -40 °C to 75 °C
Operating humidity 10% to 90% non-condensing
Ingress Protection Rating IP30
REGULATORY & TYPE APPROVALS
Regulatory CE, UKCA, RCM, CB
EMI IMMUNITY
Standards EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021, EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, EN 301 489-19 V2.2.0, EN 301 489-52 V1.2.1
ESD EN 61000-4-2:2009
EFT EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port) EN 61000-4-5:2014+A1:2017
CS EN 61000-4-6:2014
DIP EN IEC 61000-4-11:2020
Radiated Immunity EN IEC 61000-4-3:2020
CE EN 62311
CB IEC 62368-1:2018
RF
Standards EN 301 908-1, EN 301 908-2, EN 301 908-13, EN 300 328
RUT906 PACKAGE CONTENTS
  • 1 x RUT906 Router
  • 1 x 9W PSU
  • 2 x LTE Antennas - MAGNETIC MOUNT - 3m cable, SMA Male
  • 2 x WiFi Antennas - MAGNETIC MOUNT - 3m cable,  RP-SMA Male
  • 1 x GNSS Antenna (ADHESIVE) SMA Male - 3m cable
  • 1 x RS485 Connector Block
  • 1 x IO Connector Block
  • 1 x Ethernet Cable (1.5m long)
  • 1 x SIM Adapter Kit

Teltonika Surface Mounting KitPart Number: PR2FK20MShort Name: Teltonika Surface Mounting Kit
View Product

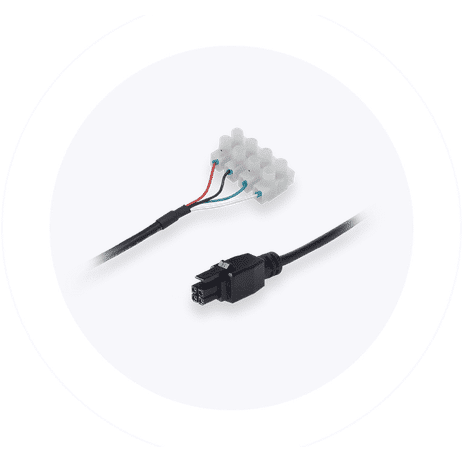

  Teltonika Power Cable with 4-Way Screw TerminalPart Number: PR5MEC12 Short Name: Teltonika Power Cable with 4-Way Screw Terminal
View Product
  Teltonika DIN Rail Kit for RUT9XX RUT2XX Series RoutersPart Number: PR5MEC00 Short Name: Teltonika DIN Rail Kit for RUT9XX RUT2XX Series Routers
View Product
  Teltonika RMS CreditsPart Number: RMS Credits Short Name: Teltonika RMS Credits
View Product



Roaming SIM Cards With Fixed, Public IP Address

Our roaming SIM cards provide multi-network SIM connectivity on O2, EE and Vodafone networks (3 mobile available as an uplift). Once connected they will have a fixed, public IP address so the 4G router being used can be communicated to directly from the Internet and port forwarding and VPN services can be easily configured in the router. If you do not need remote access to your router, but still want the advantage of a multi-network SIM card for enhanced connectivity then we also offer multi-network SIM’s with a dynamic IP address.
Inclusive Data Monthly Rental More Details
1GB £12.00 Click Here
2GB £14.50 Click Here
5GB £22.00 Click Here
10GB £30.00 Click Here
£7.50 per GB of data used over the contracted inclusive data. Payment by direct debit.

Roaming SIM's with Dynamic IP Address

Our dynamic IP multi-network SIM cards provide the reliability you need for your mission-critical connectivity by providing roaming between O2, Vodafone and EE networks. (3 mobile available for an extra charge). These SIM cards will provide a reliable 4G internet service with built-in failover to alternative networks. These dynamic IP SIM cards cannot be used for remote access because they do not have a public fixed IP address.
Inclusive Data Monthly Rental More Details
1GB £5.00 Click Here
2GB £8.00 Click Here
5GB £18.50 Click Here
10GB £25.00 Click Here
£7.50 per GB of data used over the contracted inclusive data. Payment by direct debit.

Based on 0 reviews

0.0 overall
0
0
0
0
0

Be the first to review “Teltonika RUT906 4G LTE Industrial Router”

There are no reviews yet.

You may also like…

Related products
