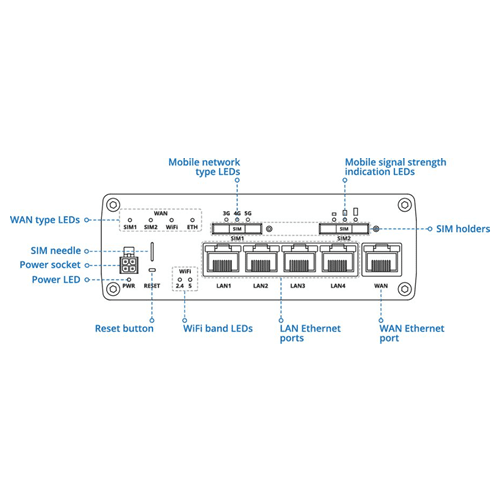

RUTM51 Ethernet Ports and SIM Slots
RUTM51 antenna connections
RUTM51
RUTM51 5G Router
RUTM51
Teltonika RUTM51 5G Router
RUTM51 Ethernet Ports and SIM Slots
RUTM51 antenna connections
RUTM51
RUTM51 5G Router
, , ,

Teltonika RUTM51 Industrial M2M / IoT 5G Router

Availability:

Out of stock

The Teltonika RUTM51 5G Router delivers unparalleled connectivity with lightning-fast 5G speeds, versatile network support, and robust security features. Ideal for businesses and tech enthusiasts, this industrial-grade router ensures reliable performance in demanding environments. Experience seamless internet access for remote work, IoT applications, and more with the advanced RutOS operating system.

Key Features

  • Blazing Fast 5G Speeds: Up to 3.4 Gbps download speeds.
  • Multi-Network Support: Compatible with 3G, 4G, and 5G networks.
  • Dual-Band WiFi: Strong connections on both 2.4 GHz and 5 GHz.
  • Industrial-Grade Design: Robust performance in extreme conditions.
  • Advanced Security: Comprehensive VPN and firewall features.
  • User-Friendly Interface: Easy setup and management through a web-based GUI.

NB : The RUTM51 supports CAT12 LTE 4G and does not include GPS/GNSS – If you need faster 4G (CAT20) or GPS/GNSS Then please select Teltonika RUTX50

STOCK DUE : December 2024

£275.00 Excl VAT

Out of stock

Request A Quote Or Project Pricing

Teltonika RUTM51 5G Router: Powering the Future of Connectivity

Step into the next generation of internet connectivity with the Teltonika RUTM51 5G Router. Engineered for businesses and tech enthusiasts who demand peak performance, this router combines cutting-edge 5G technology with unparalleled versatility.

Why Choose the RUTM51?

  • Blazing Fast 5G Speeds: Experience download speeds up to 3.4 Gbps
  • Unmatched Versatility: Seamlessly switch between 3G, 4G, and 5G networks
  • Dual-Band WiFi: Strong, stable connections on both 2.4 GHz and 5 GHz frequencies
  • Industrial-Grade Reliability: Robust performance even in challenging environments
  • Advanced Security Features: Keep your network protected with state-of-the-art security protocols
  • User-Friendly Management: Easy setup and control through an intuitive web interface

Perfect For:

  • Remote work setups
  • Smart home infrastructures
  • IoT applications
  • Industrial and enterprise networks
  • Backup internet solutions

Unleash the Power of RutOS

Powered by RutOS, a feature-rich operating system based on OpenWRT Linux, the RUTM51 offers:

  • Extensive customization options
  • Regular firmware updates
  • A wide array of networking features

Full Technical Specifications

Category Specification
Dimensions 132 x 44.2 x 95.1 mm
Housing Metal, IP30 rated
Mounting DIN rail
Operating Temperature -40°C to 75°C
Operating Humidity 10% to 90% non-condensing
Power Input 9-30 VDC
Power Adapter Input 100-240 VAC, Output 12 VDC, 1.5A, 4-pin plug
Cellular Connectivity 5G NR (SA/NSA): n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78
LTE-FDD: B1, B3, B5, B7, B8, B20, B28
LTE-TDD: B38, B40, B41
WCDMA: B1, B5, B8
WiFi IEEE 802.11b/g/n/ac
2.4 GHz and 5 GHz
Multiple SSID support
Interfaces 5x Gigabit Ethernet ports (4 LAN, 1 WAN)
1x USB 2.0 port
Dual SIM slots
Antennas 4x SMA for cellular
2x RP-SMA for WiFi
1x SMA for GNSS
Performance 5G Speed: Up to 3.4 Gbps (download)
4G Speed: LTE CAT18/19 support
Security VPN: OpenVPN, IPsec, GRE, PPTP, L2TP, DMVPN
Firewall: SPI, NAT, Port Forwarding, DMZ
Authentication: Local, RADIUS, LDAP, Active Directory
Management Web Interface: User-friendly GUI
Protocols: SNMP, TR-069, SSH, Telnet
Remote Management: Teltonika RMS support
Software Features OS: RutOS (based on OpenWRT)
Network Protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DHCP, DNS
Routing: Static, Dynamic (RIP, OSPF, BGP)
Other: Load balancing, Auto failover, QoS, VLAN
Regulatory Compliance CE: Compliant with EU directives
RoHS: Compliant

What’s in the Box?

  • Teltonika RUTM51 Router
  • Power adapter (18W)
  • 4x Mobile antennas (SMA male)
  • 2x WiFi antennas (RP-SMA male, 1.5m cable)
  • 1x GNSS antenna (SMA male, 3m cable)
  • Ethernet cable (1.5m)
  • SIM adapter kit
  • Quick Start Guide

Upgrade Your Network Today!

Experience the future of connectivity with the Teltonika RUTM51 5G Router. Whether you’re enhancing your home setup or powering a complex business network, the RUTM51 delivers the speed, reliability, and security you need in the 5G era.

Teltonika RUTM51 5G router delivers affordable, high-performance connectivity with low latency, dual SIM support and seamless failover, making 5G accessible for a wide range of industries. Built for reliability and futureproofing, it’s ready to power sectors like manufacturing, energy, and smart cities.

Do you need a bonded 5G router?  Teltonika is launching the RUTM52 dual modem 5G router which can have two simultaneous 5G connections for load balanced 5G, or 5G hot swap failover and when using the Bondix service you can created a high speed bonded 5G connection.



SKU: Teltonika-RUTM51-N Categories: , , , Tags: , , , , , , ,

Connectors

POWER SOCKET PINOUT

4 pin power socket pinout.png
Power Socket Pinout Schematic.png

Hardware installation

RUTM51 Hardware installation step 1.jpg
RUTM51 Hardware installation step 2.jpg
RUTM51 Hardware installation step 3.jpg
RUTM51 Hardware installation step 4.jpg
RUTM51 Hardware installation step 5.jpg
RUTM51 Hardware installation step 6.jpg
RUTM51 Hardware installation step 7.jpg
RUTM51 Hardware installation step 8.jpg

Configure your computer LAN (Windows)

1. Ensure the Network connection is Enabled. Go to Start — Control Panel — Network and Internet — Network and Sharing Center. Click on the Change adapter settings in the left panel, then right-click on Network Adapter, and select Enable.
2. Check if IP and DNS are obtained automatically. Right-click on Wireless Network Adapter and select Properties. Then select Internet Protocol Version 4 and click Properties. 3. If not selected, check to obtain an IP address and obtain DNS server address automatically. Click OK.
Configure your computer step 2.png

Configure your computer Wi-Fi (Windows)

1. Ensure the Wireless network connection is Enabled. Go to Start — Control Panel — Network and Internet — Network and Sharing Center. Click on the Change adapter settings in the left panel, then right-click on Wireless Network Adapter, and select Enable.
Configure your computer step 1.png
2. Check if IP and DNS are obtained automatically. Right-click on Wireless Network Adapter and select Properties. Then select Internet Protocol Version 4 and click Properties. 3. If not selected, check to obtain an IP address and obtain DNS server address automatically. Click OK.
Configure your computer step 2.png
4. Connect to a wireless network by right-clicking on Wireless Network Adapter and selecting Connect.
Configure your computer step 3.png
5. Choose the wireless network RUTM51 **** from the list and click Connect. Enter the Wi-Fi password located on the device's label.
Configure your computer step 4.png

Login to device

1. To enter the router's Web interface (WebUI), type http://192.168.1.1 into the URL field of your Internet browser. 2. When prompted for authentication enter the username admin and enter the password located on the device information label/engraving.
900px-Login to device step 1.png
3. After logging in, you must set a new password for security reasons. You will not be able to interact with the router’s WebUI until the default password is changed. The new password must consist of a minimum of 8 characters. Requirements: one uppercase letter, one lowercase letter, and one digit. 4. Next, the Configuration Wizard will start to help you set up some of the router's main operational parameters. 5. Finally, let's verify the Mobile signal strength. Go to the Status — Network page and pay attention to the Signal Strength indication. To achieve the best signal conditions and maximize cellular performance, try adjusting the antennas or changing the location of your device. You can find information on signal strength recommendations here.
Login to device step v1.png

SIM card recommendations

  • Before installing the SIM cards, please apply a thin layer of dielectric grease to the SIM card contacts for devices used in environments with high-vibration levels. This will help avoid SIM cards losing touch with the SIM slot and prevent unexpected failures.
  • Industrial Grade SIM cards are recommended for devices requiring a long lifespan used in environments with extreme temperatures, corrosive or extra humid climates, or hard-to-reach locations.
