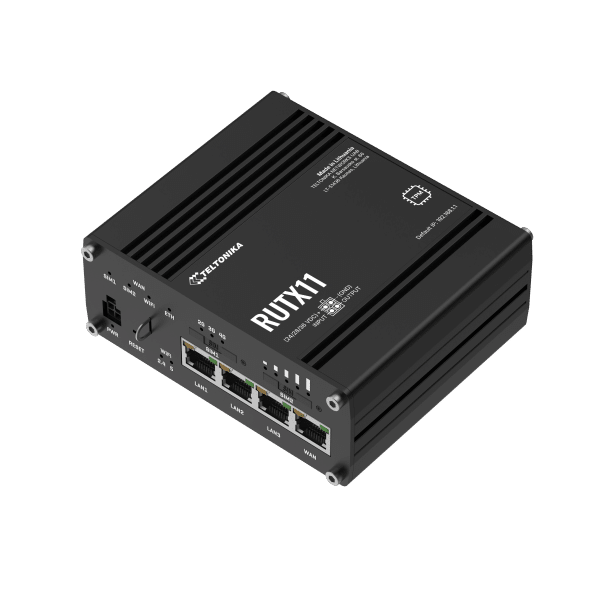

Teltonika RUTX11 is an industrial style 4G router that is ideal to be used in industrial applications whre speed and robustness are key. It is equipped with, 4G LTE CAT 6 Modem, 4 x Gigabit Ethernet ports, Wave-2 802.11ac Dual Band WiFi, Dual SIM with auto failover.
This is an ideal router for use in power hungry Digital Signage, networking or smart metering and advanced industrial or enterprise applications.
The Teltonika RUTX11 is a compact unit with high grade aluminium casing and provides ethernet connectivity for connection to the office LAN.
Teltonika RUTX11 Key Features
LTE Cat 6 with speeds up to 300 Mbps
WiFi 802.11ac (WiFi 5) up to 867 Mbps (Dual Band, MU-MIMO)
Dual-SIM with auto Failover, Backup WAN
4 x Gigabit Ethernet ports (up to 1000 Mbps)
MOBILE | |
Mobile module | 4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps |
SIM switch | 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail |
Status | Signal strength, SINR, RSRP, RSRQ, Bytes sent/received, connected band, carrier aggregation, IMSI, ICCID |
SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET, Email to SMS, SMS to Email, SMS to HTTP, SMS to SMS, SMS auto reply |
USSD | Supports sending and reading Unstructured Supplementary Service Data messages |
Black/White list | Operator black/white list |
Multiple PDN | Possibility to use different PDNs for multiple network access and services |
Band management | Band lock, Used band status display |
APN | Auto APN |
Bridge mode | Direct connection (bridge) between mobile ISP and device on LAN |
WIRELESS | |
Wireless mode | 802.11b/g/n/ac Wave 2 (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA) |
WiFi security | WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation |
ESSID | ESSID stealth mode |
WiFi users | up to 150 simultaneous connections |
Wireless Hotspot | Captive portal (Hotspot), internal/external Radius server, built in customizable landing page |
ETHERNET | |
WAN | 1 x WAN port (can be configured as LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
LAN | 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
BLUETOOTH | |
Bluetooth 4.0 | Bluetooth low energy (LE) for short range communication |
NETWORK | |
Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP) |
Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake on LAN (WOL), DLNA |
VoIP passthrough support | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
Connection monitoring | Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection |
Firewall | Port forwards, traffic rules, custom rules |
DHCP | Static and dynamic IP allocation, DHCP Relay, Relayd |
QoS / Smart Queue Management (SQM) | Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
DDNS | Supported >25 service providers, others can be configured manually |
Network backup | VRRP, Mobile, Wired and WiFi WAN options, each of which can be used as an automatic Failover |
Load balancing | Balance Internet traffic over multiple WAN connections |
SSHFS | Possibility to mount remote file system via SSH protocol |
SECURITY | |
Authentication | Pre-shared key, digital certificates, X.509 certificates |
Firewall | Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T |
Attack prevention | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
VLAN | Port and tag based VLAN separation |
Mobile quota control | Custom data limits for both SIM cards |
WEB filter | Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only |
Access control | Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
VPN | |
OpenVPN | Multiple clients and a server can run simultaneously, 12 encryption methods |
OpenVPN Encryption | DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC |
IPsec | IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256) |
GRE | GRE tunnel |
PPTP, L2TP | Client/Server instances can run simultaneously, L2TPv3 support |
Stunnel | Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code |
DMVPN | Method of building scalable IPsec VPNs |
SSTP | SSTP client instance support |
ZeroTier | ZeroTier VPN client support |
WireGuard | WireGuard VPN client and server support |
MODBUS | |
MODBUS TCP SLAVE | |
ID filtering | Respond to one ID in range [1;255] or any |
Allow remote access | Allow access through WAN |
Custom registers | MODBUS TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend MODBUS TCP slave functionality |
MODBUS TCP MASTER | |
Supported functions | 01, 02, 03, 04, 05, 06, 15, 16 |
Supported data formats | 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII |
MQTT GATEWAY | |
Gateway | Allows sending commands and receiving data from MODBUS Master trough MQTT broker |
DNP3 | |
Supported modes | TCP Master, DNP3 Outstation |
DATA TO SERVER | |
Protocols | HTTP(S), MQTT, Azure MQTT, Kinesis |
MONITORING & MANAGEMENT | |
WEB UI | HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log |
FOTA | Firmware update from server, automatic notification |
SSH | SSH (v1, v2) |
SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET |
Call | Reboot, Status, Mobile data on/off, Output on/off |
TR-069 | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
MQTT | MQTT Broker, MQTT publisher |
SNMP | SNMP (v1, v2, v3), SNMP trap |
JSON-RPC | Management API over HTTP/HTTPS |
MODBUS | MODBUS TCP status/control |
RMS | Teltonika Remote Management System (RMS) |
IoT PLATFORMS | |
Clouds of things | Allows monitoring of: Device data, Mobile data, Network info, Availability |
ThingWorx | Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type |
Cumulocity | Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP |
Azure IoT Hub | Can send device IP, Number of bytes send/received, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server |
SYSTEM CHARACTERISTICS | |
CPU | Quad-core ARM Cortex A7, 717 MHz |
RAM | 256 MB, DDR3 |
FLASH storage | 256 MB, SPI Flash |
FIRMWARE / CONFIGURATION | |
WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup |
FOTA | Update FW/configuration from server |
RMS | Update FW/configuration for multiple devices at once |
Keep settings | Update FW without losing current configuration |
FIRMWARE CUSTOMIZATION | |
Operating system | RutOS (OpenWrt based Linux OS) |
Supported languages | Busybox shell, Lua, C, C |
Development tools | SDK package with build environment provided |
LOCATION TRACKING | |
GNSS | GPS, GLONASS, BeiDou, Galileo and QZSS |
Coordinates | GNSS coordinates via WebUI, SMS, TAVL, RMS |
NMEA | NMEA 0183 |
Server software | Supported server software: TAVL, RMS |
Geofencing | Configurable multiple geofence zones |
USB | |
Data rate | USB 2.0 |
Applications | Samba share, USB-to-serial |
External devices | Possibility to connect external HDD, flash drive, additional modem, printer |
Storage formats | FAT, FAT32, NTFS |
INPUT/OUTPUT | |
Input | 1 x Digital Input, 0 – 6 V detected as logic low, 8 – 30 V detected as logic high |
Output | 1 x Digital Output, Open collector output, max output 30 V, 300 mA |
Events | SMS, Email, RMS |
POWER | |
Connector | 4 pin industrial DC power socket |
Input voltage range | 9 – 50 VDC, reverse polarity protection, voltage surge/transient protection |
PoE (passive) | Passive PoE. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards |
Power consumption | 16 W Max |
PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM) | |
Ethernet | 4 x RJ45 ports, 10/100/1000 Mbps |
I/Os | 1 x Digital Input, 1 x Digital Output on 4 pin power connector |
Status LEDs | 4 x WAN type LEDs, 2 x Mobile connection type, 5 x Mobile connection strength, 8 x LAN status, 1 x Power, 2 x 2.4G and 5G WiFi |
SIM | 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V, external SIM holders |
Power | 1 x 4 pin DC connector |
Antennas | 2 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNSS |
USB | 1 x USB A port for external devices |
Reset | Reboot/User default reset/Factory reset button |
Other | 1 x Grounding screw |
PHYSICAL SPECIFICATION | |
Casing material | Aluminium housing with DIN rail mounting option |
Dimensions (W x H x D) | 115 x 44.2 x 95.1 mm |
Weight | 456 g |
Mounting options | DIN rail, flat surface placement |
OPERATING ENVIRONMENT | |
Operating temperature | -40 C to 75 C |
Operating humidity | 10 % to 90 % non-condensing |
Ingress Protection Rating | IP30 |
REGULATORY & TYPE APPROVALS | |
Regulatory & Type Approvals | CE/RED, RoHS, REACH |
Vehicle | ECE R10 (E-mark) |
EMI IMMUNITY | |
Standards | EN 55032:2015, EN 55035:2017, Draft ETSI EN 301 489-1 V2.2.1, ETSI EN 301 489-3 V2.1.1, Draft ETSI EN 301 489-17 V3.2.0 |
ESD | EN 61000-4-2:2009 |
RS | EN 61000-4-3:2006 A1:2008 A2:2010 |
EFT | EN 61000-4-4:2012 |
Surge protection | EN 61000-4-5:2014 |
CS | EN 61000-4-6:2014 |
DIP | EN 61000-4-11:2004 |
RF | |
Standards | ETSI EN 300 328 V2.1.1, ETSI EN 301 893 V2.1.1, ETSI EN 300 440 V2.1.1 |
SAFETY | |
Standards | IEC 62368-1:2014 (Second Edition) EN 62368-1:2014 A11:2017 EN 50385:2017 EN 62232:2017 |
