Teltonika TSF010 Flat Ethernet Router


Teltonika TSF010 Flat Ethernet Switch (unmanaged)

  • 5 x 10/100 Mbps Ethernet ports with auto MDI/MDIX crossover support
  • Non-blocking bandwidth of 10 Gbps for seamless data transfer
  • Wide input voltage range (7-57 VDC) with built-in protection against overvoltage, reverse polarity, and surges
  • Low power consumption: 1W idle, 1.5W max
  • Rugged anodized aluminium housing with IP30 ingress protection
  • Extended operating temperature range of -40°C to 75°C
  • Compact dimensions: 113 x 28 x 50 mm, weighing only 142g

TSF010 Flyer

TSF010 Datasheet

£23.00 Excl VAT

CALL US to discuss volume pricing 01937 534914
Do you need a Fixed IP SIM Card?

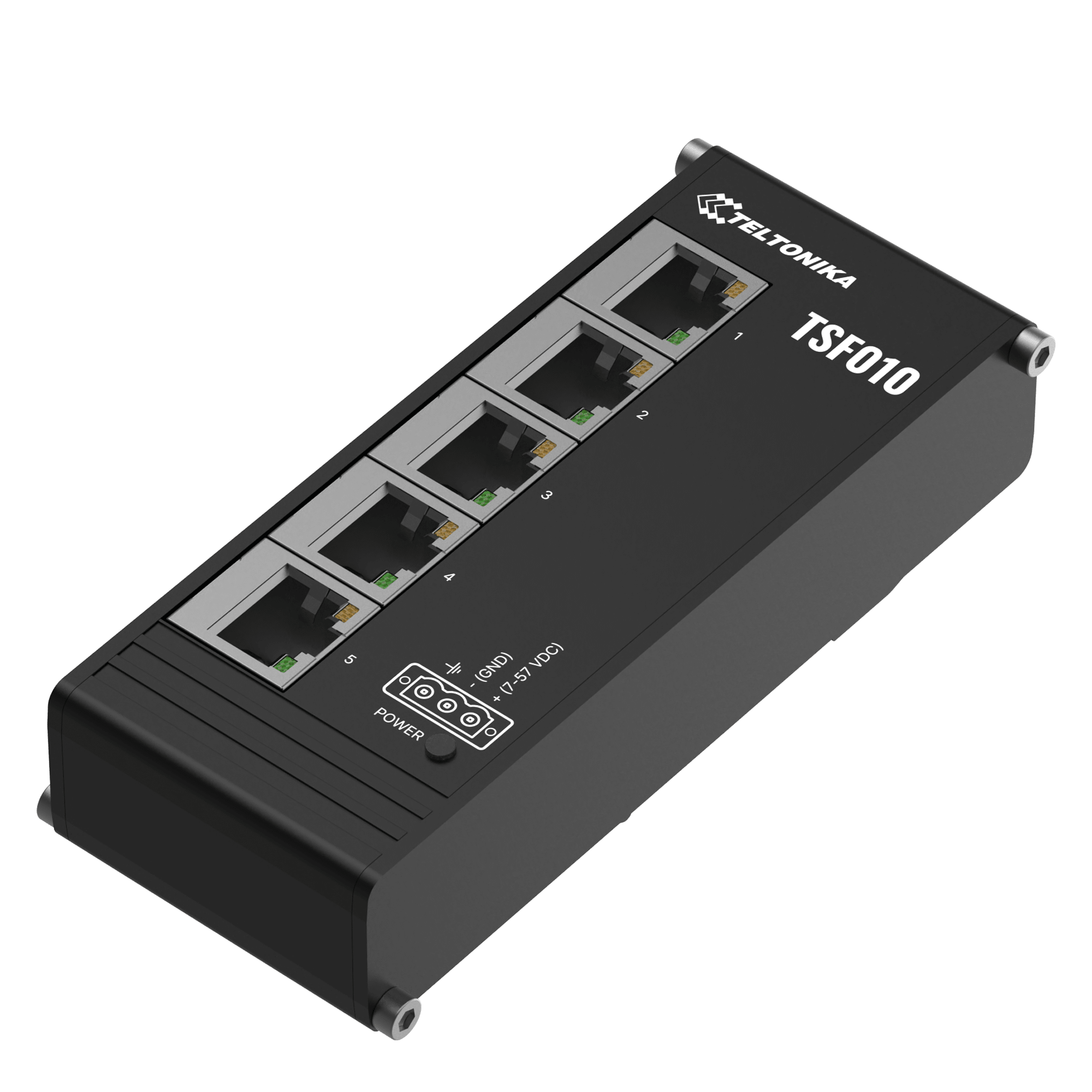

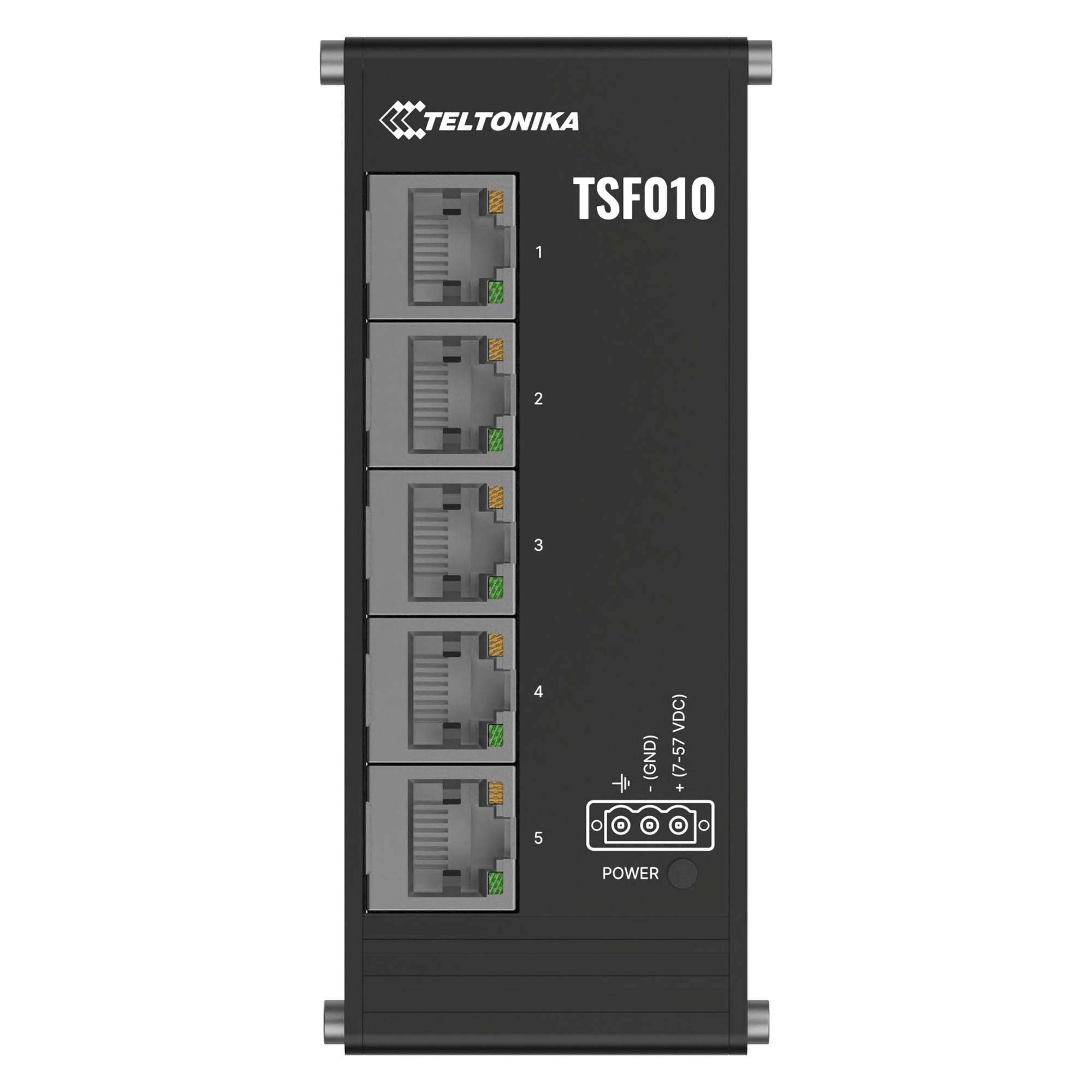

The Teltonika TSF010 is a high-performance, compact 5-port unmanaged Ethernet switch designed for industrial applications. This versatile device offers robust connectivity in a sleek, flat form factor, making it ideal for space-constrained environments.

Key features of the TSF010 include:

  • 5 x 10/100 Mbps Ethernet ports with auto MDI/MDIX crossover support
  • Non-blocking bandwidth of 10 Gbps for seamless data transfer
  • Wide input voltage range (7-57 VDC) with built-in protection against overvoltage, reverse polarity, and surges
  • Low power consumption: 1W idle, 1.5W max
  • Rugged anodized aluminium housing with IP30 ingress protection
  • Extended operating temperature range of -40°C to 75°C
  • Compact dimensions: 113 x 28 x 50 mm, weighing only 142g

The TSF010 excels in harsh industrial environments, offering reliable performance and advanced features such as jumbo frame support up to 9216 bytes and a 2K MAC address table. Its integrated DIN rail bracket allows for easy installation, while the 3-pin industrial DC power socket ensures secure power connectivity.

Compliant with multiple international standards and certifications, including CE, FCC, and RCM, the TSF010 is suitable for global deployment. Whether you’re expanding your network infrastructure or seeking a dependable switch for industrial automation, the Teltonika TSF010 delivers exceptional performance in a compact, durable package.
