Teltonika TSW114 Industrial DIN rail mounted unmanaged switch

Teltonika TSW114

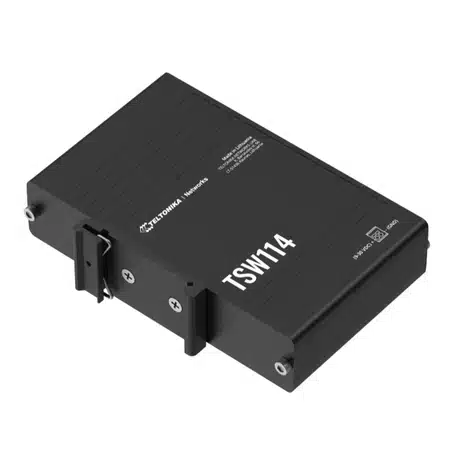

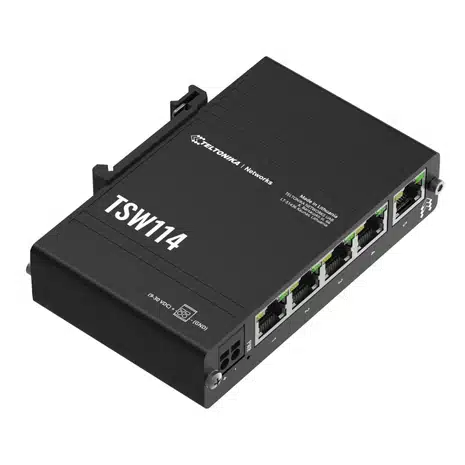

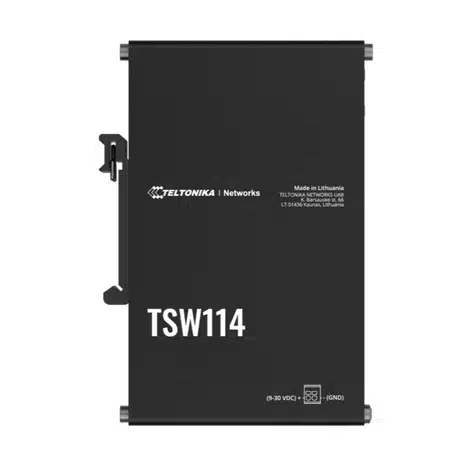

The Teltonika TSW114 is a rugged unmanaged switch with anodized aluminium housing. This switch is the perfect choice for industrial solutions, offering a wide supply voltage range of 9-30 V with protection against reverse polarity and voltage spikes. With the TSW114, you have an affordable way to simplify your connectivity with its plug-n-play nature. Featuring 5 x Gigabit Ethernet ports, the switch provides stable, reliable connectivity for high-bandwidth solutions with multiple Ethernet devices. Its compact size, forward-facing ports and integrated DIN rail bracket make it easy to install in many industrial environments and control cabinets.

Key features of the Teltonika TSW114

• Easy mounting: Integrated din-rail bracket and front ports
• Gigabit Ethernet: 5 x gigabit Ethernet with speeds up to 1000 mbps
• A wide operating temperature range: from -40 °c to 75 °c
• Compact & durable: Rugged anodized aluminium housing that fits in your pocket
• Plug-n-play: no additional configuration required
• Wide range of supported supply voltages: from 9-30v

Specification:

Ethernet
LAN: 5 x RJ45 ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
IEEE 802.3 series standards: 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az, 802.3ad

Performance Specifications
Bandwidth (Non-blocking): 10 Gbps
Packer buffer: 128 KB
MAC address table size: 2K entries
Jumbo frame support: 9216 bytes

Power
Connector: 2-pin industrial DC power socket
Input voltage range: 9 – 30 VDC
PoE (passive): Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 – 50 VDC
Power consumption: Idle: 0.3 W / Max: 2.3 W

Physical Interfaces
Ethernet: 5 x RJ45 ports, 10/100/1000 Mbps
Status LEDs: 1 x Power LED, 10 x LAN status LEDs
Power: 1 x 2-pin industrial DC power socket
Other: 1 x Grounding screw

Physical Specification
Casing material: Anodized aluminum housing and panels
Dimensions (W x H x D): 113.1 x 27.4 x 80.5 mm
Weight: 174 g
Mounting options:Integrated DIN rail bracket, wall mounting (additional kit needed), flat surface placement

Operating Environment
Operating temperature: -40 °C to 75 °C
Operating humidity: 10% to 90% non-condensing
Ingress Protection Rating: IP30

Regulatory & Type Approvals
Regulatory: CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM

Safety
Standards: EN IEC 62368-1:2020+A11:2020
