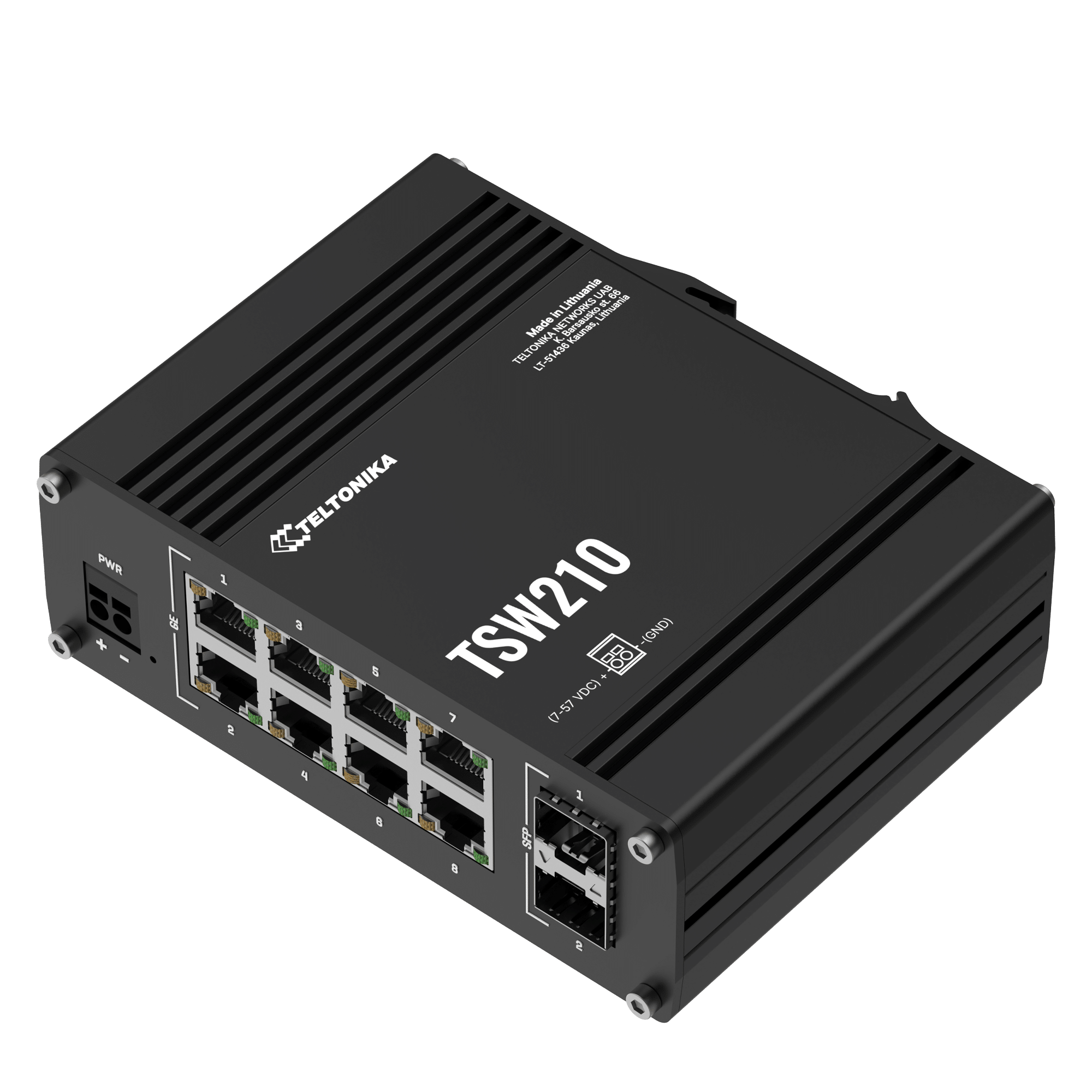

Teltonika TSW210 Industrial Switch


Teltonika TSW210 is an industrial grade switch from with eight Gigabit Ethernet and two SFP ports.

  • The TSW210 is an industrial unmanaged switch for centralizing your resources.
  • Equipped with 2 SFP ports for long-range fibreoptic communication and 8 Gigabit Ethernet ports with of up to 1000 Mbps download/upload speed.
  • Durable, rugged aluminium housing with DIN rail and surface mounting options make the TSW210 perfect for industrial settings.
  • 2-pin industrial DC power socket with an input voltage range of 7-57 VDC.

£54.00 Excl VAT

CALL US to discuss volume pricing 01937 534914
Do you need a Fixed IP SIM Card?

TSW210 is an industrial grade switch from Teltonika Networks with eight Gigabit Ethernet and two SFP ports.

  • The TSW210 is an industrial unmanaged switch for centralizing your resources.
  • Equipped with 2 SFP ports for long-range fibreoptic communication and 8 Gigabit Ethernet ports with of up to 1000 Mbps download/upload speed.
  • TSW210 is an industrial grade switch from Teltonika Networks with eight Gigabit Ethernet and two SFP ports.
    • The TSW210 is an industrial unmanaged switch for centralizing your resources.
    • Equipped with 2 SFP ports for long-range fibreoptic communication and 8 Gigabit Ethernet ports with of up to 1000 Mbps download/upload speed.
    • Durable, rugged aluminium housing with DIN rail and surface mounting options make the TSW210 perfect for industrial settings.
    • 2-pin industrial DC power socket with an input voltage range of 7-57 VDC.



INTERFACES
Ethernet 8 x RJ45 ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
2 x SFP ports
PERFORMANCE SPECIFICATIONS
Bandwidth (Non-blocking) 20 Gbps
Packet buffer 128 KB
MAC address table size 2K entries
Jumbo frame support 9216 bytes
POWER
Connector 2 pin industrial DC power socket
Input voltage range 7-57 VDC
Power consumption Idle: ~1.03 W / Max: 3.71 W
PHYSICAL INTERFACES (PORTS, LEDS)
Ethernet 8 x RJ45 ports, 10/100/1000 Mbps
Fiber 2 x SFP ports
Status LED’s 1 x Power LED, 16 x LAN status LED’s 2 x SFP status LED’s
Power 1 x 2 pin industrial DC power socket
Ground 1 x Grounding screw
PHYSICAL SPECIFICATION
Casing material Full aluminum housing
Dimensions (W x H x D) 132 x 44.2 x 95.1 mm
Weight 500 g
Mounting DIN rail or wall mounting (additional kit needed), flat surface placement
OPERATING ENVIRONMENT
Operating temperature -40 °C to +75 °C
Operating humidity 10 % to 90 % non condensing
Ingress Protection Rating IP30

More About The Teltonika TSW210

The water we drink, the electricity that keeps our homes lit, and nearly all of the everyday objects we use and interact with daily all have one thing in common: they all rely on industrial switches in one some way.

The industrial switch is a staple of IoT that provides connectivity to different devices within a system to facilitate a network of communication, data transmission, and greater device control. It’s applicable in just about any industry you can think of and helps keep complex systems cohesive and interconnected by centralizing their network.

SWITCH ON YOUR PREFERENCES

Part of what makes switches so valuable is their scalability. As your business grows, so too does the number of devices it needs to operate, generate revenue, or deliver the service it aims to provide. More devices increase overall complexity, so keeping things simple is a much-appreciated boon.

The switches already in our portfolio, including the TSW100, TSW110, and TSW200, benefit scalability by giving you flexibility in choosing which features are essential for you and your connectivity solutions, be it in terms of supported interfaces, power budget, and so on.

Each of them is chosen for one feature preference or another to play a critical role in connectivity setups worldwide. To further add to this customizability, we’ve been working on a brand new switch to join the TSW family, and its day has finally come!

THE NEW SWITCH ON THE BLOCK

Joining the catalogue is an unmanaged industrial switch named the TSW210. It comes with 2 SFP ports for long-range fibreoptic communication and 8 Gigabit Ethernet ports for up to 1000 Mbps of download/upload speed. On top of being a reliable and secure interface, SFP also future-proofs your network for potential bandwidth upgrades later down the line.

The TSW210 Industrial Network Switch excels in optimizing your resource management. As an unmanaged switch, it’s designed for plug and play and doesn’t require any configuration to start using it. This makes it ideal for rapid growth and crunch periods – when time is a valuable resource and devices need to join a network quickly and without too much of a hassle.

This model also comes with the standard package of high quality and industrial environment suitability, including compact design, rugged aluminium housing, DIN rail and other mounting options, and the capability to withstand vibrations and extreme temperatures from -40°C to +75°C.

If no other Teltonika Networks device has failed you so far, don’t expect this one to break the tradition!

If you need a POE Switch then Teltonika TSW200 offers an 8 port unmanaged POE switch.
