TSW212
What is the difference between the TSW202 and TSW212?
When comparing the TSW202 and TSW212 devices, a key differentiator lies in their Power over Ethernet (PoE) support. Specifically, the TSW202 features PoE+, while the TSW212 does not. This divergence in functionality influences the pricing, making the TSW202 slightly more expensive due to its PoE+ capability.

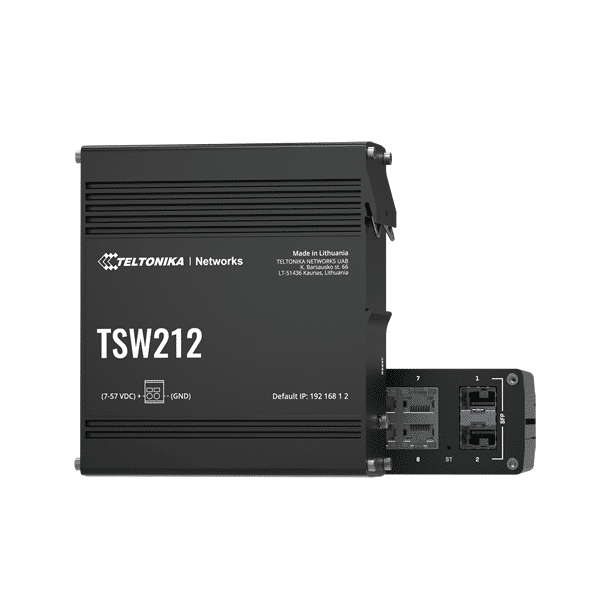

TSW212 Managed Switch Specifications
Category | Specification |
---|---|
ETHERNET | |
Fibre | 2 x SFP ports |
IEEE Standards | IEEE 802.3 series standards, IEEE 802.1p, IEEE 802.1Q, 802.3az |
LAN | |
Managed ETH Ports | 8 x 10/100/1000 Mbps ports with auto MDI/MDIX crossover |
SERVICES | |
EtherNet/IP | Yes |
Profinet (class B) | Yes |
SNMP V2, V3 | Yes |
LLDP | Yes |
NETWORK | |
MRP | MRP client role, MRP manager role |
L2 FEATURES | |
Loop Protection | Yes |
Forwarding Table | Yes |
VLAN | Yes |
STP/RSTP | Yes |
DHCP | |
DHCP Server | Yes |
DHCP Client | Yes |
PORT SETTINGS | |
Enable/Disable | Yes |
Link Speed Control | Yes |
Port Isolation | Yes |
EEE (802.3az) Management | Yes |
Port Mirroring | Yes |
L3 FEATURES | |
Static IPv4 Routing | Yes |
Static IPv6 Routing | Yes |
DHCPv6 Client | Yes |
Static IPv6 Address | Yes |
QOS | |
Port Priority | Yes |
DSCP Priority | Yes |
802.1p Priority | Yes |
TOS | Yes |
Scheduling Method | SP/WFQ/WRR |
Bandwidth Control | Rate Limiting, Storm Control |
SYSTEM CHARACTERISTICS | |
RAM | 128MB, DDR3 |
FLASH Storage | 16 MB Serial Flash |
FIRMWARE / CONFIGURATION | |
WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup |
FOTA | Update FW |
