Zyxel FWA510
Zyxel FWA510
, , , , ,

Zyxel Nebula FWA510 5G Router

Unlock Broadband via 5G Fixed Wireless Access

The Nebula FWA510 mobile 5G router delivers unparalleled mobile broadband with 5G NR and enables your home, office, or Airbnb hotel experience blazing-fast 5G speed over WiFi 6 for up to 64 devices. The plug-and-play router reduces deployment time & costs with subscriber self-installation, enables broadband Internet ready to days from weeks for homes or small businesses. Let Nebula FWA510 ensure a seamless ultra-broadband for smoother 4K/8K streaming, crisper immersive gaming/ learning and uninterrupted video calls – Unleash the true 5G potential with Zyxel Nebula FWA510!

PDF  Zyxel Nebula FWA510 Datasheet

PDF NEBULA FWA510 Quick Start Guide PDF Download

IN STOCK – ORDER NOW



£306.00 Excl VAT

CALL US to discuss volume pricing 01937 534914
Do you need a Fixed IP SIM Card?

Request A Quote Or Project Pricing

FWA510 High Speed 5G Internet Connectivity From Zyxel

Powerful Chip, 5G Unleashed

Thanks to the mind-blowingly fast chip, which is designed with an integrated quad-core Arm CPU, it provides 5G speeds of up to an impressive 5 Gbps* right out of the box. Along with the two integrated 2.5 Gbps Gigabit Ethernet interfaces, allowing it a wide range of LAN port configurations for ultra-fast speed for connection to servers, workstations, or high-end gaming devices.

Get ground-breaking performance in both speed and wide-spectrum bandwidth for multi-streaming data access and reduce network latency for premium and time-sensitive internet services now!

Accelerate with WiFi 6

Fast and vast. When 5G meets WiFi 6, they can boost larger bandwidth and capacity than previous legacy solutions. The Nebula FWA510 offers speeds of up to 3.6 Gbps** on dual bands with the latest WiFi 6 (AX3600) standard. Nebula FWA510 can deliver an optimal seamless high-speed WiFi experience to 64 wireless devices simultaneously.

NEBULA FWA510 Connections

You can note from the image below the FWA510 has 4 x TS9 connections for use with an outdoor 5G antenna and has 2 x 2.5GB Ethernet ports and a USB3 port which can be used with a USB memory stick to provide basic file sharing.  If you are considering using the Zyxel FWA510 router with an external antenna we recommend testing the router outdoors (on a dry day) in the intended antenna location and checking the signal strength and speed (we recommend testing with both an Ethernet cable and WiFi when doing speed tests) and to then move the FWA510 router indoors to it’s fixed location and make the same tests and if the difference is considerable then an outdoor antenna may help with the performance.  If the indoor and outdoor tests are fairly similar then an outdoor antenna may not improve the service.

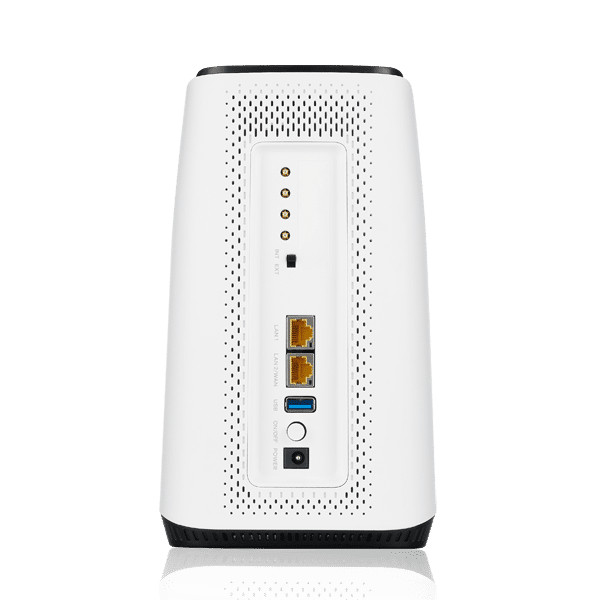

FWA510 5G Router Antenna Connections and Ethernet Ports

System specifications

IP networking

Supports IPv4/IPv6 dual stack (NDP IPv6)

DHCP server

Virtual Private Network (VPN) pass-through

Supports NAT/NAPT

Supports DMZ

Multiple APNs

Supports port forwarding

Routing

Supports bridge and router modes

Supports remote management under bridge mode

Static/dynamic routing settings for RIP v1/v2

IP firewall

DoS attack detection

Supports SPI (Stateful Packet Inspection)

Application-level firewall (LAN to WAN such as HTTP, Telnet, Ping)

Filters LAN MAC address

Filters LAN IP address

Management

Supports local/remote device management and firmware upgrade via Nebula Cloud and web GUI

SMS management

PIN/PUK manage ment

APN management

Operating frequency band selection

Supports Zyxel Air app (iOS and Android) for easy installation and local management only

WLAN feature

Auto channel selection

WiFi Protected Setup (WPS)

WiFi Multimedia (WMM)

WiFi-enabled devices: up to 64

Security: none, WPA2-Personal, WPA+WPA2, WPA2+WPA3, WPA3

MAC address filtering with 64 address supported

Multiple SSIDs/hide SSIDs

WLAN scheduling

Hardware Specifications

5G NR interface

3GPP Release 15 standard-compliant

Supports both NSA and SA modes

Supports Sub-6 NR DL 2xCA (TDD/FDD)

Supports frequencies:

FDD: n1, n3, n5, n7, n8, n20, n28

TDD: n38, n40, n41, n77, n78

Supports DL 4×4 MIMO:

FDD: n1, n3, n5, n7

TDD: n38, n40, n41, n77, n78

Data rates:

5G SA: DL 4.67 Gbps*; UL: 2.5 Gbps*

5G NSA: DL 3.74 Gbps*; UL: 1.46 Gbps*

Output power:

Class 2 (26 dBm) for 5G NR n41/n78

Class 3 (23 dBm) for all 5G NR bands

4G LTE interface

3GPP UE Category 19 standard-compliant

Supports frequencies:

LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32

LTE-TDD: B38/B40/B41/B42

Supports DL 4×4 MIMO:

LTE-FDD: B1/B3/B7

LTE-TDD: B38/B40/B41/B42

Peak data rates:

Max. DL 1.6 Gbps/UL 200 Mbps**

Supports DL modulation QPSK, 16-QAM, 64-QAM and 256-QAM

Supports UL modulation QPSK, 16-QAM, 64-QAM and 256-QAM

Output power:

Class 2 (26 dBm) for LTE B41

Class 3 (23 dBm) for FDD/TDD LTE bands

WiFi air interface

Wireless standard:

IEEE 802.11 b/g/n/a/ac/ax

Wireless speeds:

Link rates up to 1.2 Gbps** for 2.4 GHz

Link rates up to 2.4 Gbps** for 5 GHz

WiFi antenna gain:

~3 dBi for 2.4 GHz

~5 dBi for 5 GHz

5G NR/4G LTE antennas

Four TS9 connectors for external antennas***

Four embedded omni-directional antennas

Ultra-high band:

Up to 5 dBi peak gain

High band and middle band:

Up to 5 dBi peak gain

Low band:

Up to 4 dBi peak gain

Hardware interface

Two 100/1000/2500 Mbps Ethernet RJ-45 LAN ports, LAN2 can be configured for Ethernet WAN port

LED indicators:

Power indication

SMS status

Signal strength

Internet connection status

Radio access technology status

WiFi AP status

WPS status

Four external antenna connectors (TS9 type)***

One 3FF/Micro SIM card slot

One power on/off button

One WPS/WiFi on/off button

One reset button

One Int/Ext antenna switch

One USB 3.0 host port for file sharing

Power consumption

48 W (peak)

Physical Specifications

Item

dimensions (WxDxH):
132.5 x 134 x 230 mm (5.22” x 5.28” x 9.06”)

weight:
1,006 g (2.22 lb.)

Packing

dimensions (WxDxH):
250 x 200 x 140 mm (9.84” x 7.87” x 5.51”)

weight:
1,504 g (3.32 lb.)

Environmental Specifications

Operating Environment

Temperature:
0°C to 40°C (32°F to 104°F)

Humidity:
10% to 90% (non-condensing) Storage Environment

Storage Environment

Temperature:
-30°C to 70°C (-22°F to 158°F)

Humidity:
5% to 95% (non-condensing)

Certification

CE/Safety

WEEE (Waste Electrical and Electronic Equipment) Directive certification

RoHS (Restriction of Hazardous Substances) Directive certification

HSF (Hazardous Substance Free)

European Parliament and Council

Directive 94/62/EC of December 20, 1994 on packaging and packaging waste

Package Contents

EU/UK power adaptor

Ethernet cable 1.8 m 8P8C



Quick start guide

Warranty card

DoC

Safety warranty
