Proroute

H685 Compact

H900 Dual SIM

H820 Router

Many M2M applications require a small form factor 4G Router to provide connectivity to the Internet and the Proroute H685 Compact LTE Router is the ideal solution.

The common way to use the router is with a 4G Fixed IP SIM Card to provide the H685with a mobile broadband Internet connection with a Fixed Public IP address for easy and reliable remote access to the router and connected devices using port forwarding.

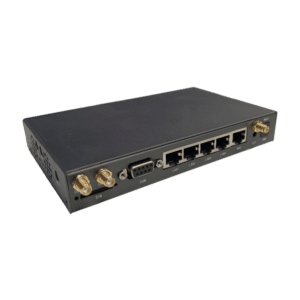

The Proroute H820 embedded industrial 4G router includes keep alive features such as Ping Reboot to ensure that the router will provide a reliable 3G/4G connection so you can install it at a remote location to provide convenient internet access via the 4G network without having to worry about expensive and time consuming site visits to reboot the router.

The Proroute H820 is ideal for users that need the reliability and features of the H685 but need additional Ethernet ports.

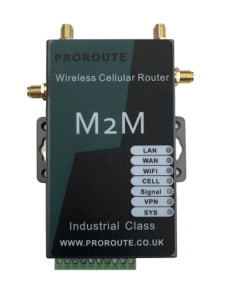

The Proroute H685 CAT6 4G LTE Router is a reliable, industrial grade compact 4G router with embedded high speed LTE CAT6 4G module for high speed mobile broadband data transfer speeds.

The embedded LTE CAT6 Modem provides download speeds up to 300Mbps making this small form 4G router practical for installations requiring a faster mobile broadband speed than the standard CAT4 version of the H685 router.

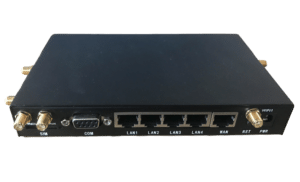

The Proroute H820 CAT6 4G LTE Router is a reliable, industrial grade 4G LTE-A router with embedded high speed LTE CAT6 4G module for high speed mobile broadband data transfer speeds up to 300Mbps.

The Proroute H820 is designed to support 3G & 4G M2M applications including Security, Utilities, Remote Monitoring and any other applications that require IP connectivity. The device can be used with our Fixed IP SIMs or standard mobile broadband sim cards.

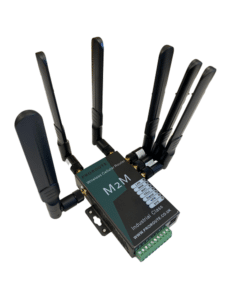

The Proroute H685 compact 5G router provides high capacity 5G connection whilst maintaining a reliable, secure and discrete communications service. H685 provides an excellent technical capability whilst still offering a commercially proposition so far not seen in the market compared to other products in this field.

Embedded 5G modem RM500Q:

• Downlink data: 5G/NR NSA sub-6: 2.5Gbps, LTE 1Gbps
• Uplink data: 5G/NR sub-6: 600Mbps, LTE 200Mbps

NB: the bandwidth is peak value. Real value depends on carrier network support.

The Proroute RAPID NR550 provides high capacity 5G connection whilst maintaining a reliable, secure and discrete communications service. The NR550 5G router provides excellent technical capability whilst still offering a commercial proposition so far not seen in the market compared to other products in this field.

TheRAPID NR550 5G comes with 4 x Gigabit LAN Ethernet Ports and 1 x Gigabit WAN ethernet port.

Embedded 5G modem:

• NR SA – 2.1Gbps(DL) / 900Mbps(UL)
• NR ENDC – 2.5Gbps(DL) / 600Mbps(UL)
• LTE – 1Gbps(DL) / 150Mbps(UL)
• WCDMA – 42Mbps(DL) / 5.76Mbps(UL)

NB: the bandwidth is peak value. Real value depends on carrier network support.

High Speed WiFi –

• 802.11AC/g/g/n WiFi Dual Band

The Proroute H900 provides high capacity 5G connection whilst maintaining a reliable, secure and discrete communications service. The H900 provides excellent technical capability whilst still offering a commercial proposition so far not seen in the market compared to other products in this field.

The Proroute H900 5G Router is supplied with stick type antennas shown in the pictures. The H900 WAVE2 WiFi Router has 4 x WiFi antenna connection and 4 x Cell antenna connection.

The H900 5G comes with 2 x Gigabit LAN ethernet, 2 x Fast LAN ethernet and 2 x Gigabit WAN ethernet ports.

Embedded 5G modem RM500Q:

• Downlink data: 5G/NR NSA sub-6: 2.5Gbps, LTE 1Gbps
• Uplink data: 5G/NR sub-6: 600Mbps, LTE 200Mbps

NB: the bandwidth is peak value. Real value depends on carrier network support.

High Speed WAVE2 MU-MIMO WiFi – 802.11a/b/g/n/AC – Can be used as AP and client
