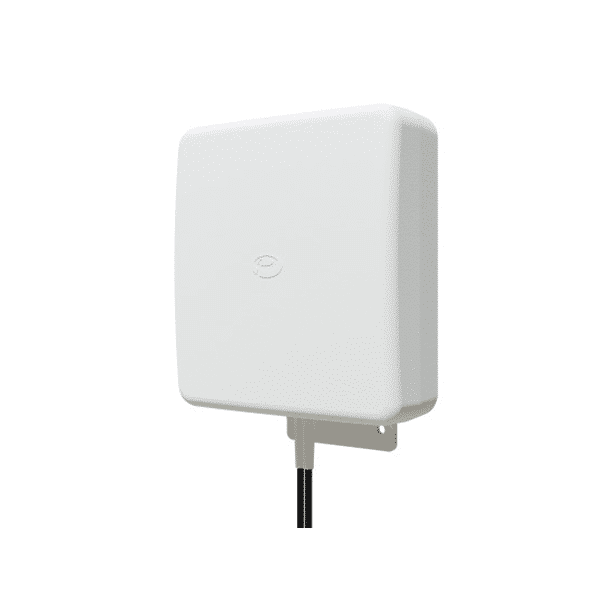

WMM8G-7-38 Directional 5G Antenna
, , ,

WMM8G-7-38 MiMO 5G Directional Antenna (2×2) 9dBi Peak Gain (WMM8G-7-38-5SP) 2 x 5m cables with SMA

WMM8G-7-38-5SP Antenna from Panorama is a 2×2 MiMo, Outdoor Directional 5G Antenna (works with 4G and 3G also) supplied pre-terminated with 2 x 5m cables with SMA Male Connectors.  The WMM8G-7-38 5G Antenna has a peak gain of 9dBi.

  • 2×2 MiMo wideband cellular LTE antenna
  • High 9dBi peak gain directional product
  • Can be wall or mast-mounted

WMM8G-7-38 Brochure / Datasheet (pdf)

£134.00 Excl VAT

CALL US to discuss volume pricing 01937 534914
Do you need a Fixed IP SIM Card?

Request A Quote Or Project Pricing

The WMM8G-7-38 antenna is a high gain directional 2×2 MIMO signal boosting antenna for 4G and some 5G networks

Incorporating two separately fed wideband elements in a single housing the WMM8G is equipped to provide client side MIMO and diversity support for 4G and some 5G networks. The rugged, weatherproof housing is designed for wall mounting.

Wall and mast mounting brackets are provided. 5 metres of fitted low loss double shielded twin cable minimizes exposed connector joints and simplifies cable management for easy installation.

The WMM8G-7-38-5SP and WMM8G-7-38-03NJ are upgraded versions of the popular WMM8G-7-27-5SP and WMM8G-7-27-03NJ antennas covering the new 3.4-3.8GHz frequency bands.

Ideally the Panorama WMM-8G-7-38 Antenna would be installed outdoors and would need to be directed to the chosen cell site.  The 2 x 5m cables supplied with the WMM8G-7-38-5SP version (which is the standard product we offer) are pre-terminated so if you need to extend the antenna cable lengths then you can use our pre-terminated 5m, 10m and 20m long antenna extension cables.  The SMA connectors will then screw directly to your 4G or 5G router cellular antenna ports (assuming that your router is supplied with standard SMA connectors).  If your router uses TS9 or other antenna connectors then you will need to purchase antenna adapters.

Product Features

  • 2×2 MiMo wideband cellular LTE antenna
  • High 9dBi peak gain directional product
  • Can be wall or mast-mounted

Performance Features

  • Covers wideband 700-3800MHz for 2G/3G/4G/5G LTE
  • 6-9dBi peak gain directional fixed-site antenna
  • UV stable IP65 rated housing

Benefits

  • Ideal product for fringe network areas
  • Easy to install outdoor panel antenna
  • Integrate your wireless services into a single antenna

Applications

  • Rural Broadband

WMM8G-7-38 Specification

Electrical Data
LTE Frequencies 698-960/1710-3800MHz
Typical VSWR <2:1
Peak Gain (dBi) 9
LTE MiMo 2×2
Max Input Power (W) 50
Pattern Directional
Mechanical Data
Available Colours White
Length (mm) 94
Width (mm) 180
Height (mm) 230
Operating Temperature -30 / +70° C
Mounting Data
Mounting Type Wall Mount; Mast Mount
Mounting Method Wall Bracket; Mast Clamp; U Bolt; Screw Mount
Approvals Data
IP Rating IP65

Product Variants

Part Number Technology Cable Connector
WMM8G-7-38-5SP 2×2 Cellular/LTE (698-960/1710-3800MHz) 5m (16′) Twin CS29 2x SMA Plug (m)
WMM8G-7-38-03NJ* 2×2 Cellular/LTE (698-960/1710-3800MHz) 0.3m (1′) Twin CS29 2x N (f)

*Additional cables required (2 ea.)

Examples of using Panorama Antennas

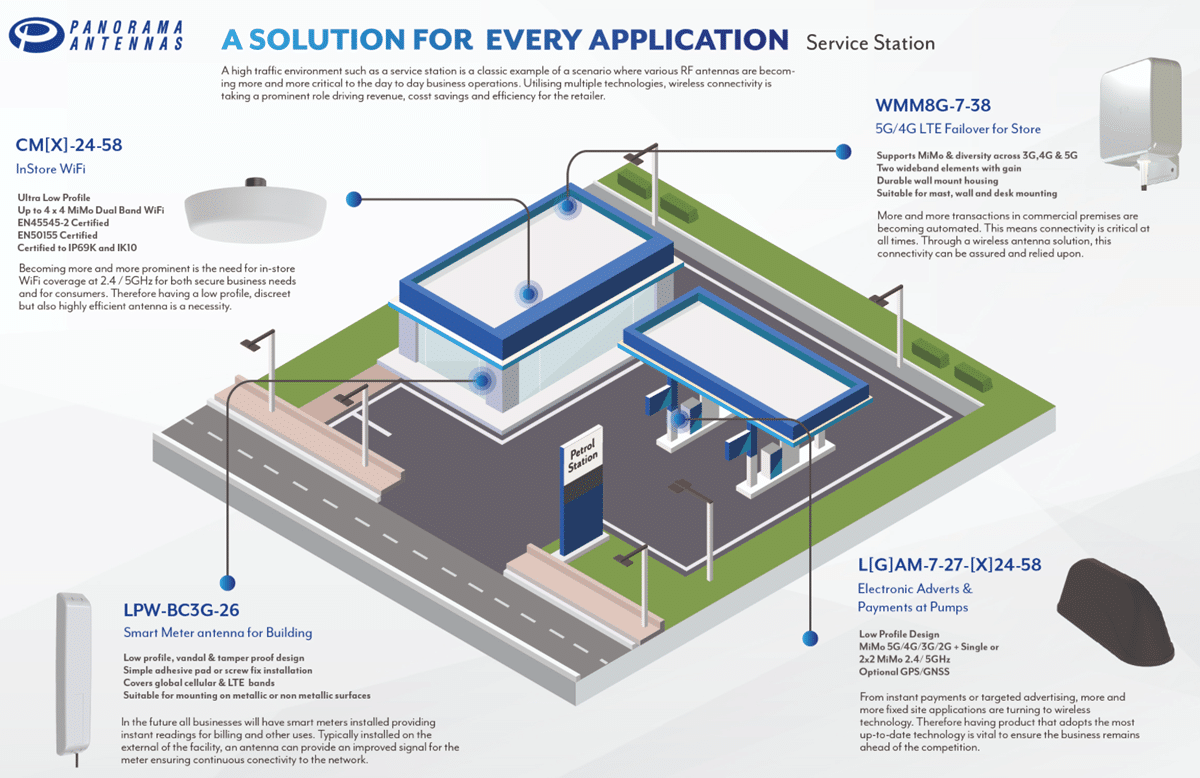

Service Station Infographic

Panorama Antennas for Service Station

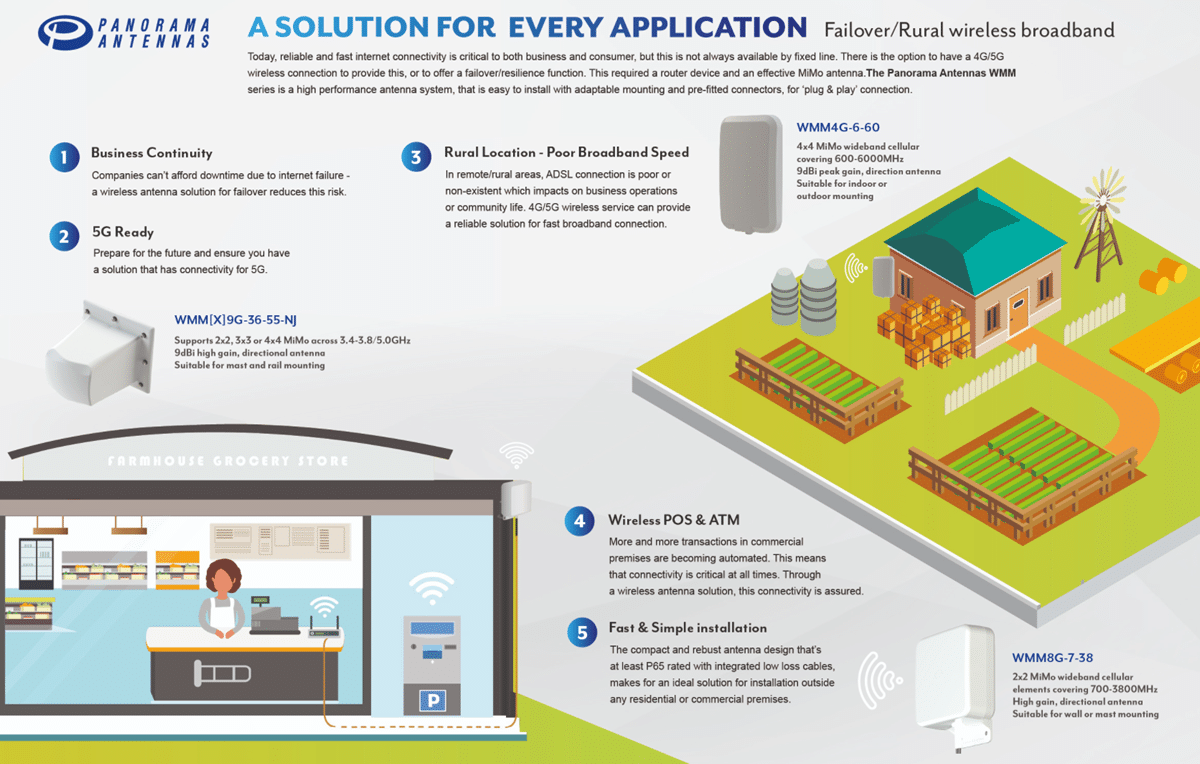

Rural Broadband / 4G/5G Failover

Panorama Antennas For Rural Broadband
