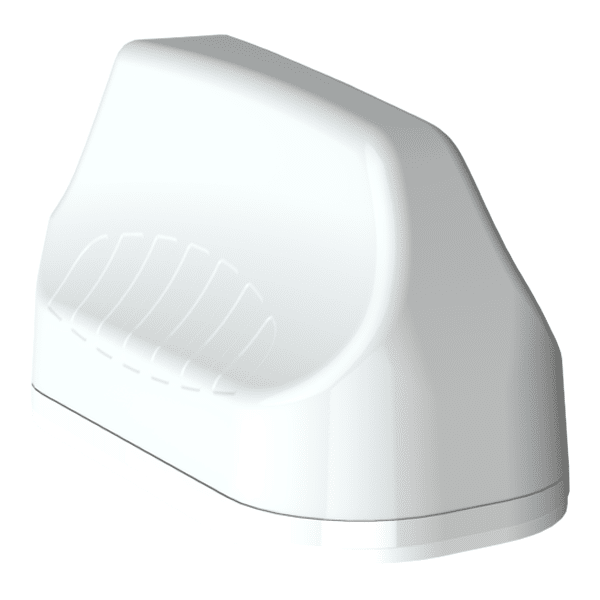

A-MIMO-0003-V2-12 – Poynting 2 IN 1 High performance multi frequency antenna, max gain 5.8 dBi


  • 2G/3G/4G/LTE/5G antenna for vehicle or marine
  • 2 x MiMo LTE
  • Ultra-Wideband, includes 450MHz and 3.5GHz CBRS Bands
  • Robust and water resistant (IP69K) antenna
  • Ideal for transportation & marine use
  • Multi mounting options for easy installation*
  • 2 x 2m cables with SMA Plugs

IN STOCK

£127.00 Excl VAT

CALL US to discuss volume pricing 01937 534914
Do you need a Fixed IP SIM Card?

The MIMO-3-V2-12 consists of a 2-in-1 antenna system within a single housing, providing 2x Cellular antennas. This antenna is specifically designed for the transportation and marine industry. The 2x Cellular MIMO antennas (for 2G/3G/4G) covers the contemporary 690MHz to 2700MHz bands, as well as the new emerging LTE and 5G spectrum for 450MHz and 3.5GHz CBRS bands, which is becoming popular across the various international cellular network operators for LTE. This antenna, due to its wide band capabilities, can be used across different operators and technologies and is ready for future cellular technologies such as 5G up to 3.8GHz. The antenna exceeds the performance of most competitors due to the attention to the design of this high-performance antenna.

The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation, which is important for this type of antenna, especially for the transportation and marine market. Main applications are for commercial/industrial vehicles, marine, M2M and other IoT systems using a wide range of radio technologies, while remaining futureproof over the wide frequency band offered by this antenna.

Ports 1&2
SISO/MIMO 2×2 MIMO
Frequencies and Gain 410470 MHz: 1 dBi
698960 MHz: 3.5 dBi
17102700 MHz: 5.8 dBi
34003800 MHz: 4 dBi
Coax Cable Type Twin HDF-195
Coax Cable Length 2m
Connector Type SMA Plug
Package Contents A-MIMO-0003-V2-12

Mounting brackets
