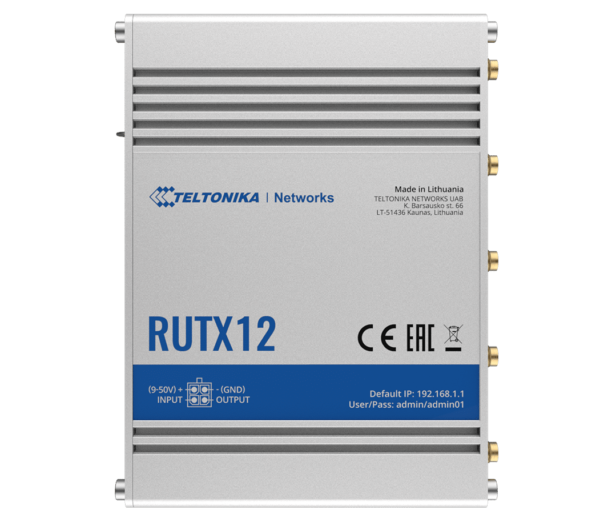

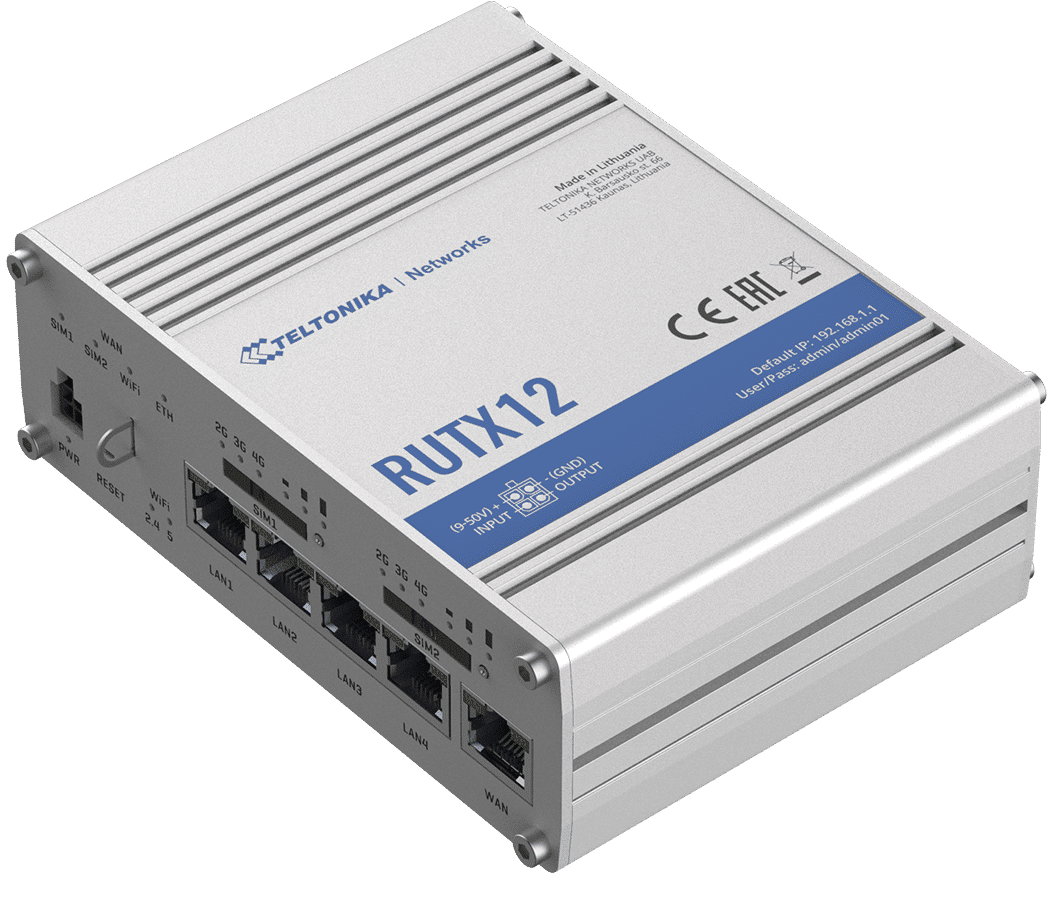

Teltonika RUTX12 Dual LTE CAT6 WiFi Router

The Teltonika RUTX12 is a powerful dual LTE Cat 6 industrial router designed for mission-critical applications. It offers uninterrupted connectivity with dual LTE modems, providing speeds up to 600 Mbps with load balancing. The robust router features advanced security, remote management, and a durable aluminum housing suitable for harsh environments.Top 6 Key Features:

  • Dual LTE Cat 6 Modems for simultaneous high-speed internet up to 600 Mbps
    • enables load balancing, hot swap failover or bonded 4G using Bondix service.
  • 5 Gigabit Ethernet ports for wired connections up to 1000 Mbps
  • Wave-2 802.11ac Dual Band WiFi with speeds up to 867 Mbps
  • Advanced security features like VPN, IPsec, PPTP, L2TP, and GNSS tracking
  • Remote Management System (RMS) for seamless monitoring and configuration
  • Robust aluminium housing with IP30 rating for harsh industrial environments

Teltonika Diamond Partner

£299.00 Excl VAT

CALL US to discuss volume pricing 01937 534914
Do you need a Fixed IP SIM Card?

Request A Quote Or Project Pricing

The Teltonika RUTX12 is a high-performance industrial router designed to meet the demanding needs of modern connectivity. This robust device is equipped with dual LTE Cat 6 modems, allowing for simultaneous LTE connections and providing speeds up to 600 Mbps. It is ideal for applications where uninterrupted internet access is critical, such as in industrial, enterprise, and remote management scenarios.

Key Features

  • Dual LTE Cat 6 Modems: The RUTX12 supports two LTE modules working simultaneously, ensuring high-speed internet with instant failover switching for uninterrupted connectivity.
  • Gigabit Ethernet Ports: It includes five Gigabit Ethernet ports, offering speeds up to 1000 Mbps, which are perfect for high-speed wired connections.
  • Advanced WiFi Capabilities: The router features Wave-2 802.11ac Dual Band WiFi with speeds up to 867 Mbps, supporting MU-MIMO technology for efficient data transmission.
  • Remote Management System (RMS): Teltonika’s RMS allows for seamless remote management, monitoring, and configuration of the router, making it an excellent choice for remote deployments.
  • Security and VPN Support: The RUTX12 is packed with advanced security features, including VPN, IPsec, PPTP, L2TP, and GNSS tracking, ensuring secure and reliable connections.
  • Dual-SIM Functionality: With dual-SIM support, the router can switch between SIM cards to maintain connectivity, providing a reliable backup in case of network failure.
  • Robust Design: The device is built with a full aluminium housing, making it durable and suitable for harsh industrial environments. It operates within a temperature range of -40 °C to 75 °C and has an IP30 ingress protection rating.

Technical Specifications

  • CPU: Quad-core ARM Cortex A7, 717 MHz
  • Memory: 256 MB DDR3 RAM, 256 MB SPI Flash
  • Dimensions: 132 x 44.2 x 95.1 mm
  • Weight: 540 g
  • Power: 9 – 50 VDC, reverse polarity protection, voltage surge/transient protection
  • Interfaces: 5 x RJ45 ports (10/100/1000 Mbps), 1 x USB A port, 2 x SIM slots, 4 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNSS.

Applications

The Teltonika RUTX12 is perfect for a variety of applications, including:

  • Industrial Automation: Ensures reliable and high-speed internet for automated systems.
  • Enterprise Solutions: Provides robust connectivity for large-scale enterprise networks.
  • Remote Management: Ideal for managing remote sites with its advanced RMS capabilities.
  • Transportation and Fleet Management: Utilizes GNSS for location services and time synchronization, making it suitable for fleet tracking and management.

The Teltonika RUTX12 is a versatile and powerful router that combines high-speed LTE connectivity, advanced security features, and robust design, making it an excellent choice for industrial and enterprise applications. Its dual LTE modems, extensive management capabilities, and durable construction ensure reliable performance in even the most demanding environments.

The Teltonika RUTX12 router is compatible with the Teltonika RMS service to provide convenient remote management and monitoring of your Teltonika router.

SKU: TELTONIKA-RUTX12-N Categories: , , , Tags: , , , , , , ,

MOBILE
Mobile module 2 x 4G (LTE) – Cat 6 up to 300 Mbps, 3G – up to 42 Mbps
Status IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD Supports sending and reading Unstructured Supplementary Service Data messages
Black/White list Operator black/white list (by country or separate operators)
Multiple PDN Possibility to use different PDNs for multiple network access and services
Band management Band lock, Used band status display
SIM idle protection service When working with devices with two SIM slots, the one not currently in use will remain idle until the device switches to it, meaning that no data is used on the card until then
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Router assigns its mobile WAN IP address to another device on LAN
WIRELESS
Wireless mode 802.11b/g/n/ac Wave 2 (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
Wi-Fi security WPA2-Enterprise - PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect
SSID/ESSID ESSID stealth mode
Wi-Fi users Up to 150 simultaneous connections
Wireless Connectivity Features Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
Wireless MAC filter Whitelist, blacklist
Wireless QR code generator Once scanned, a user will automatically enter your network without needing to input login information.
NETWORK
Hotspot Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules
Firewall status page View all your Firewall statistics, rules, and rule counters
Ports management View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
Network topology Visual representation of your network, showing which devices are connected to which other devices
Hotspot Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
DHCP Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supported >25 service providers, others can be configured manually
Network backup Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
Load balancing Balance Internet traffic over multiple WAN connections
SSHFS Possibility to mount remote file system via SSH protocol
VRF support Initial virtual routing and forwarding (VRF) support
BLUETOOTH
Bluetooth 4.0 Bluetooth low energy (LE) for short range communication
ETHERNET
WAN 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN 4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
SECURITY
Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port and tag-based VLAN separation
Mobile quota control Mobile data limit, customizable period, start time, warning limit, phone number
WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Access control Flexible access control of SSH, Web interface, CLI and Telnet
VPN
OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN Encryption DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
IPsec IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GRE GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN Method of building scalable IPsec VPNs
SSTP SSTP client instance support
ZeroTier ZeroTier VPN client support
WireGuard WireGuard VPN client and server support
Tinc Tinc offers encryption, authentication and compression in its tunnels. Client and server support.
Tailscale Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol
OPC UA
Supported modes Client, Server
Supported connection types TCP
MODBUS
Supported modes Server, Client
Supported connection types TCP, USB
Custom registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
Supported data formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
DATA TO SERVER
Protocol HTTP(S), MQTT, Azure MQTT, Kinesis
Data to server Extract parameters from multiple sources and different protocols, and send them all to a single server
MQTT GATEWAY
Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Server through MQTT broker
DNP3
Supported modes Station, Outstation
Supported connection TCP, USB
DLMS
DLMS Support DLMS - standard protocol for utility meter data exchange
Supported modes Client
Supported connection types TCP, USB
API
Teltonika Networks Web API (beta) support Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com
MONITORING & MANAGEMENT
WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP Trap
JSON-RPC Management API over HTTP/HTTPS
RMS Teltonika Remote Management System (RMS)
IOT PLATFORMS
Cloud of Things Allows monitoring of: Device data, Mobile data, Network info, Availability
ThingWorx Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength
Azure IoT Hub Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type
SYSTEM CHARACTERISTICS
CPU Quad-core ARM Cortex A7, 717 MHz
RAM 256 MB, DDR3
FLASH storage 256 MB, SPI Flash
FIRMWARE / CONFIGURATION
WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA Update FW
RMS Update FW/configuration for multiple devices at once
Keep settings Update FW without losing current configuration
Factory settings reset A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration
FIRMWARE CUSTOMISATION
Operating system RutOS (OpenWrt based Linux OS)
Supported languages Busybox shell, Lua, C, C++, and Python, Java in Package manager
Development tools SDK package with build environment provided
GPL customization You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
LOCATION TRACKING
GNSS GPS, GLONASS, BeiDou, Galileo and QZSS
Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA NMEA 0183
NTRIP NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
Server software Supported server software TAVL, RMS
Geofencing Configurable multiple geofence zones
USB
Data rate USB 2.0
Applications Samba share, USB-to-serial
External devices Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
Storage formats FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4
INPUT / OUTPUT
Input 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
Output 1 x Digital Output, Open collector output, max output 30 V, 300 mA
Events Email, RMS, SMS
I/O juggler Allows to set certain I/O conditions to initiate event
POWER
Connector 4-pin industrial DC power socket
Input voltage range 9 - 50 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive) Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC
Power consumption Idle: < 4 W, Max: < 22 W
PHYSICAL INTERFACES

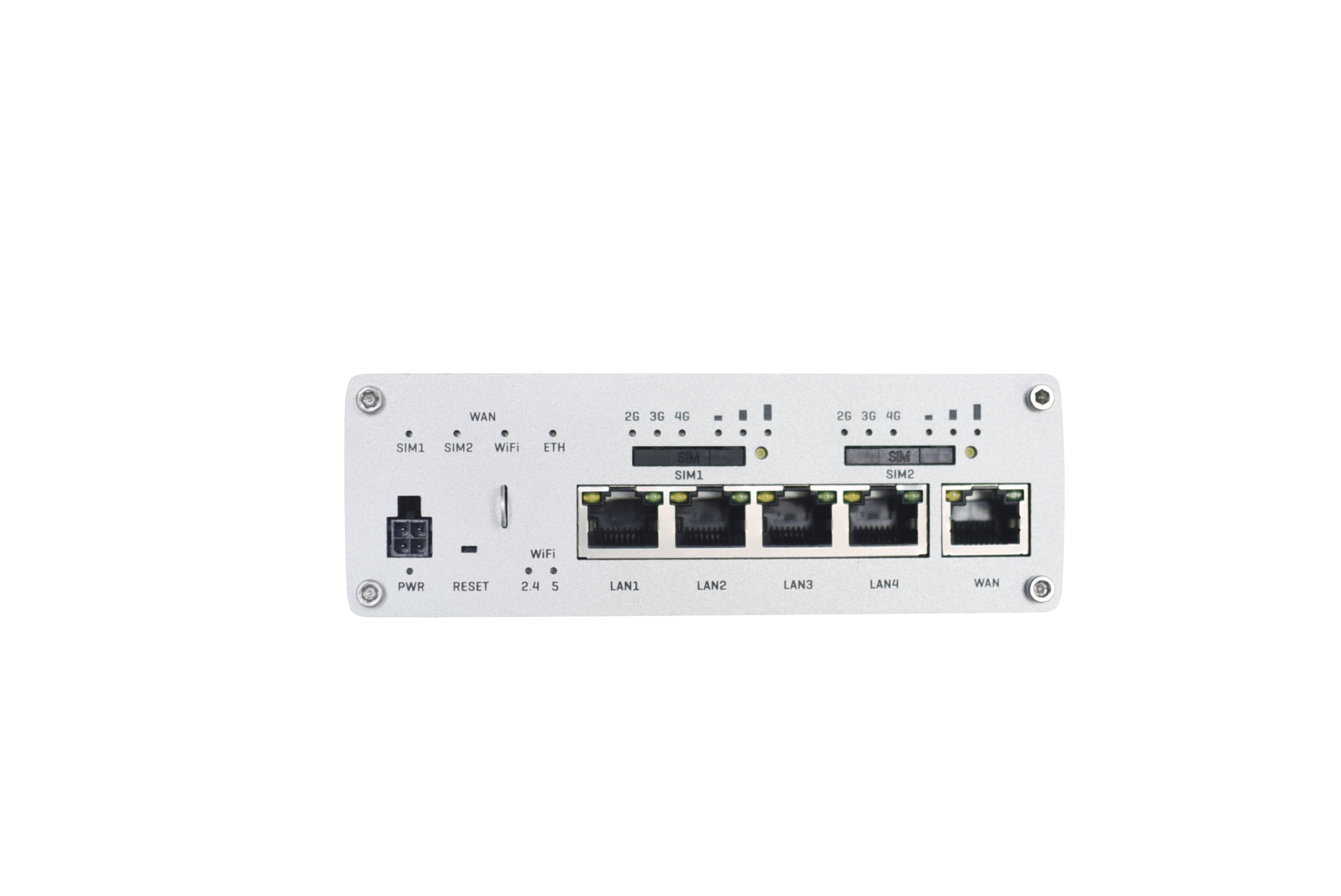

Ethernet 5 x RJ45 ports, 10/100/1000 Mbps
I/O’s 1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs 4 x connection status LEDs, 6 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1 x Power LED, 2 x 2.4G and 5G Wi-Fi LEDs
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders
Power 1 x 4-pin power connector

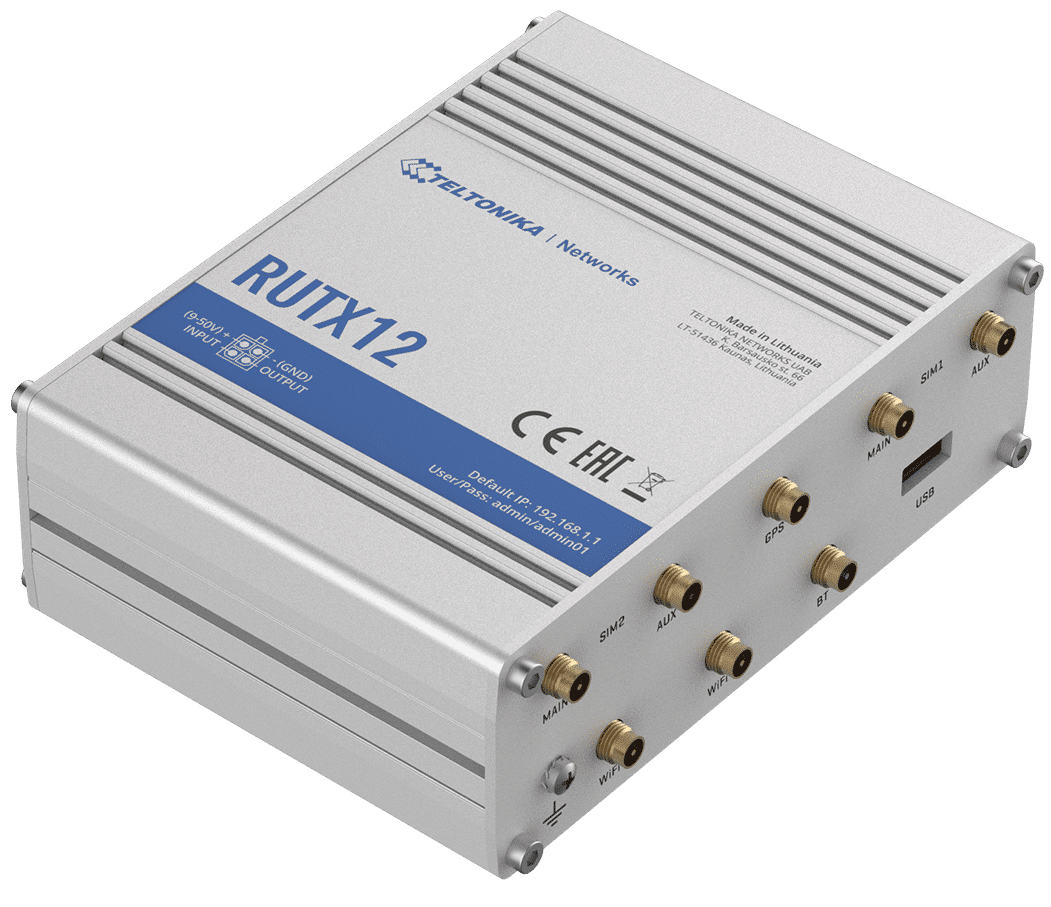

Antennas 4 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNNS
USB 1 x USB A port for external devices
Reset Reboot/User default reset/Factory reset button
Other 1 x Grounding screw
PHYSICAL SPECIFICATION
Casing material Full aluminium housing
Dimensions (W x H x D) 132 x 44.2 x 95.1 mm
Weight 540 g
Mounting options DIN rail, wall mount, flat surface (all require additional kit)
OPERATING ENVIRONMENT
Operating temperature -40 °C to 75 °C
Operating humidity 10% to 90% non-condensing
Ingress Protection Rating IP30
REGULATORY & TYPE APPROVALS
Regulatory CE, UKCA, EAC, UCRF, CITC, ANRT, ICASA, NOM, Anatel, RCM, SIRIM, NTC, NBTC, CB, E-mark
EMC EMISSIONS & IMMUNITY
Standards EN 55032:2015, EN 55035:2017, EN IEC 61000-3-2:2019, EN 61000-3-3:2013 + A1:2019, EN 301 489-1
.2.3, EN 301 489-3 V2.1.1, EN 301 489-17
.2.4, EN 301 489-19 V2.1.1, Draft EN 301 489-52
.1.0
ESD EN 61000-4-2:2009
Radiated Immunity EN IEC 61000-4-3:2006 + A1:2008 + A2:2010
EFT EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port) EN 61000-4-5:2014 + A1:2017
CS EN 61000-4-6:2014
DIP EN 61000-4-11:2004 + A1:2017
RF
Standards EN 300 328
.2.2, EN 300 440
.2.1, EN 301 893 V2.1.1, EN 301 908-1
.1.1, EN 301 908-2
.1.1, EN 301 908-13
.1.1, EN 303 413 V1.1.1
SAFETY
Standards CE: EN IEC 62368-1:2020 + A11:2020, RCM: AS/NZS 62368.1:2018, CB: IEC 62368-1:2018
T

Based on 0 reviews

0.0 overall
0
0
0
0
0

Be the first to review “Teltonika RUTX12 Dual LTE CAT6 WiFi Router”

There are no reviews yet.

Related products
