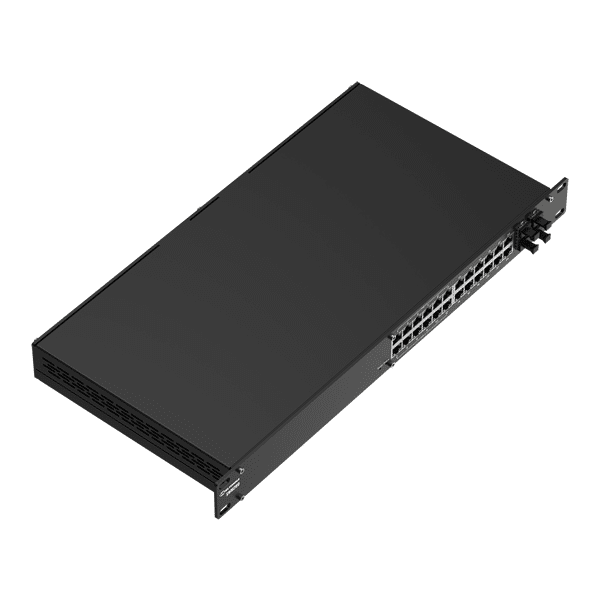

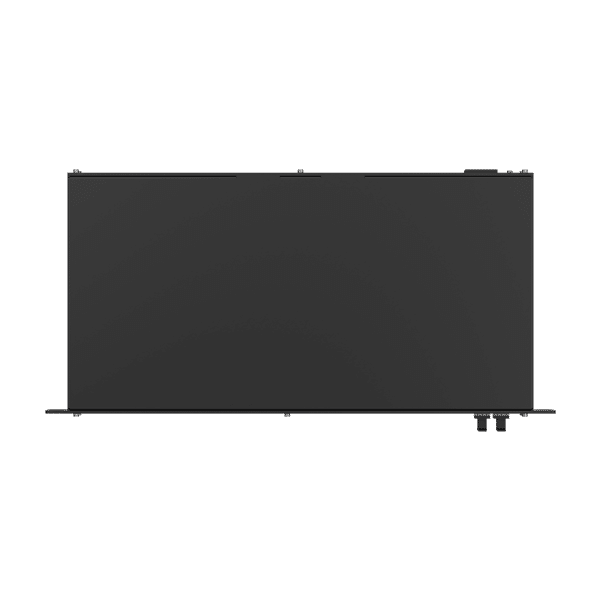

Teltonika SWM280 PoE+ 24 Port Managed Switch (12 x POE+, 12 x GB Ethernet)
The Teltonika SWM280 is a high-performance, cloud-enabled managed switch with 24 Gigabit Ethernet ports, 12 PoE+ outputs, and 4 SFP slots. With advanced L2+ and L3 features, industrial protocol support, and a total PoE power budget of 300 W, it’s the perfect backbone for enterprise and industrial networks that demand reliability, security, and flexibility.
- 24 Gigabit ports with 4 SFP uplinks for high-performance networking
- 12 PoE+ ports delivering up to 30 W per port, 300 W total power budget
- Advanced L2+ and L3 features including VLAN, QoS, and static routing
- Industrial protocol support (Profinet, EtherNet/IP, MRP, SNMP)
- RMS cloud management for remote monitoring, updates, and configuration
£199.00 Excl VAT
Teltonika Networks SWM280 – 24-Port L2+ Managed PoE+ Switch with 4 SFP Ports (300W PoE Budget)
The SWM280 from Teltonika Networks is a powerful L2+ managed switch with L3 capabilities, designed to elevate network control in enterprise, commercial, and industrial deployments. Built for performance and flexibility, it combines 12 PoE+ ports, 12 Gigabit Ethernet ports, and 4 SFP uplinks to provide seamless connectivity for demanding environments.
With PoE+ (IEEE 802.3af/at) delivering up to 30 W per port and a total budget of 300 W, the SWM280 powers a wide range of devices such as access points, IP cameras, and industrial gateways—all through a single rack mountable switch.
SWM280 – Key Features
-
High-Performance Switching
- 24 × Gigabit Ethernet ports (10/100/1000 Mbps)
- 4 × SFP fiber uplinks
- Non-blocking switching capacity: 56 Gbps
- Forwarding rate: 83.33 Mpps
- Jumbo frame support up to 10,000 bytes
-
PoE+ Power Delivery
- 12 × PoE+ ports (802.3af/at, up to 30 W per port)
- Total PoE power budget: 300 W
- Intelligent PoE management with per-port control and reboot
-
Advanced Management & Security
- VLAN (802.1Q), STP/RSTP, port isolation, loop protection
- QoS with port, DSCP, 802.1p, and TOS priority
- Bandwidth control, storm control, port mirroring
- Authentication: RADIUS, TACACS+, PAM, 802.1x
- MAC filtering and port-based access control
-
Industrial Protocols
- Profinet Class B (optional)
- EtherNet/IP, LLDP, MRP client & manager roles
- SNMP v2/v3 support
-
Diagnostics & Tools
- Cable diagnostics, ping, traceroute, nslookup
- Remote PoE restart on selected ports
- System & Management
- CPU: Realtek 500 MHz, 128 MB DDR3 RAM, 16 MB Flash
- Operating system: TSWOS (OpenWrt-based Linux)
- RMS-compatible: remote monitoring, firmware upgrades, bulk configuration
- Web UI, CLI, and Teltonika Web API (beta) support
-
Build & Power
- Power input: 100–240 VAC (C14 connector)
- Power consumption: 7.5 W (idle), 325 W max
- Rugged anodised aluminium casing (IP30)
- Rack-mountable (1U, kit included)
Technical Specifications
- Dimensions: 483 × 44 × 234 mm
- Weight: ~1.8 kg
- Operating Temperature: 0 °C to +50 °C
- Certifications: CE, UKCA, CB, RCM, FCC, IC
Applications
The SWM280 is ideal for:
- Enterprise networks – powering APs, VoIP phones, and surveillance systems.
- Industrial automation – with Profinet, EtherNet/IP, and MRP support.
- CCTV deployments – powering multiple cameras with PoE+.
- IoT & edge networks – managing Teltonika routers, gateways, and connected devices.
Package Contents
- 1 × Teltonika SWM280 Managed Switch
- 1 × Rack-mounting kit
- 1 × Quick Start Guide
Related Products – SWM28 Series
Alongside the SWM280, Teltonika Networks also introduced two more managed switches:
- SWM281 – Compact 8-port PoE+ managed switch with 2 SFP ports, ideal for smaller networks.
- SWM282 – 48-port managed switch with extended capacity for large enterprise deployments.
Specification Table – Teltonika Networks SWM280
| Category | Specification |
|---|---|
| Hardware | |
| CPU | Realtek single-core, 500 MHz (MIPS-4KEc) |
| RAM | 128 MB DDR3 |
| Flash Storage | 16 MB serial flash |
| Casing | Anodised aluminium housing and panels |
| Dimensions | 483 × 44 × 234 mm (1U rackmount) |
| Weight | ~1.8 kg |
| Mounting Options | Rack mounting kit included |
| LEDs | 1 × Power, 48 × Ethernet status, 1 × System, 4 × SFP status |
| Reset | Software reset button |
| Grounding | 1 × Grounding screw |
| Ethernet & Ports | |
| Ethernet Ports | 24 × RJ45 Gigabit Ethernet (10/100/1000 Mbps, auto MDI/MDIX) |
| SFP Ports | 4 × Gigabit SFP uplinks |
| PoE+ Ports | 12 × IEEE 802.3af/at (Type 1 & Type 2), up to 30 W per port |
| Total PoE Budget | 300 W |
| Switching Bandwidth | 56 Gbps (non-blocking) |
| Forwarding Rate | 83.33 Mpps |
| Packet Buffer | 512 KB |
| MAC Address Table | 8K entries |
| Jumbo Frame Support | Up to 10,000 bytes |
| Network & Protocols | |
| Layer 2 Features | VLAN (802.1Q), STP/RSTP, Loop protection, Forwarding table |
| Layer 3 Features | Static IPv4/IPv6 routing, DHCPv6 client, Static IPv6 |
| Routing Protocols | BGP, OSPFv2, RIP v1/v2, EIGRP |
| QoS | Port priority, DSCP, 802.1p, TOS |
| Scheduling Methods | SP / WFQ / WRR |
| DHCP | Server, client, static leases (MAC with wildcards) |
| Industrial Protocols | Profinet Class B (optional), EtherNet/IP, LLDP, MRP client/manager |
| Management Protocols | SNMP v2/v3, 802.1x (port-based access control), 802.1p, Teltonika Web API (beta) |
| Diagnostics Tools | Cable diagnostic, ping, traceroute, nslookup |
| Security | |
| Authentication | PAM (preshared key), RADIUS, TACACS+ |
| Access Control | Port-based 802.1x (client/server), MAC filtering |
| VLAN Security | Port-based VLAN separation |
| Software & Management | |
| Operating System | TSWOS (OpenWrt-based Linux OS) |
| Management Interfaces | Web UI, CLI, Teltonika RMS, API |
| Firmware Updates | Local (file), FOTA, RMS remote updates |
| Configuration | Profiles, backup/restore, RMS multi-device management |
| Development Support | SDK, Lua, Busybox shell, C/C++ |
| Power | |
| Power Connector | IEC C14 |
| Input Voltage Range | 100–240 VAC, 50/60 Hz |
| Power Consumption | Idle: 7.5 W / Max: 325 W / PoE Max: 300 W |
| Environmental | |
| Operating Temperature | 0 °C to +50 °C |
| Operating Humidity | 10–90% (non-condensing) |
| Ingress Protection | IP30 |
| Certifications | CE, UKCA, CB, RCM, FCC, IC |
| Package Contents | |
| Included | SWM280 Switch, Quick Start Guide, Rack Mount Kit, Packaging Box |
- SWM280 L2+ managed switch
- QSG (Quick Start Guide)
- Packaging box
